Inserting Cards

A SIM card is needed to operate the internal modem when the
receiver is used in Direct IP, NTRIP or CSD mode.

You may also want the receiver to record GNSS raw data on
an SD card rather than in its internal memory.
In either case, insert the card through the procedure
described below:

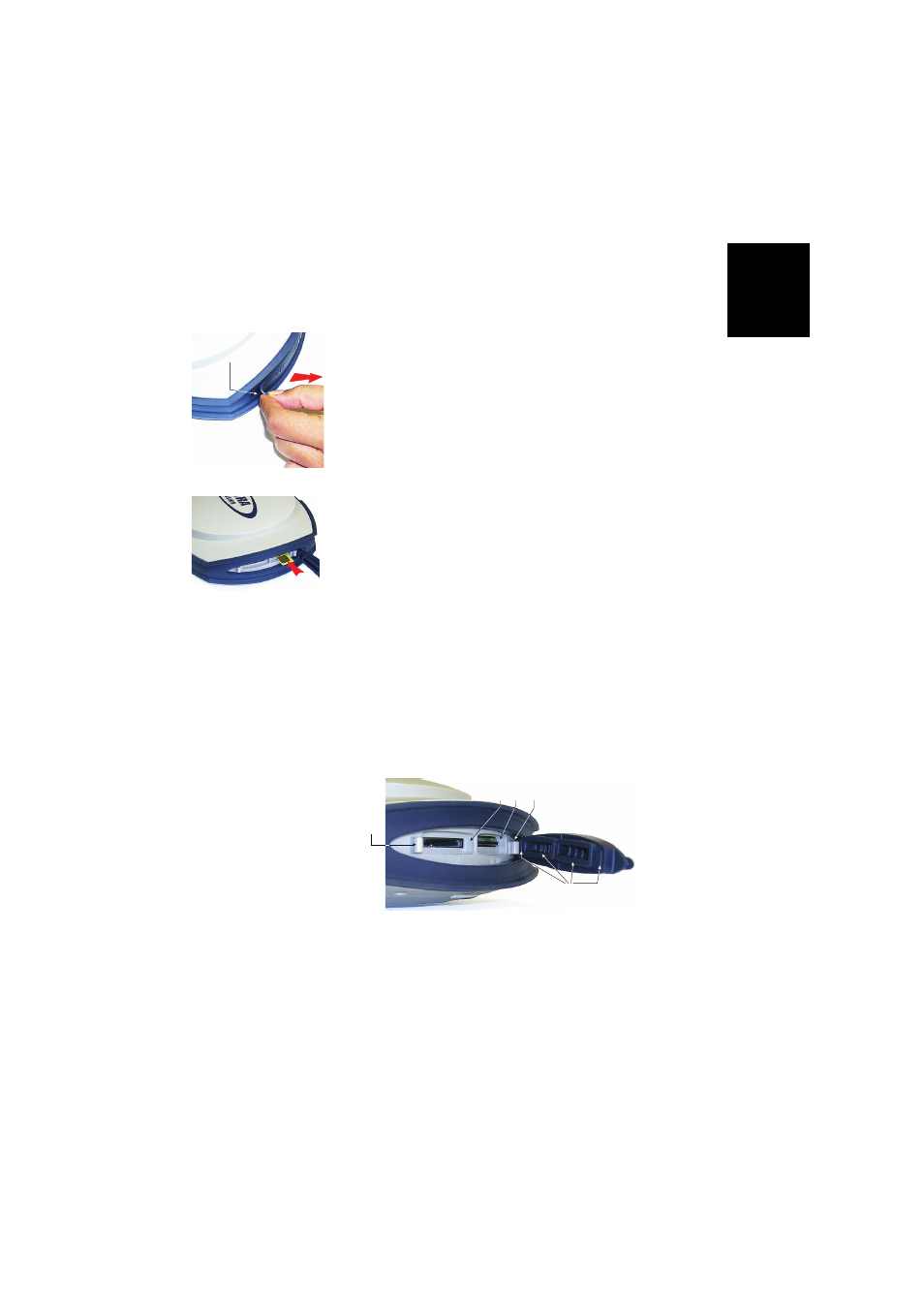

1. Open the rubber flap with the “SD” and “SIM” markings

(on the right), pulling its tongue gently to the right. The
tongue is that small part protruding from one end of the
flap ([15]).

2. Turn the card upside down (label side oriented downward)

(see SIM card in [16]), then push it in until you hear a
click.

WARNING

- PLEASE MAKE SURE YOU INSERT THE SIM

CARD INTO THE SIM CARD HOLDER AND NOT
ELSEWHERE.

3. Put the rubber flap back in place. This is a five-step

operation to be observed with care. The inner side of the
flap is fitted with molded parts (see [17]) that are
intended to fit into the card slots. Starting from the flap
hinge, these should be inserted successively into:

–

The block the closest to the hinge ([18])

–

The SIM card holder ([19])

–

The SD card holder ([20])

–

The second block ([21])

–

Then run a thumb along the flap, starting from the
hinge and all the way to the other end, exerting
pressure as many times as necessary to make sure the
flap is thoroughly inserted.

[15]

[16]

[17]

[18]

[19]

[20]

[21]
