Step 2: Install the SDI source equipment. Step 0:
Once the steps above have been completed, the hardware installation procedures are
complete.
2.3 Video Capture Card Installation
The HDC-502E video capture card has a PCIe x1 interface. To install the HDC-502E,
please follow the steps below:
Step 1: Align the PCIe edge connector on the bottom of the video capture card with the
PCIe slot on the system motherboard (Figure 2-1).
Step 2: Gently insert the video capture card into the PCIe slot.
Step 3: Push down gently on the video card to make sure it is firmly inserted into the
PCIe slot.

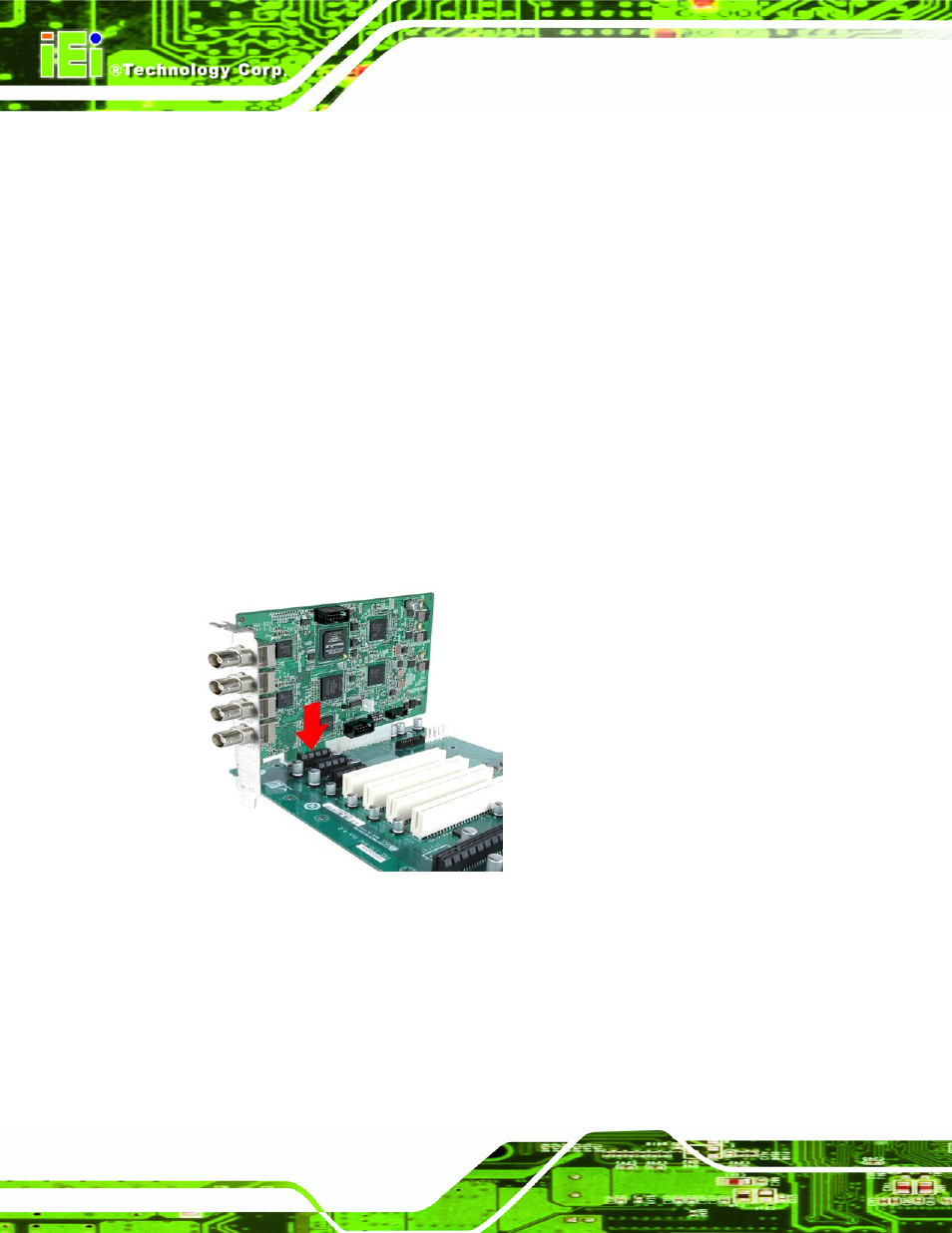

Figure 2-1: HDC-502E Installation
Step 4: Insert a retention screw through the top of the video capture card external
bracket into the chassis to secure the card to the chassis. Step 0:
