SAILORPC-12A Panel PC
Page 86

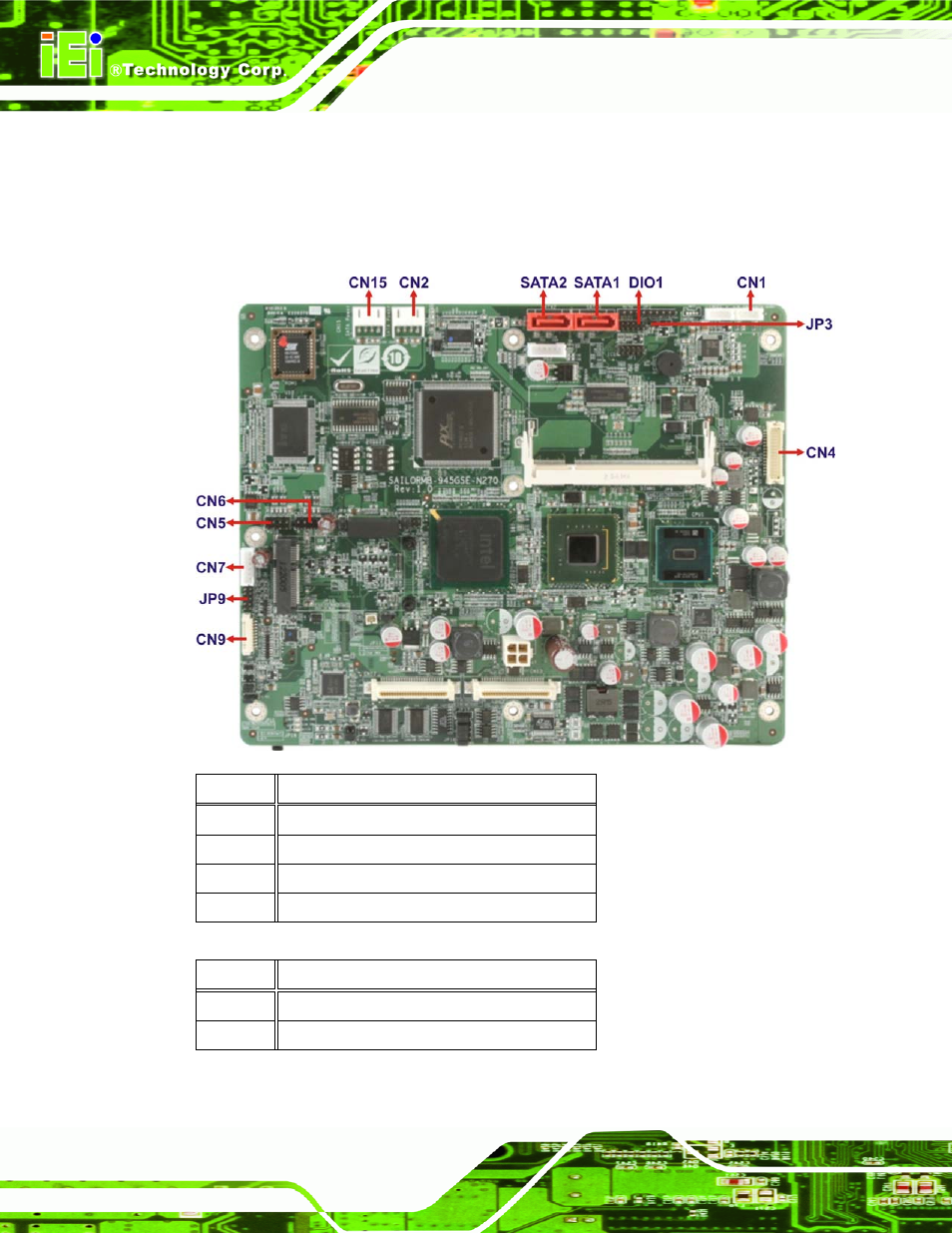

A.1 Peripheral Interface Connectors
The SAILORPC-12A panel PC motherboard comes with a number of peripheral interface
connectors and configuration jumpers. The locations and pinouts for these connectors are
listed below:
PIN NO. DESCRIPTION
1 SPEAKER _L
2 GND
3 GND
4 SPEAKER_R
Table e A-1: Speaker Connector (CN1) Pinouts
PIN NO. DESCRIPTION
1 GND
2 PWRBTSW-
Table e A-2: Power Button Connector (JP3) Pinouts
