SAILORPC-12A Panel PC

Page 25

3.5.3 CAN-bus & Audio Connector

Connects to a CAN-bus network and audio device.

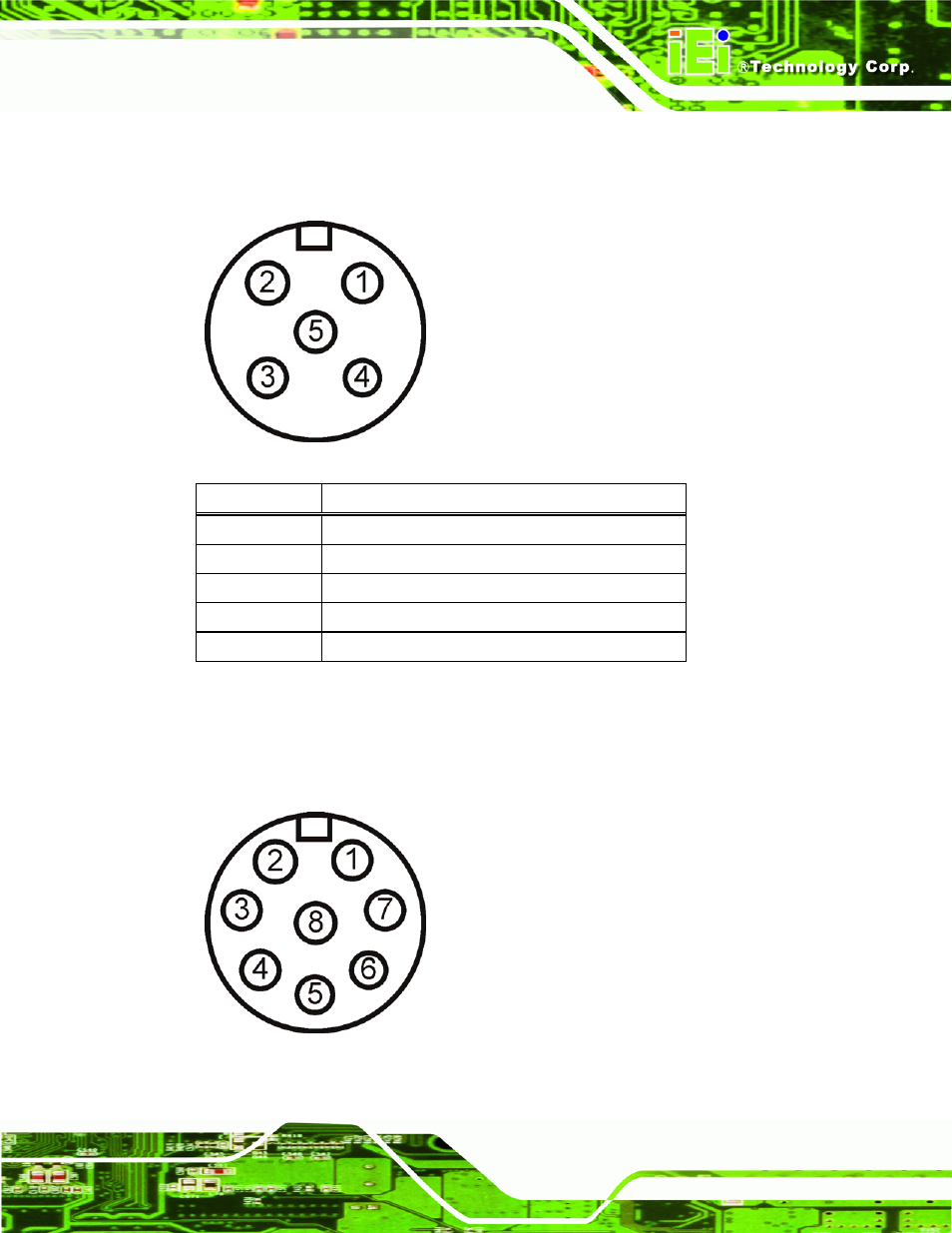

Figure 3-13: CAN-bus & Audio Connector

Pin

Description

1

Speaker right

2

CAN+

3

CAN-

4

Speaker left

5

Speaker ground

Table 3-10: CAN-bus & Audio Connector Pinouts

3.5.4 USB Port Connector

Connects to USB devices.

Figure 3-14: USB Port
