SAILORPC-12A Panel PC

Page 26

Pin

Description

Pin

Description

1

Power

2

Power

3

Data1-

4

Data1+

5

Ground

6

Data2+

7

Data2-

8

Ground

Table 3-11: USB Port Pinouts

3.5.5 Power Connector

Connects to a power source.

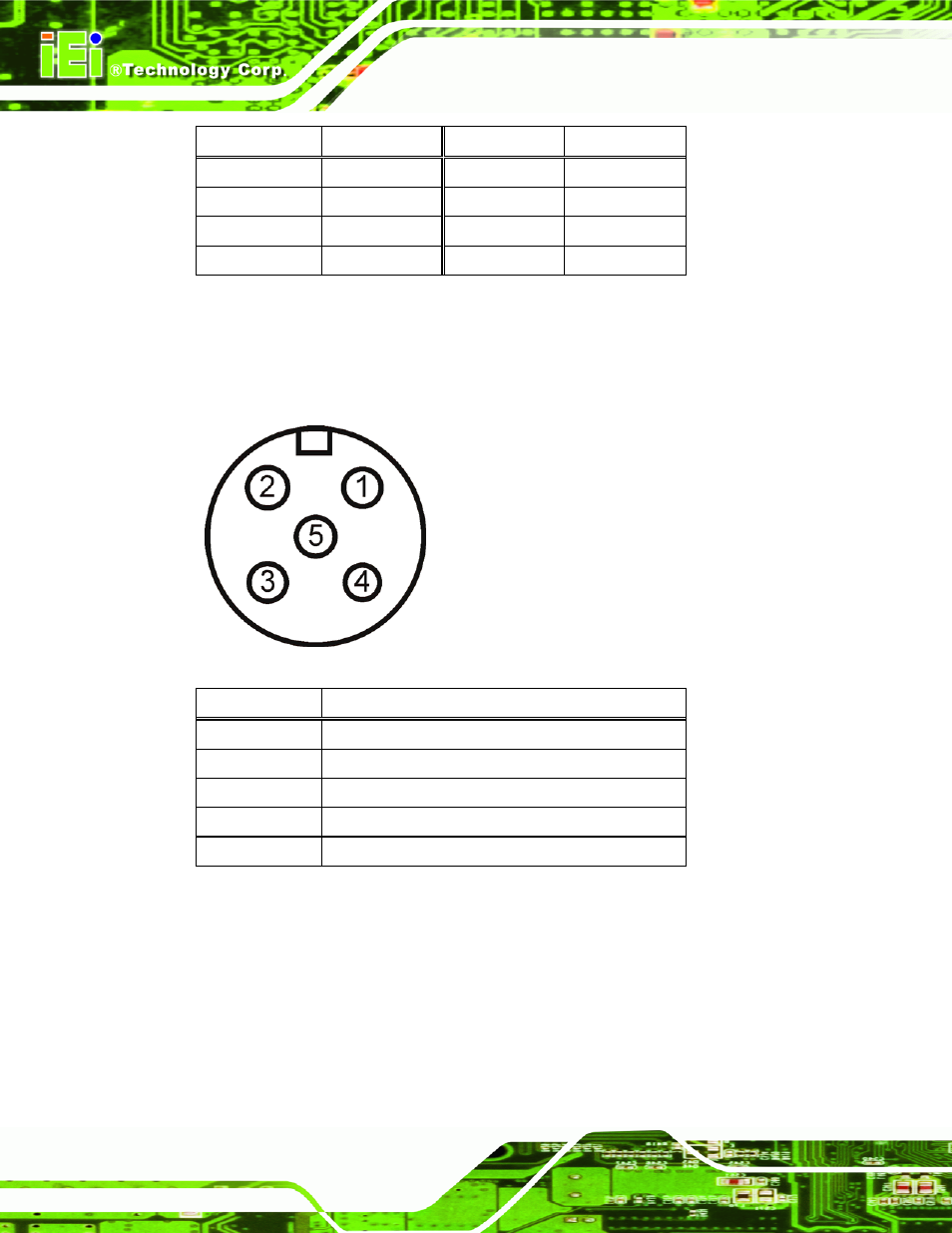

Figure 3-15: Power Connector

Pin

Description

1

Power

2

Power

3

Ground

4

Ground

5

Ground

Table 3-12: Power Connector Pinouts
