Connectors (#7) – WolfVision EYE-14 User Manual User Manual
Page 5

4

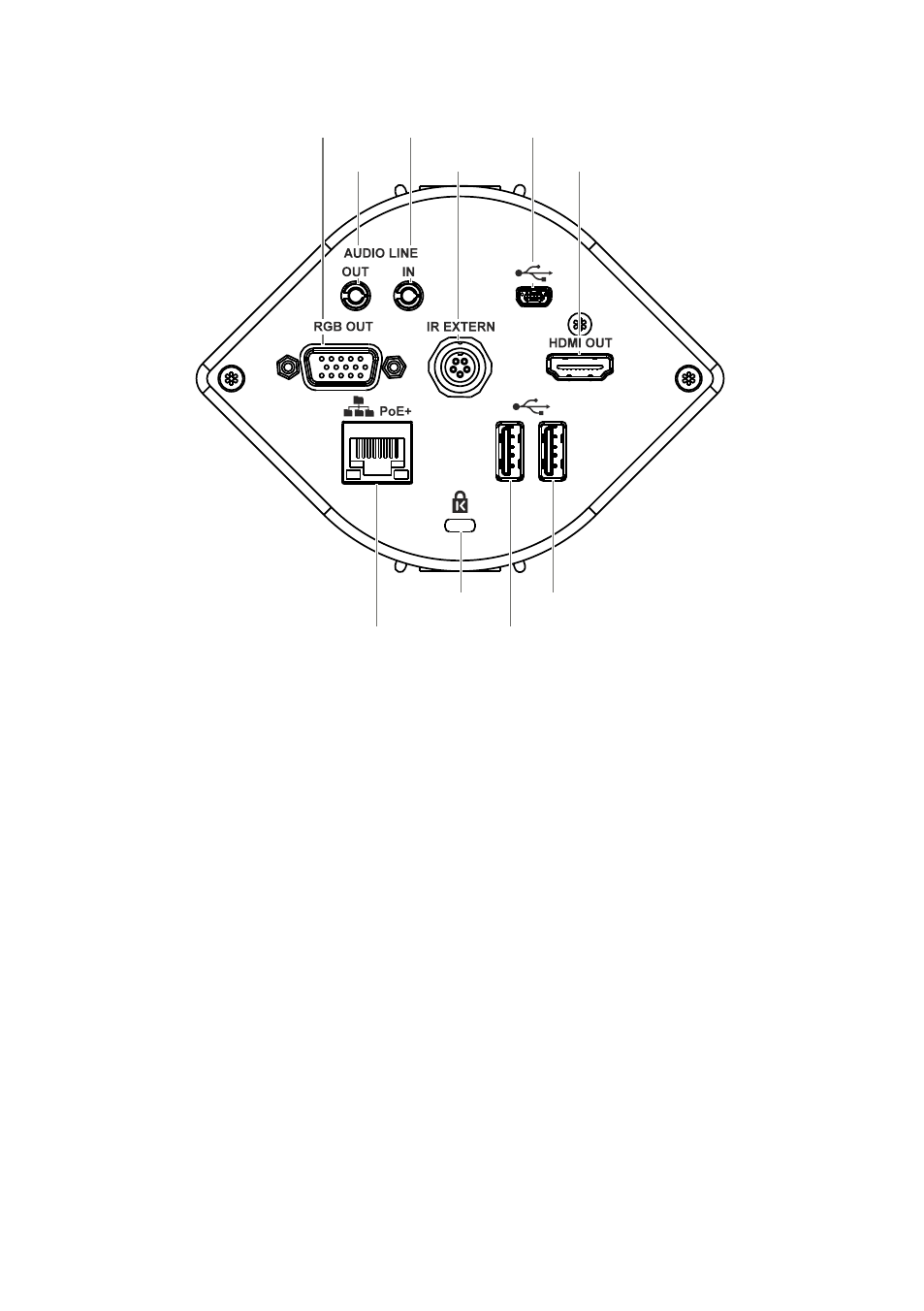

Connectors (#7)
#9 RGB OUTput (15pin) (see page 16)
#10 AUDIO Line Out
(see page 7)
#11 AUDIO Line In
(see page 7)
#12
#13 USB port to Computer (to host) (see pages 18 and 19)
#14 HDMI OUTput (see page 16)
#15 LAN port
(see pages 14, 18 and 19)
#16
#17
#18
for audio signals
for audio signals
IR-EXTERN input for additional IR-sensor (see page 21)
10/100 BASE T/TX
Kensington Lock® (see page 20)
USB port to USB storage device (to client) (see pages 18)
USB port to WLAN dongle (to client) (optional, see page 21)
USB ports #17 and #18 are interchangeable.
#9
#10
#11
#12
#13
#14
#15
#16
#17
#18
