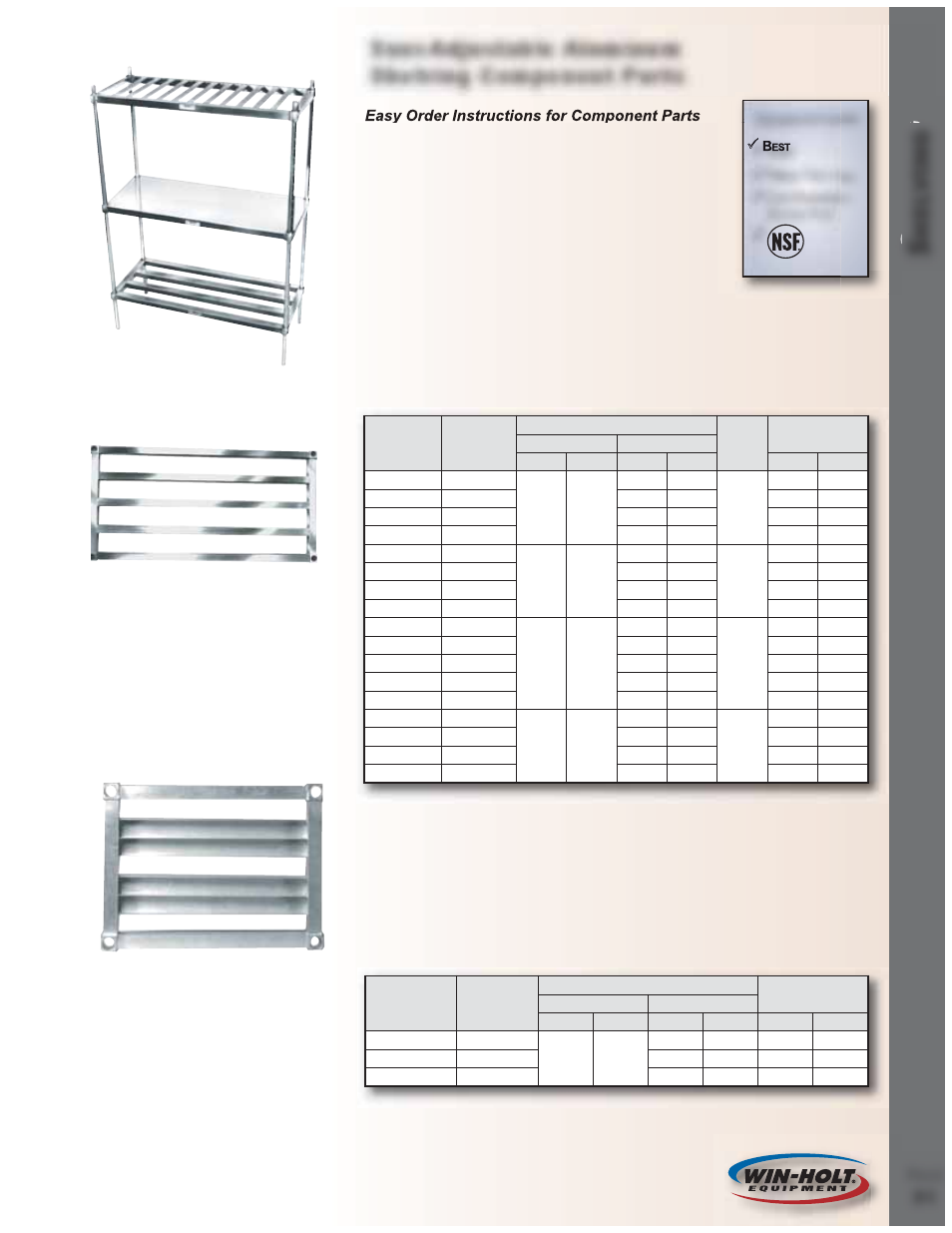

Channel Shelving
Constructed of all welded, heavy duty, sanitary aluminum 4" x 1½"
E-channels inside a frame of aluminum tubing.
Shelf Capacity 2,100 lb (952 kg). Maximum evenly distributed static load
capacity.
Easy Order Instructions for Component Parts
To order a 4 foot section with three Tubular shelves,
20" wide and 68" high, you need the following:
(3) -SAS2048 (Tubular Shelves 20” x 48”)
(4) -SASP-68 (Poles 68” high)
Model Number
Ordering
Number
Overall Dimensions Approx.
Ship Weight Width Length
(in) (mm) (in) (mm) (lb) (kg)
SASCH-2436 204409
24 610
36 914 10 5
SASCH-2448 204433 48 1,219 13 6
SASCH-2460 207191 60 1,524 15 7
E-Channel Shelving
SASCH Series
Tubular Shelving
SAS Series
Model
Number
Ordering
Number
Overall Dimensions
# of
Cross
Tubes
Approx.
Ship Wt Width Length
(in) (mm) (in) (mm) (lb) (kg)
SAS1536 106930
15 381
36 914
3
5 2
SAS1548 106948 48 1,219 8 4
SAS1560 106956 60 1,524 9 4
SAS1572 106964 72 1,829 11 5
SAS1836 106981
18 457
36 914
4
8 4
SAS1848 107001 48 1,219 10 5
SAS1860 107019 60 1,524 12 5
SAS1872 107027 72 1,829 14 6
SAS2036 107060
20 508
36 914
4
8 4
SAS2048 107086 48 1,219 10 5
SAS2060 107094 60 1,524 12 5
SAS2072 107115 72 1,829 14 6
SAS2096 107123 96 2,438 15 7
SAS2436 107140
24 610
36 914
5
10 5
SAS2448 107166 48 1,219 13 6
SAS2460 107174 60 1,524 15 7
SAS2472 107182 72 1,829 18 8
Tubular Shelving
Constructed of all welded, heavy duty, sanitary aluminum 1¾" x 1½" cross
tubes for improved air circulation and strength.
Shelf Capacity 2,000 lb (907kg). Maximum evenly distributed static load
capacity.
Sani-Adjustable Aluminum
Shelving Component Parts
Freight Class: 150
Freight Class: 150
B EST
H EAVY D UTY U SE
L
IFE
W
ARRANTY
A GAINST R UST
