REMOVING THE HEAD

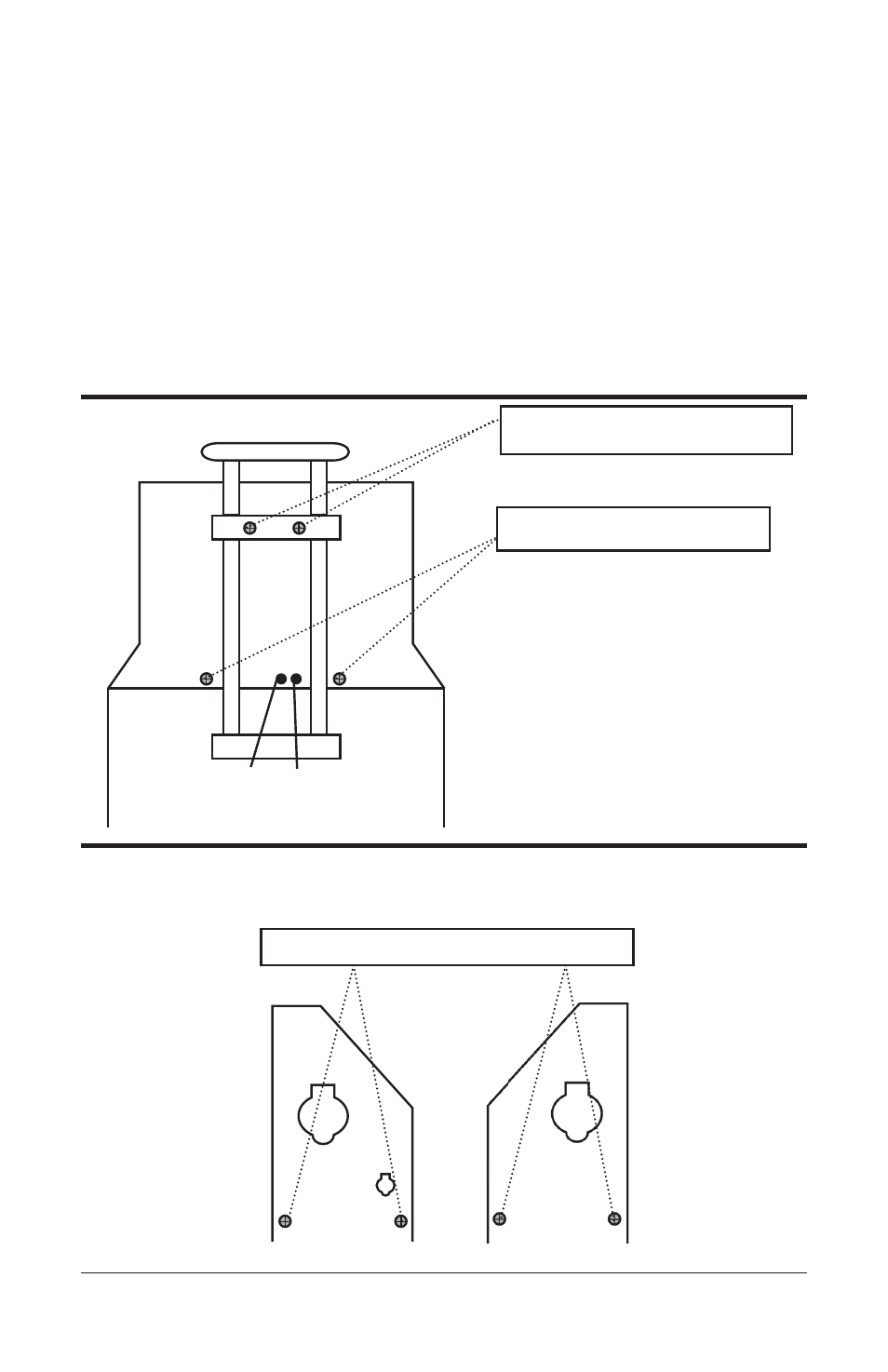

In the event your Deluxe Super MUTT ® should need service or repair, the Super
MUTT ® has been designed so that the “Head” which contains all the electro-
mechanical components can be easily removed to simplify and reduce the cost of
the packing and shipping process. You will need only a phillips head screwdriver
to remove the 8 screws that attach the head to the cart body. See the illustrations
below.
After removal of the eight screws, simply lift the head up from the cart body and
pull the battery cable up through the channel in the cart body. To reassemble,
feed the battery cables through the channel while lowering the head onto the cart
body and reinsert the eight screws.
BACK
LEFT SIDE / RIGHT SIDE
2 pieces 10-32 x 1 /
2
in. phillips
2 pieces 10-32 x 1 /
2
in. phillips
2 pieces 10 x 3 /
8
in. phillips
Air exhaust lines
