OPERATING INSTRUCTIONS
FOR AIR BRAKE CONTROLS
DANGER
WARNING!! BEFORE CONNECTING AIR TO TESTER PAN-
EL, BE SURE TO CHOCK ALL WHEELS ON TRAILER TO
PREVENT TRAILER FROM ROLLING. TRAILER CAN ROLL
AND CAUSE SERIOUS INJURY OR DEATH.
DO NOT CONNECT SHOP AIR UNTIL COMPLETING THE PRE-TEST
PROCEDURES STEPS 1 THROUGH 7 (PAGE 21). FAILURE TO FULLY
UNDERSTAND THESE WARNINGS CAN RESULT IN MINOR TO SERIOUS
INJURY AND POSSIBLY DEATH.

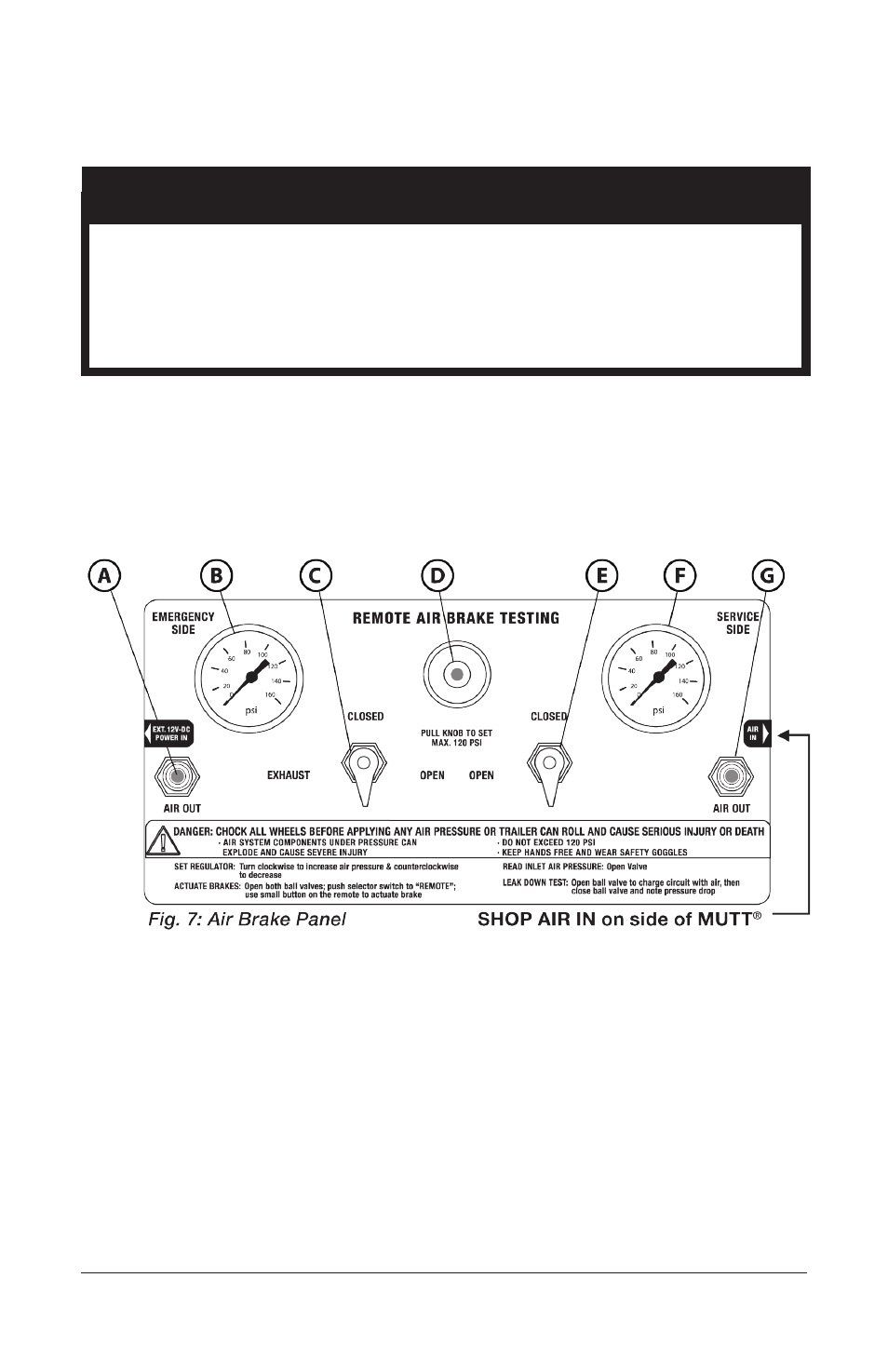

AIR PANEL (fig. 7)
A. Emergency Side – Air Out To Red Hose
B. Emergency Side – Gauge
C. Emergency Side – Ball Valve
D. Air Regulator – Knob
E. Service Side – Ball Valve
F. Service Side – Gauge
G. Service Side – Air Out To Blue Hose
