17 Elite Steam +03U221903 REV 2.1
1
2
4
5
6
9
10 12
13
14
11
3
7
8

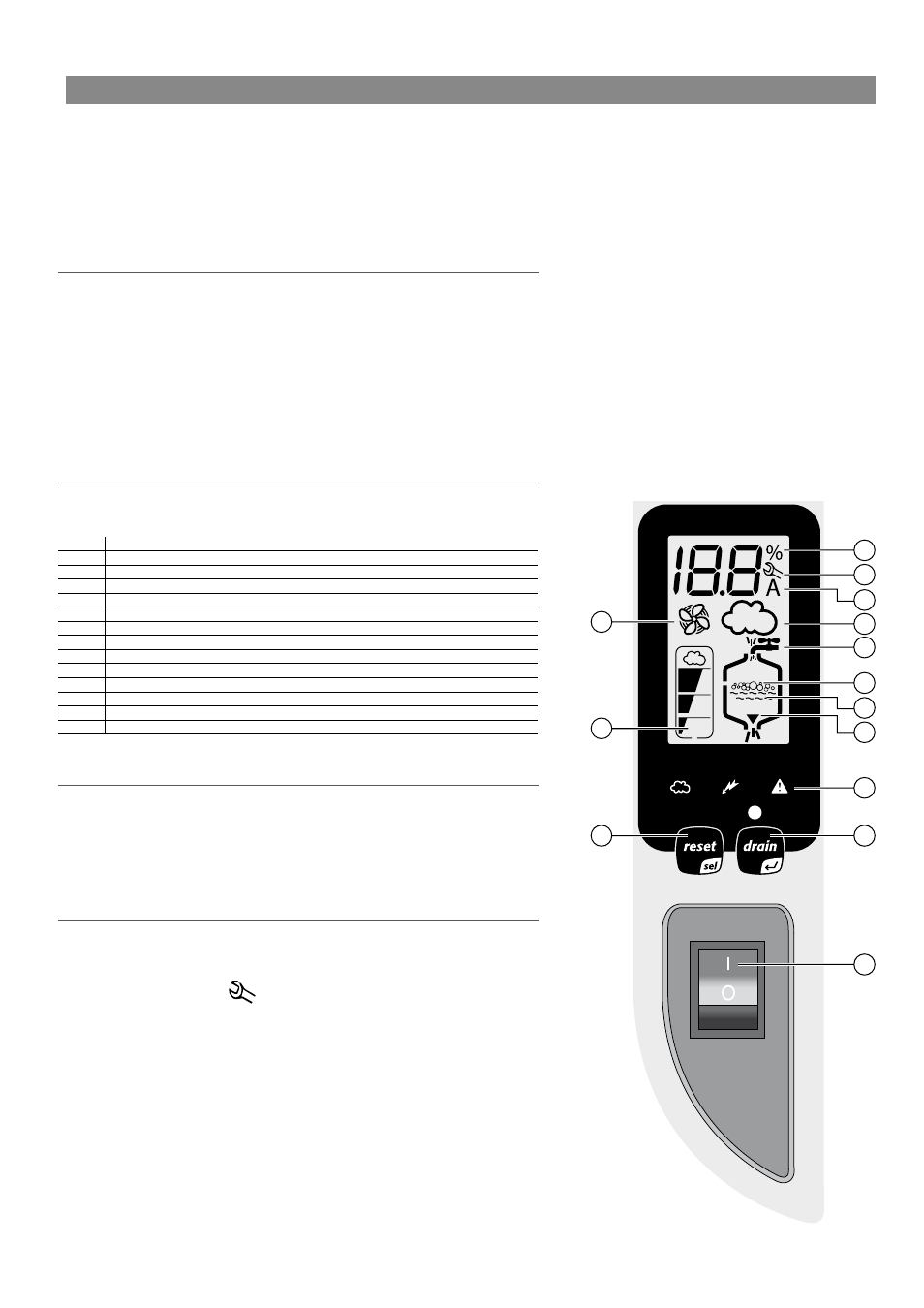

Fig. 4.a
IMPORTANT WARNINGS:
1. Before starting, check that the humidifier is in perfect condition, that there are no water
leaks and that the electrical parts are dry;
2. Do not connect power if the humidifier is damaged or even partially wet!
When installation is completed, flush the supply pipe for around 10 minutes by piping water directly into
the drain, without sending it into the humidifier; this will eliminate any scale or residues that may cause
foam when boiling.
4.1 Startup Checklist
Before starting the humidifier, the following should be checked:
• Water is connected, the line has been flushed, and external valves are open.
• Drain is connected, run to an open drain, and has a trap under the unit.
• Electricity is connected in accordance with instructions, local codes and data labels in the unit.
• The power fuses are installed and intact.
• All control wiring is done and tested.
• Airflow switch is wired to open on air flow loss.
• Hi-limit humidistat is wired to open on humidity rise above set point.
• Unit wires have been checked to make sure they and all connectors are tight from shipping.
• The steam hose(s) are run correctly with no sags or kinks and sloped properly according to the manual.
• Condensate hoses are run correctly with no sags or kinks and sloped properly according to the manual.
4.2 The Elite Steam Controller
The Elite Steam controller features a comprehensive information display that shows the
operation of the system at a glance:
1 Display is % of nominal capacity
2 Maintenance
3 Display is amperage (default)
4 Steam is being produced
5 Cylinder filling
6 Foaming
7 Water presence inside the cylinder
8 Cylinder draining
9 LEDs indicate: power (yellow), operation (green) and alarms (red)
10 Drain button for manual draining of cylinder and confirming parameter values
11 ON/OFF button
12 Reset button to reset alarms and access parameters
13 Level of output: 33%, 66%, 100%
14 Fan relay is activated
4.3 Starting Elite Steam
• Insure that the external power is turned on.
• Push the top part of the On/Off button so that the I part is in. The yellow Power
LED will be lit. The Elite Steam is now ready to operate.
The Elite Steam is now ready to operate.
• When there is a call for humidity, Elite Steam will close its power relays and send
power to the electrodes in the plastic steam generator. The green Operation
LED will light, indicating that operation has begun.
4.4 Starting with a new cylinder
When starting with a new cylinder, you should activate the cylinder cleaning function as follows:
1. Switch Elite Steam off.
n o k c a b m a e t S e ti l E h c ti w s d n a , ” n i a r d “ d n a ” t e s e r “ s n o tt u b h t o b d l o h d n a s s e r P . 2
When the wrench blinks then release the two buttons.
3. Press and hold "reset" until display shows 04. .
WARNING: DO NOT confirm any value higher than 04. In case, press “reset” until the
4. Press “drain” (minimum 1 second): the cleaning starts.
During the cleaning, the electrodes are powered and water is filled in until it touches the
high-level sensor or the phase current equals 20A, whichever occurs first. After either
(the drain valve and the drain tempering valve are activated for 3 minutes). Warming the
filling water helps washing out any mold release or dirt. General Filters, Inc. recommends to
duty. When starting the unit with a new or empty cylinder, it may take a significant amount of time (hours)
for the unit to build up enough mineral concentration to reach rated capacity. This time can be shortened
by the addition of Alka-Seltzer through the steam outlet on top of the cylinder.
4. START -UP
display goes back to the normal operating mode and restart from step.
of the events is detected, the boiler is fully discharged with the electrodes un-powered
do two cleanings when starting a new boiler. After the cleaning ends, the humidifier starts the regular
