RED-1 INstAllAtION
Surface Mount Installation
The RED-1 surface mounts to most walls and has a wide variety of mounting holes that accommodate standard US and International
back boxes.
Use a screw driver or other suitable tool to engage the latch at the bottom of the RED-1 to detach the back enclosure. When installing
the RED-1 using the RJ45 connector, guide the Ethernet cable through the rear opening before attaching the RED-1 to the wall. Connect the
RJ45 and snap the front enclosure into the retention holes. When installing the RED-1 using the IDC, use a drill bit to create a hole
in the top, side, or rear of the back enclosure along the indentations. Remove the Ethernet cable jacket and shielding.

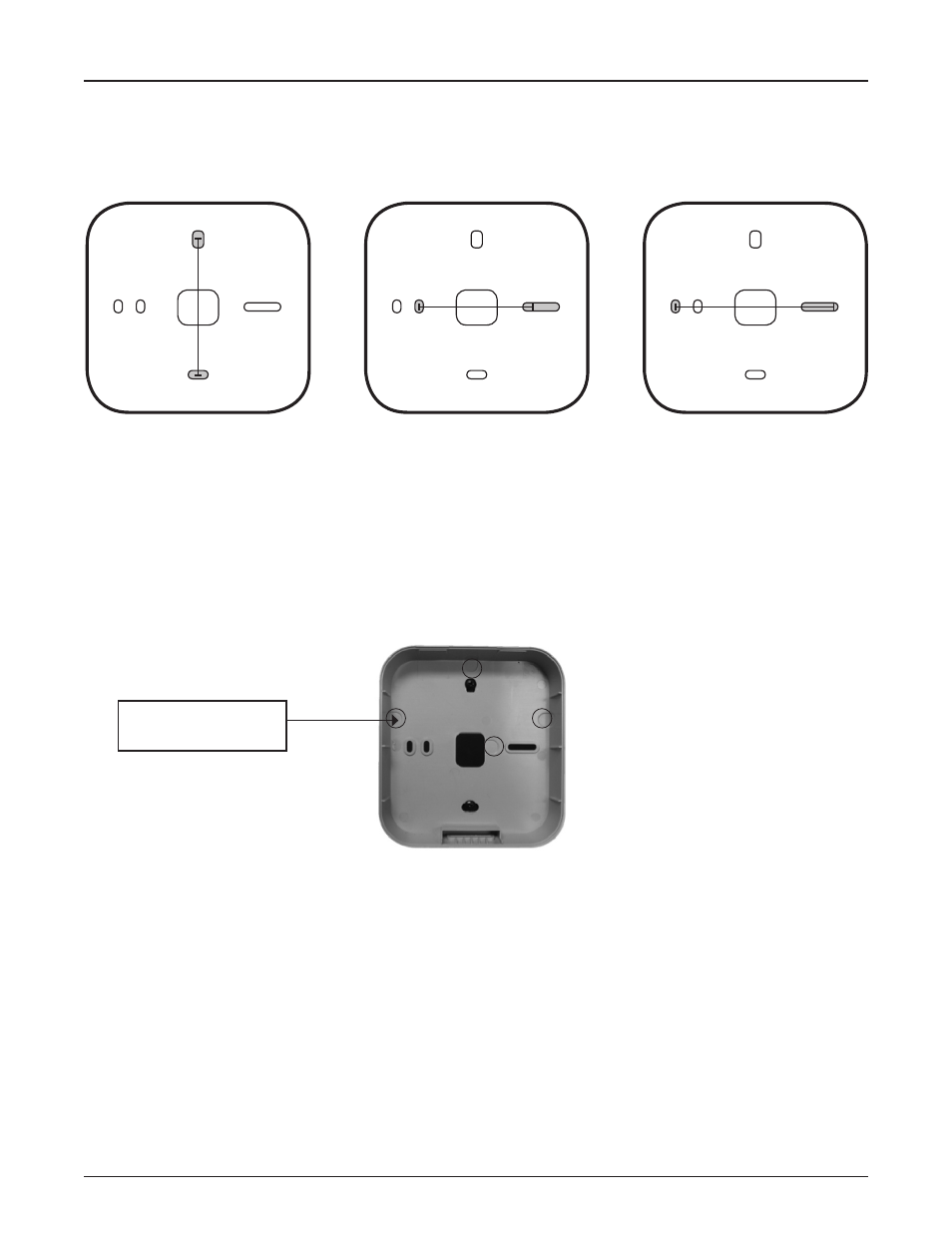

84mm 3.3"
USA, Japan, Australia EUR
including Germany, Sweden,
UK, Netherland
60mm
2.36"
Italy
84mm
3.3"
Indentations
Wire here for use with IDC
