5

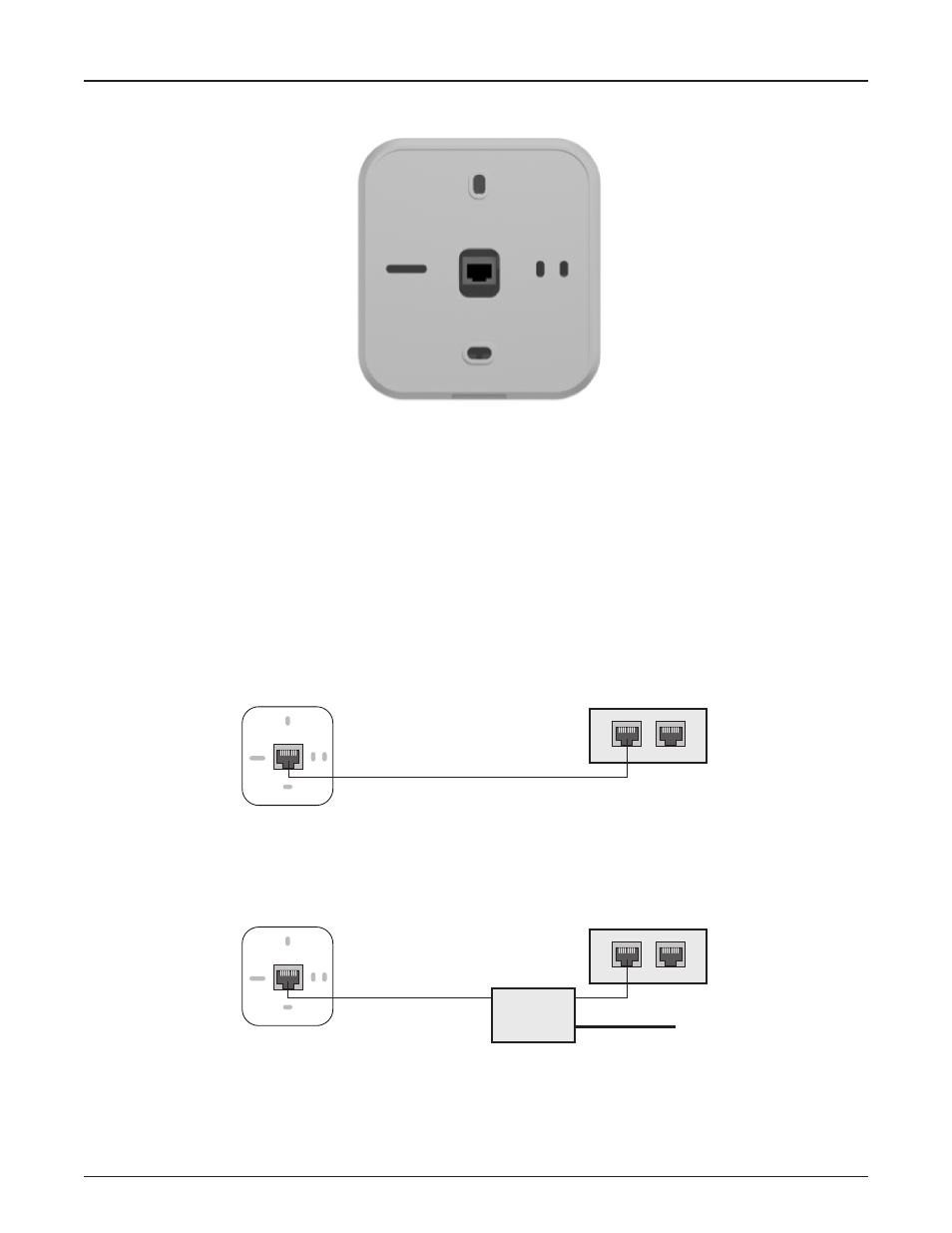

RED-1 bAck pANEl
Connectors
Two Ethernet connectors—one rear-facing RJ45 and one top-facing insulation displacement connector (IDC)—are provided for
connecting to the network. Only one connector may be used. The RJ45 and IDC utilize unshielded twisted pair (UTP) wiring to connect
to an Audia or Nexia system. This connection is made to the Ethernet port of an Audia or Nexia unit, either directly (single station)
or via a network switch, and carries control data over Ethernet.
The RED-1 is powered using IEEE 802.3-2008 Power over Ethernet protocol as Class 1 devices. Either a PoE-capable network switch
or a PoE injector is required to power the device; there are no other provisions for power inlet.
RED-1
Ethernet switch
with PoE
RED-1
Ethernet switch
without PoE
AC Power
PoE
injector
