10
RED-1 INstAllAtION
Flush Mount Installation
The RED-1F may be flush mounted using the retro-fit plate (provided with the product) or a Raco™ 254 box (purchased from an electrical
distributor). To install the RED-1F, a hole must be cut in the wall to accommodate the Raco™ 254 back-box or to use the retro-fit plate. See
the figures below.

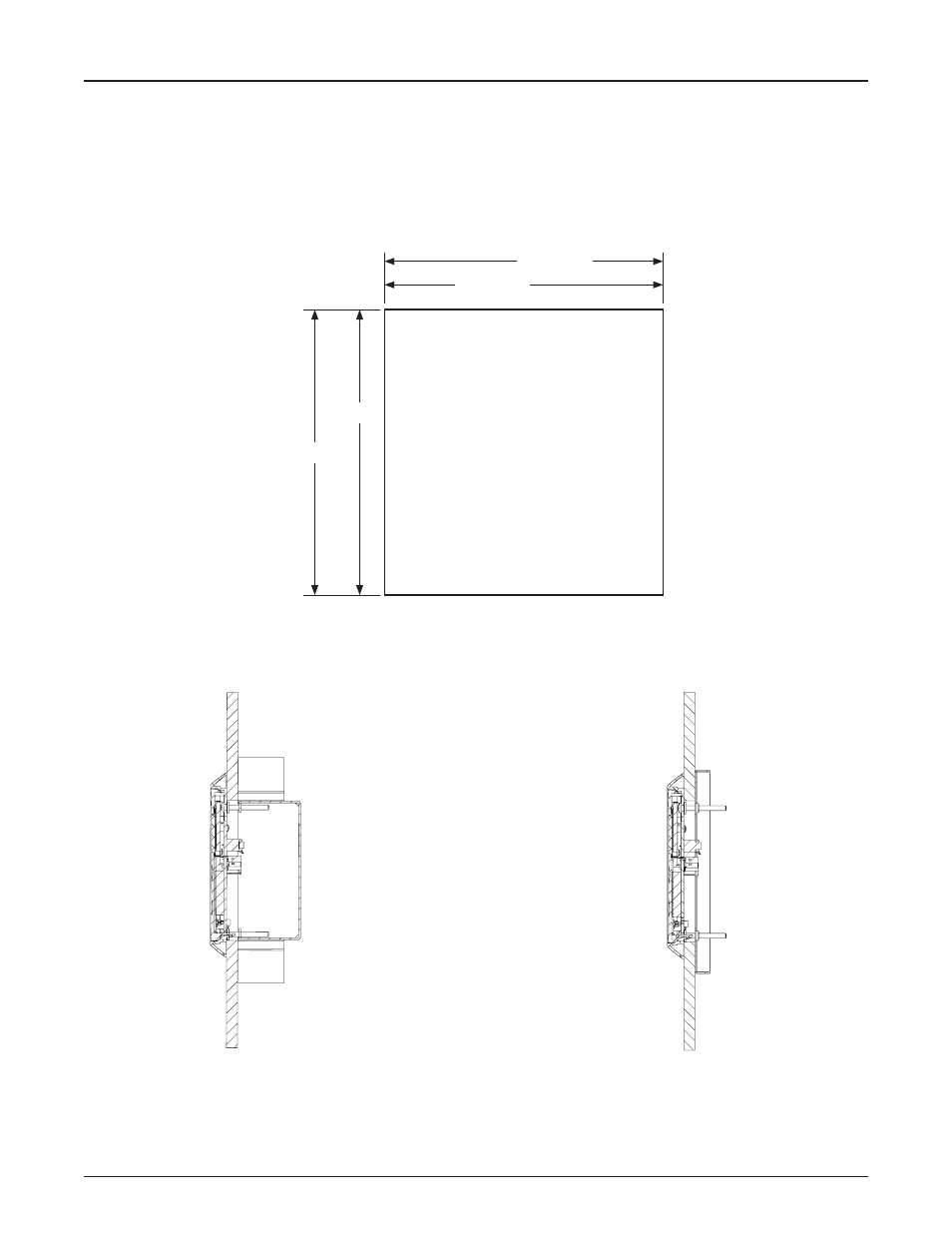

SECTION A-A SECTION A-A
11.75cm
12.07cm
4 5/8″
4 3/4″
Wall cut out dimensions
Mounting using a Raco™ 254 back box Mounting using the retro-fit plate
