Page 11: Nstallation

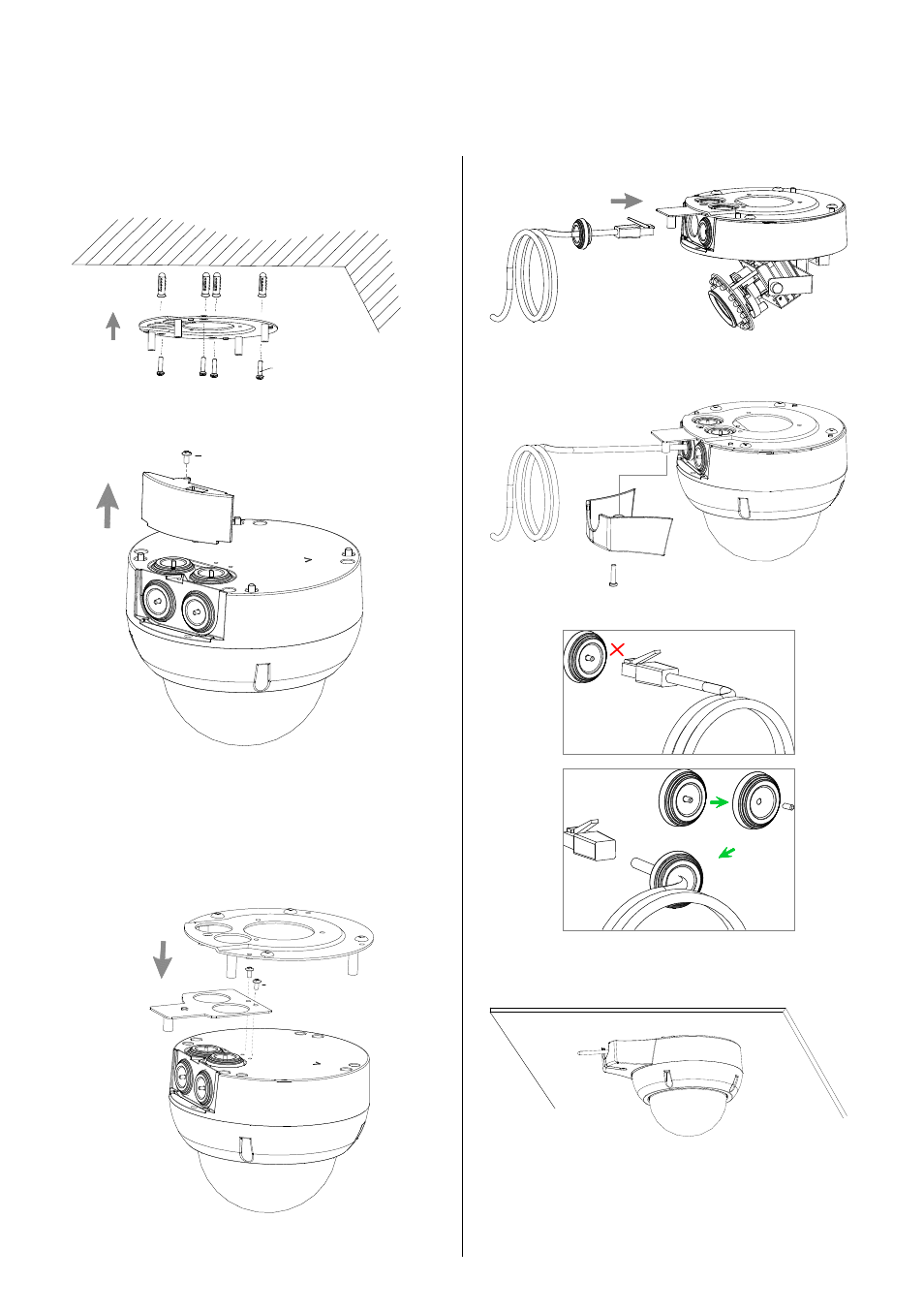

2.2 DDK-1800D Mini-Dome (PoE) Installation

Connecting the DDK-1800D through side of base

Step 4. Insert the cable in the side port.

Step 1. Attach the base to surface with the

provided screws.

4*25mm(L)_
SELF TAPPING SCREWS

Step 2. Unscrew the side panel cover and

remove.

M3*5(L)_SCREW

Step

3. Detach the base top from the

DDK-1800D. Put the flat metal strip on

the dome and attach with the included

screws. Attach the base on the dome and

screw in place.

M3*5mm(L)_SCREW

Step 5. Attach the side panel cover. Screw

cover to flat metal strip.

M4*17mm(L)_SCREW

NOTE:
Wrong

Right

Step 6. The dome is now attached to the

ceiling.

DDK-1800D
