OM17-Quad2800
3-3

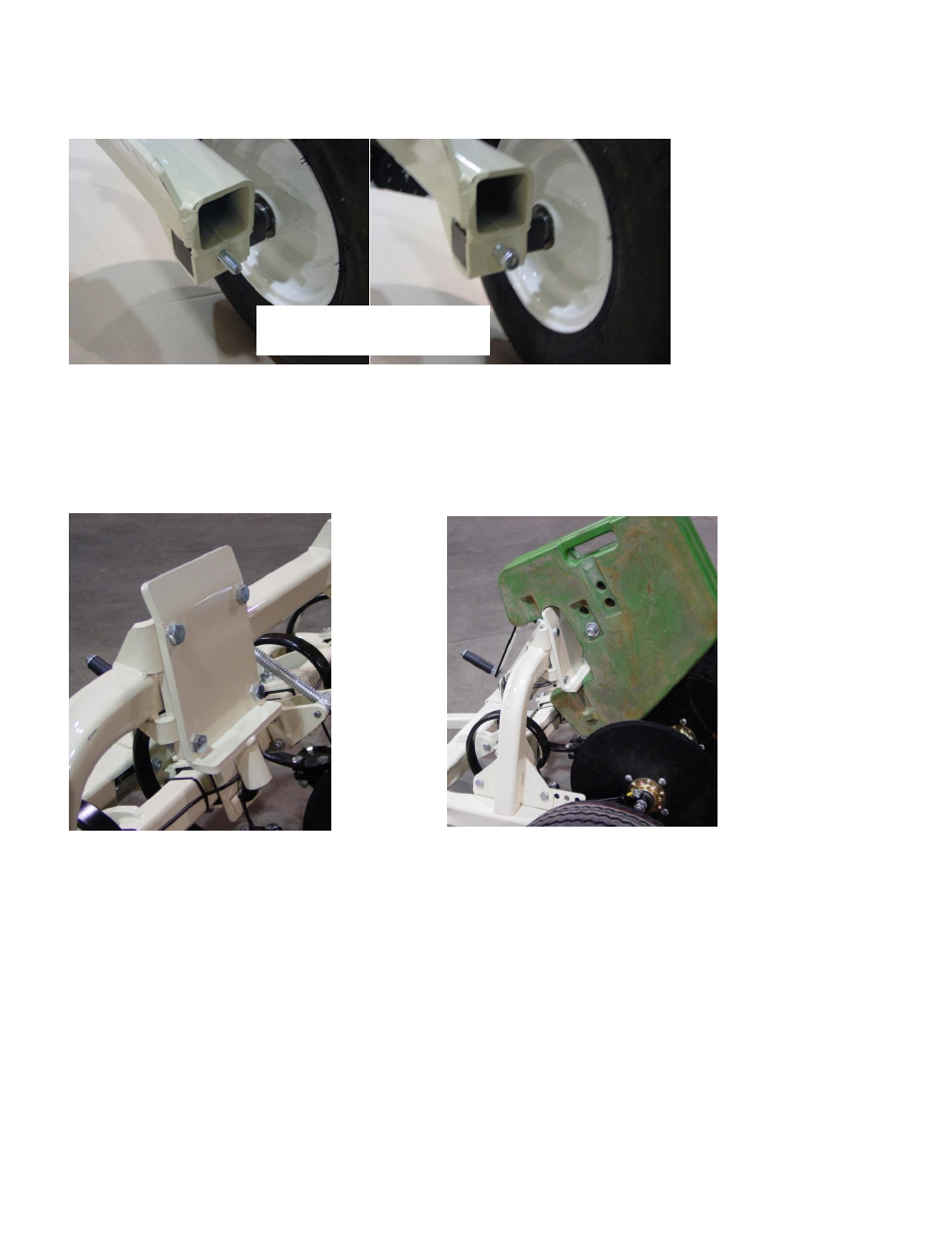

NOTE: Depending on shipping configuration, the unit may need additional assembly. Attach
wheels as shown in Figure 3a & b.
Figure 3a 7 b
To attach John Deere style suitcase weights, install weight bracket in the front holes using ½” x
1.25” bolts with Nylock nuts. Bolt the John Deere adaptor bracket to weight bracket bar using ½” x
1.5” bolts with lock washer and nut (Figure 8). Clamp weights together using ½” x 3.5” bolts, USS
flat washers, and lock washer and nut (Figure 9).
Figure 8 Figure 9
Attach wheels with ½” X 2.75”
bolts with nylock nut.
