OM17-Quad2800
3-1
Section 3
Implement Overview and Set-up

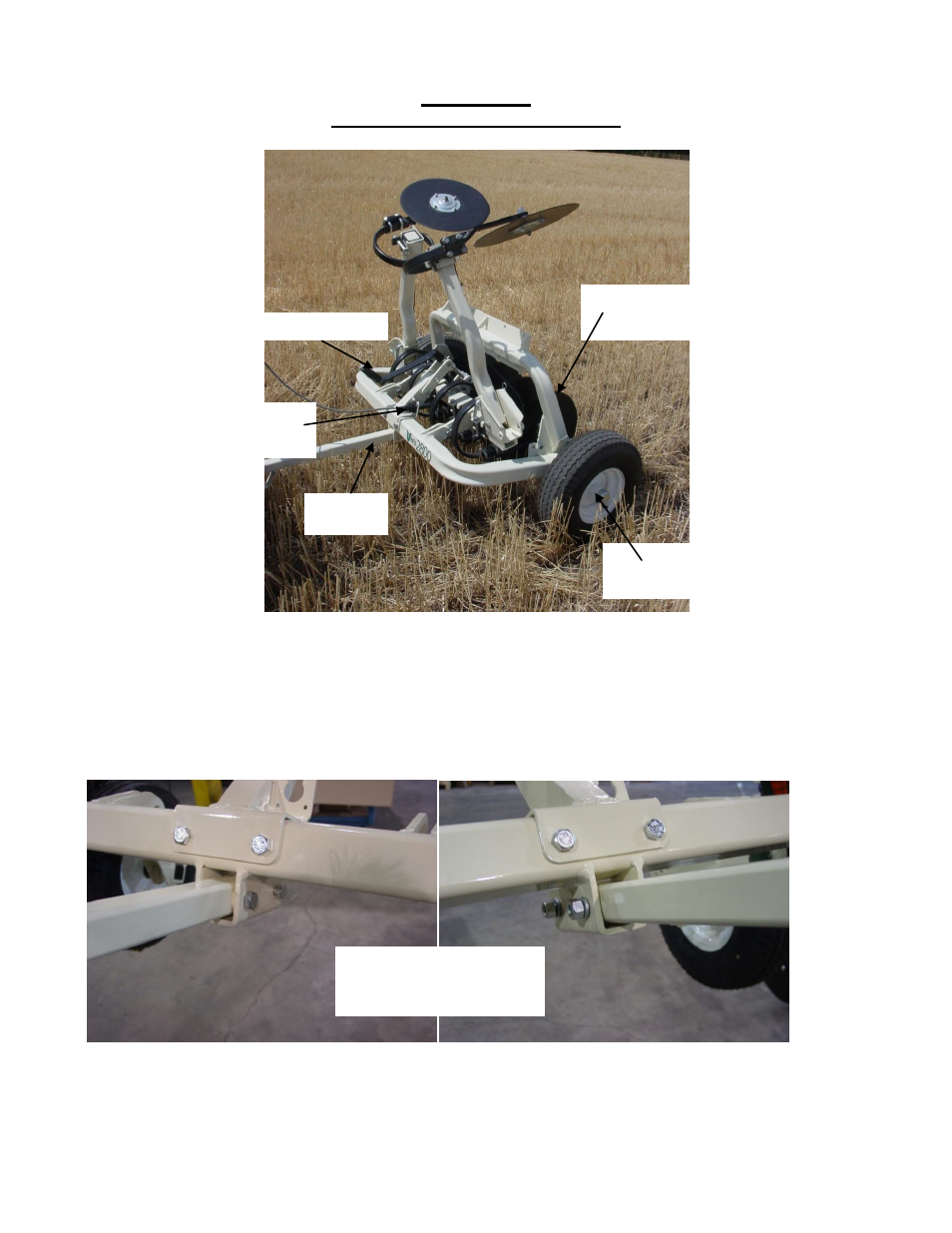

Figure 1.
The tongue must be installed prior to use. To do so, please take precautions to ensure that the
framework is properly supported to ensure safety.
1) Remove bands that attach tongue and framework to shipping pallet.
2) Install tongue as shown in Figure 2.
Figure 2a. and 2b
Install tongue with ½” X
3.25” bolt with lock washer
and nut.
Signal Cable quick-
connect coupler port
Disk
electrodes
Tongue
Tire and Wheel
Assembly
Raise/lower crank
