8
Using the Harmony Effect
This section guides you through the steps of setting up and using the Harmony effect. Since the
PLG100-VH functions as an Insertion effect, it can be edited in the same fashion as the other
Insertion effects in the XG tone generator.
• Keep in mind that actual operation procedures may differ depending on which XG device you are using, the
MU128 or SW1000XG. In general, the instructions below assume you are using the MU128. On the whole, these
instructions are also applicable to the SW1000XG; however, since the SW1000XG has no panel controls, you’ll
need to use the corresponding software controls in the XGworks software. For specific operating instructions on
either the MU128 or SW1000XG, refer to the corresponding owner’s manual.
• When the Performance (PFM) mode is selected, the effect settings change when a different Performance number
is selected. To avoid this, make sure to store the Performance after editing. (Performance is not available on the
SW1000XG.)
Operation

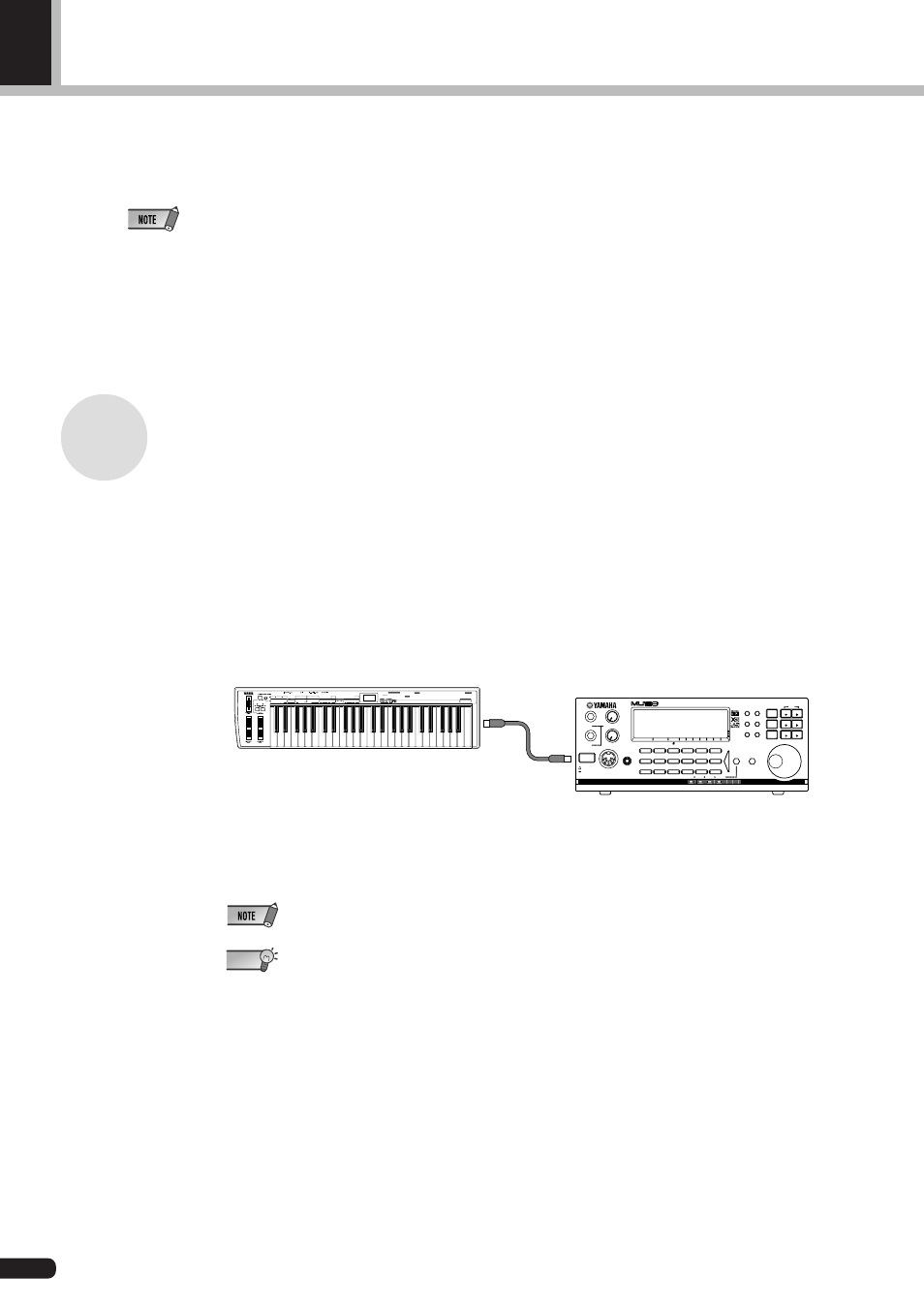

Z Set up the MIDI keyboard or sequencer.
Do this if you wish to control the Harmony effect from a MIDI keyboard or with song
data played on a MIDI sequencer.
To do this:
1)
Connect the MIDI device.
If the tone generator features both MIDI IN-A and B ports, connect the MIDI
device to the A port.
X Set up the A/D Part on the MU128 or SW1000XG.
To do this:
1)
Connect a microphone to the A/D INPUT jack (INPUT 1 on the MU128).
2) Set the device’s MIDI transmit channel to 1 (or to the same channel you’ll be
setting in step #3 below).
• When the Harmony Type is set to Detune or Chromatic (pages 21~23), Harmony is unaffected by
a connected MIDI device.
HINT • If you are using a sequencer to control the Harmony effect, dedicate one track of the song data
for control purposes, and set this to a MIDI channel different from all other tracks. (This chan-
nel setting should be matched in step #3 below.)
• Also, you’ll want to make sure that the connected keyboard or sequencer doesn’t sound any of the
MU128’s Parts. If one or more Parts are set to the same MIDI channel (as set above), change the
MIDI channel setting of the Part(s), or set the volume of the Part(s) to 0, or mute the Part(s).
2) Select Part “A/D1,” then select the “Mic” preset (bank #000, program #002).
MIDI
OUT
MIDI
IN-A
TONE GENERATOR
XG TG300B PERFORM
MODE EQ
UTIL EFFECT
PLAY EDIT ALL
MUTE/
SOLO PART PART
SELECT
VALUE
SELECT
VALUE
ENTER
EXIT
SELECT PART GROUP
Strings Bass Guitar Organ Chrom.perc. Piano
Ensemble Brass Reed Pipe Synth lead Synth pad
Drum Model excl. SFX Percussive Ethnic Synth effects
PHONES MIDI IN A STAND BY
ON
VOLUME 2 PART VOL EXP PAN BANK/PGM REV CHO VAR KEY
A/D INPUT 1
MU PLG-1 PLG-2 PLG-3
SEQUENCER PROGRAM SYSTEM WHEEL ASSIGN STOP
SONG SELECT
START TEMPO CONTINUE B MEASURE TOP BOTTOM TIME SIGNATURE
FIXED VELOCITY MIDI CH MERGE ON/OFF SOUND OFF XG ON GM ON
VOICE MAP POLY/ MONO BANK SELECT PROGRAM CHANGE
CHANNEL MERGE RESET CONTROL TG300B RESET SOUND OFF ALL CH DEVICE NUMBER TOUCH SENSITIVITY
RPN NRPN DRUM NUMBER CONTROLLER
RPN NRPN DATA DENSITY MSB 1ST/ LSB 1ST FOOT SW ASSIGN CONTROLLER SLIDER ASSIGN RPN NRPN DRUM NUMBER CONTROLLER
DATA DENSITY PB DENSITY RESET TRANSPOSE
1 MODULATION 2 BREATH 5 PORTA TIME 6 DATA ENTRY 7 VOLUME 10 PANPOT
11 EXPRESSION 64 HOLD1(DAMPER) 65 PORTAMENTO 71 HARMONIC 72 RELEASE TIME 73 ATTACK TIME 74 BRIGHTNESS 84 PORTA CTRL
123 VIBRATO RATE 124 VIBRATO DEPTH 125 VIBRATO DELAY 126 LP FILTER CUTOFF 127 LP FILTER RESONANCE 128 HP FILTER CUTOFF 129 EQ LO GAIN 130 EQ HI GAIN
131 EQ LO FREQUENCY 132 EQ HI FREQUENCY 133 EG ATTACK TIME 134 EG DECAY TIME 135 EG RELEASE TIME 136 DRUM LP FILTER CUTOFF 137 DRUM LP FILTER RESONANCE 138 DRUM EG ATTACK RATE
139 DRUM EG DECAY RATE 140 DRUM PITCH COARSE 141 DRUM PITCH FINE 142 DRUM LEVEL 143 DRUM PAN 144 DRUM REVERB 145 DRUM CHORUS 146 DRUM VARIATION
147 DRUM HP FILTER CUTOFF 148 DRUM EQ LO GAIN 149 DRUM EQ HI GAIN 150 DRUM EQ LO FREQUENCY 151 DRUM EQ HI FREQUENCY 91 REVERB 93 CHORUS 94 VARIATION 120 PB SENSITIVITY 121 FINE TUNE 122 COARSE TUNE
CONTROLLER NUMBER LIST CONTROL CHANGE
ENTER HEXA DECIMAL DECIMAL 1 2 3 4 5 6 7 8 9 A B C D E F 0 B
RPN
NRPN 152 CH PRESSURE 153 KEY PRESSURE 154 MASTER VOLUME 156 MASTER TUNING 157 VELOCITY 158 TEMPO
OTHERS
Keyboard or sequencer.
MU128 or SW1000XG
