Chapter 2
Valve Installation
Installing Valves in the Heated Oven
22 Operating Manual

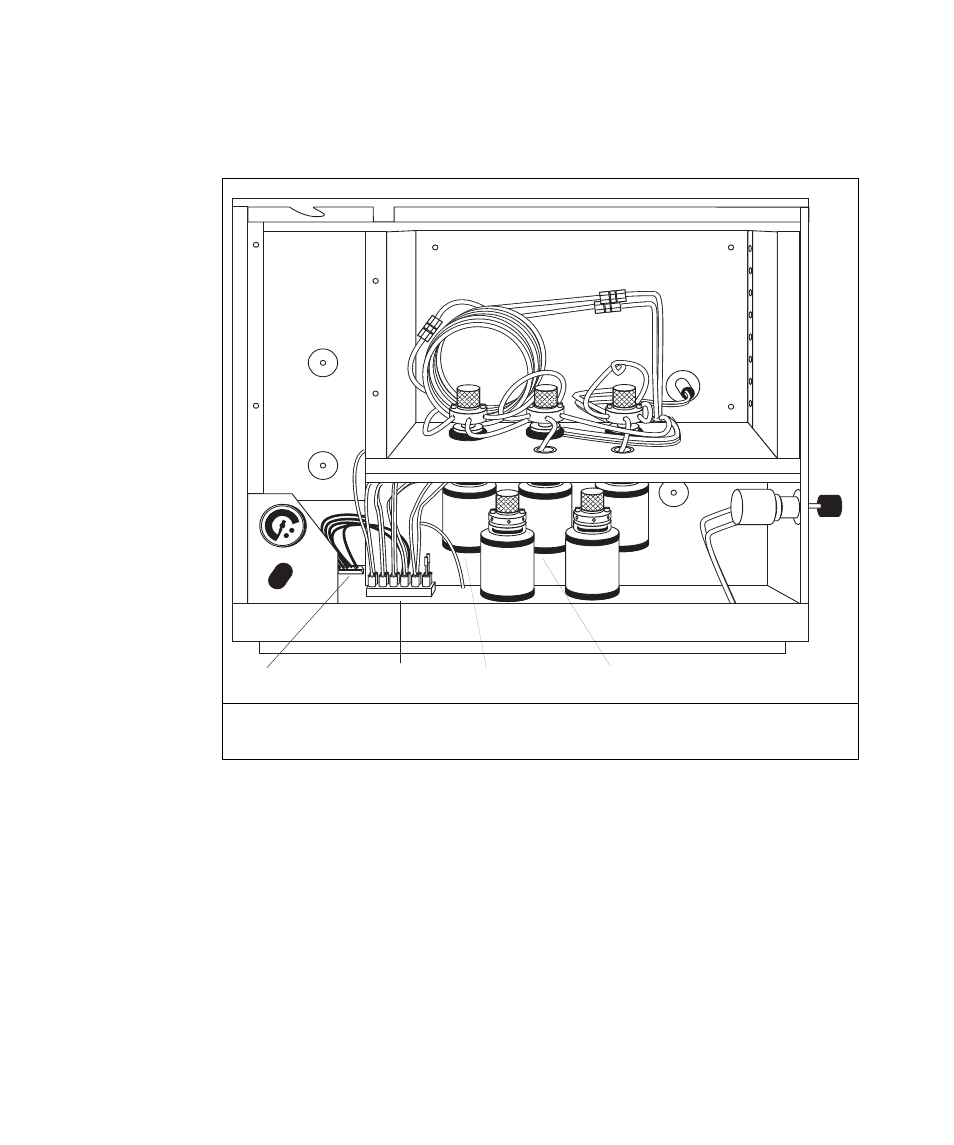

Figure 2-1. Timed Event Output Jacks, Solenoid Manifold, and Valve Positions
4. Connect the cable from the solenoid valve (Figure 2-4) to the proper timed
event output jack (Figure 2-2) located in the lower rear inside corner of the
valve compartment.
Valve 1 is attached to timed event #8 (TE8), Valve 2 is attached to timed event
#7 (TE7), and so forth (Figure 2-2).
1. Time Event Output Jack 2. Solenoid Manifold
3. Valve 1 Position 4. Valve 2 Position
1 2 3 4
