- 9 -

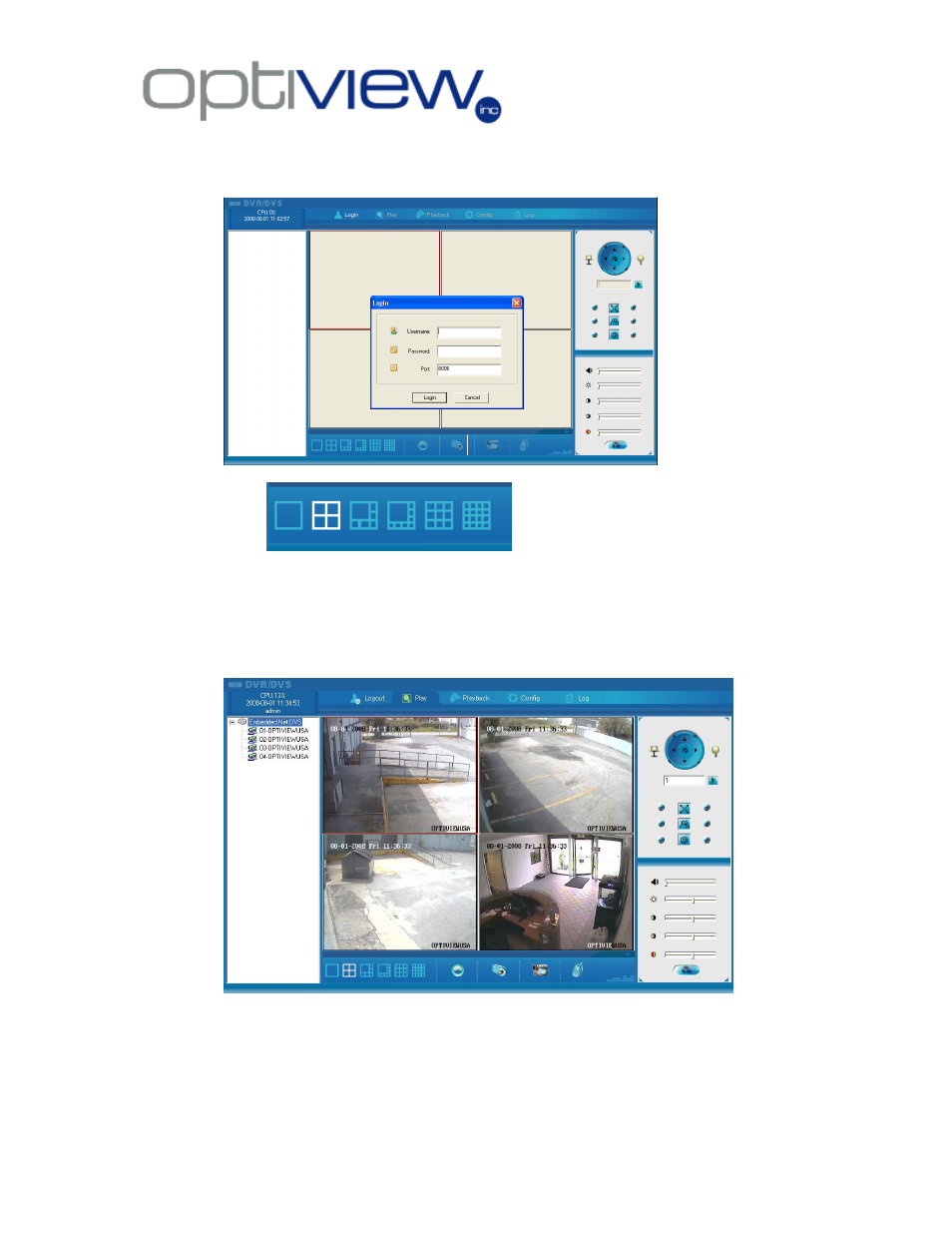

5.2 Functionalities of the Web User Interface:

5.2.a.

- Select the number of display partition you

prefer, from single screen up to 16-partition screen display. Using a mouse, point and
click to one of the display partition to select a window screen. A currently selected
display partition has a green color square around it. You will then go to Channel
Selector as shown below to double click a camera number to connect to it and have it
displayed on the window you’ve just selected.

5.2.b. Channel Connector




5.2.c PTZ Camera Control Board - remotely controls the connected PTZ camera

Select and double click a camera channel number to connect to it remotely. Double click the
top Server name to connect to all cameras from the Video Server. A camera number can be
displayed on any one of the screen display partition. Simply select a partition from the display
screen and double click a camera from this channel connector to connect to the camera. To
disconnect a currently connected camera, double click on the channel number in order to
disconnect.
