Connector Pin Assignments and Adapters B-3
Adapters
Adapters
H8571-J Adapter
Figure B-2 shows the H8571-J adapter (6-pin MMJ connector to 9-pin D-sub
connector) and its pin assignments.

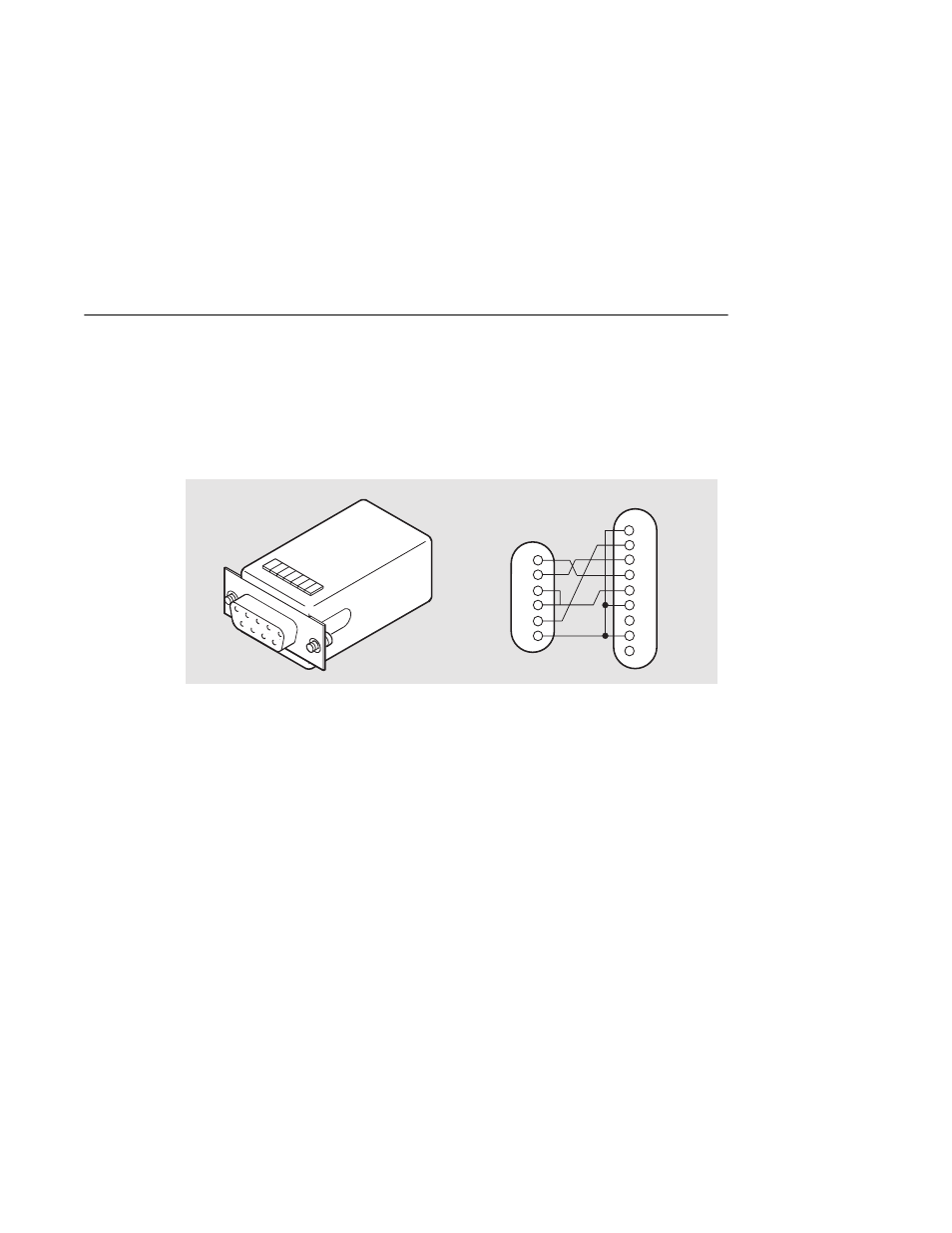

Figure B-2: H8571-J Adapter
H8571-J
6 MMJ
9 D-Sub(F)
1
2
3
4
5
6
1
2
3
4
5
6
7
8
9
DCD
SD
RD
DTR
GND
DSR
RTS
CTS
RI
NPB-5342-95F
