i-8000
3-35
I-8114
I-8142
I-8142i
I-8144
I-8112:
2-channel RS-232 Module
■ RS-232 channels: 2
■ Modem control
■ TXD, RXD, RTS, CTS, DSR, DTR,
DCD, RI, GND
■ Transmission speed: 115.2K bps
■ Shared Interrupt
I-8114:
4-channel RS-232 Module
■ RS-232 channels: 4
■ Modem control
■ TXD, RXD, RTS, CTS, DSR, DTR,
DCD, RI, GND
■ Transmission speed: 115.2K bps
■ Shared Interrupt
I-8142:
2-channel RS-422/485 Module
■ RS-422/485 channels: 2
■ Self-tuner chip inside
■ TXD+, TXD-, RXD+, RXD-, RTS+,
RTS-, CTS+, CTS-, GND
■ Transmission speed: 115.2K bps
■ Shared Interrupt
I-8142i:
2-channel isolated RS-422/485 Module
■ RS-422/485 channels: 2
■ Self-tuner chip inside
■ TXD+, TXD-, RXD+, RXD-, RTS+,
RTS-, CTS+, CTS-, GND
■ Transmission speed: 115.2K bps
■ Shared Interrupt
■ Isolation: 3000V
I-8144:
4-channel RS-422/485 Module
■ RS-422/485 channels: 4
■ Self-tuner chip inside
■ TXD+, TXD-, RXD+, RXD-, RTS+,
RTS-, CTS+, CTS-, GND
■ Transmission speed: 115.2K bps
■ Shared Interrupt

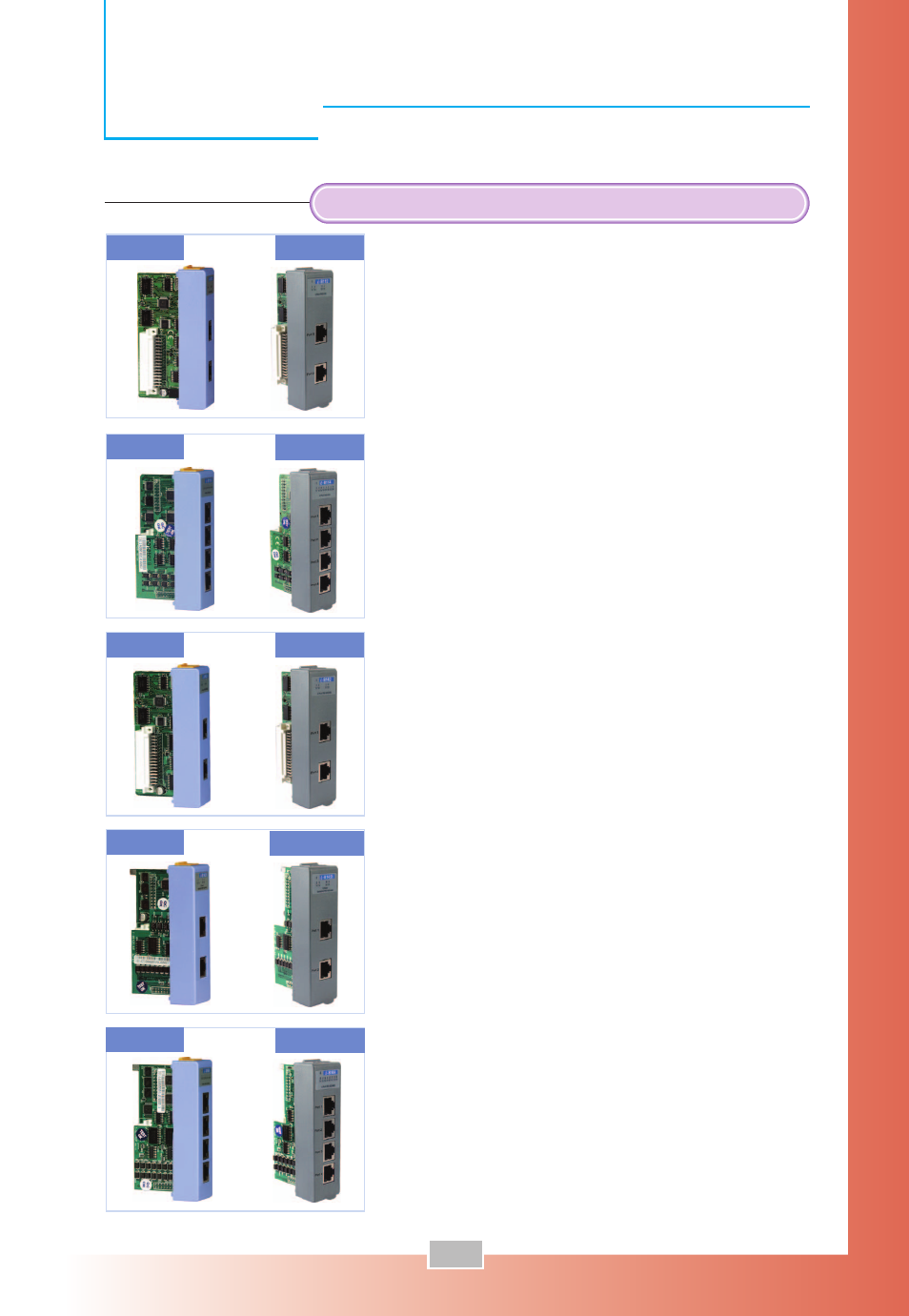

8K RS-232/RS-422/RS-485 Modules
I-8112 I-8112-G
I-8114-G
I-8142-G
I-8144-G
I-8142i-G
SERIES
i
- 8000 Parallel Communication Modules
