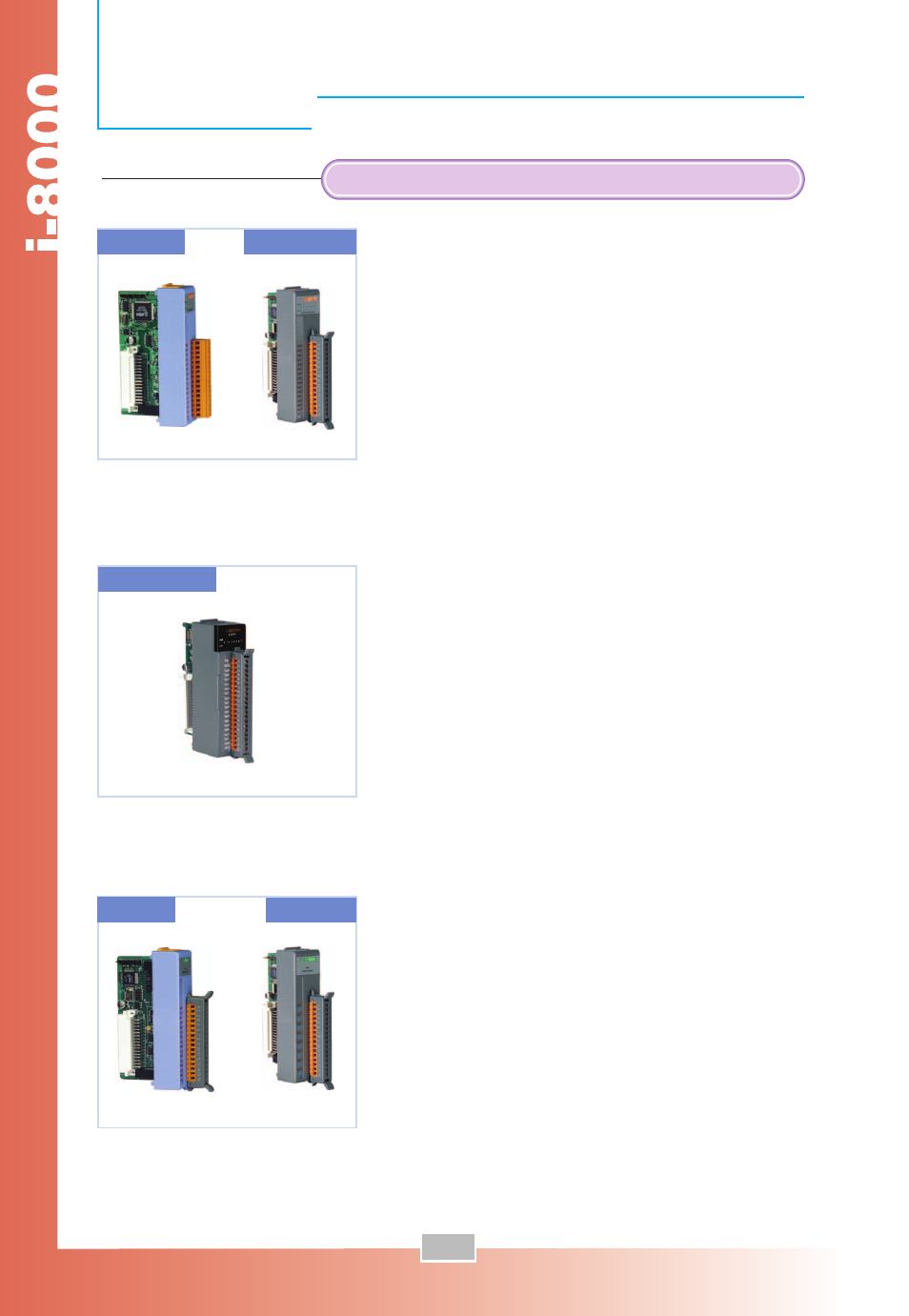

I-8017H I-8017H-G
I-8017HS-G
I-8024 I-8024-G
3-34
NEW!!
I-8017H / I-8017H-G (Gray color)
8-channel Isolated Analog Input Module
■ Analog Input Channels: 8
■ Resolution: 14-bit
■ Input Type: Differential
■ Input Range : ± 10V, ± 5V, ± 2.5V, ± 1.25V, ± 20mA
(need 125 Ω external resistor)
■ Isolation Voltage: 3000Vdc
■ Power Consumption: 2W
■ Sampling rate:
Single Channel Polling Mode : 100Ksps
Single Channel Interrupt Mode : 50Ksps
8 Channels Scan Mode : 16Ksps
■ Input Bandwidth : 100KHz @-3dB
■ Input impedance: 200K Ω
I-8017HS-G (Gray color)
8/16 Channel Isolated Analog Input Module
■ Analog Input Channels: 8/16
■ Resolution: 14-bit
■ Input Type: Differential/Single End
■ Input Range: +/- 10V, +/- 5V, +/- 2.5V, +/- 1.25V,
+/- 20mA (need 125
Ω external resistor)
■ Isolation Voltage: 3000Vdc
■ Power Consumption: 2W
■ Sampling Rate:
Single Channel Polling Mode: 100Ksps
Single Channel Interrupt Mode: 50Ksps
Multi Channel Scan Mode: 16Ksps
■ Input Bandwidth: 100KHz @-3dB
■ Input Impedance: 200K Ω
I-8024 / I-8024-G (Gray color)
4-channel Isolated Analog Output Module
■ Analog output channels: 4
■ Voltage output: +/-10V
■ Current output: 0~20mA/4~20mA
■ Isolation: 3000V
■ Power Consumption: 2.2W
8K Analog Input/Output Modules
SERIES
i
- 8000 Parallel I/O Modules
