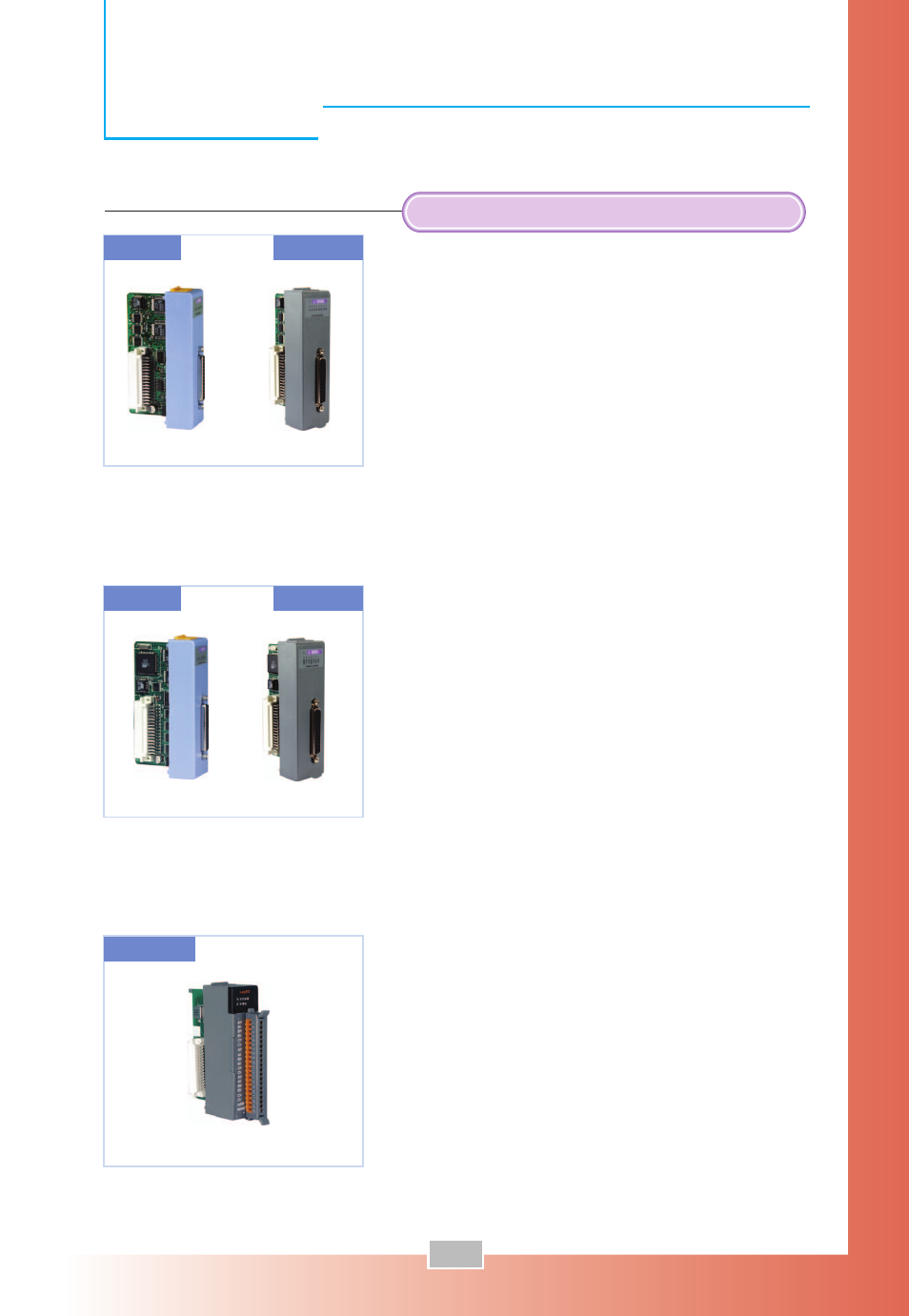

I-8093-G (Gray color)

3-axis Encoder Input Module

■

Channels: 3-axis

■

Encoder type: single-ended or differential

■

Logical level: TTL and COMS compatible

■

Accept inputs from incremental or
quadrature encoders

■

Maximum quadrature input frequency: 5MHz

■

Encoder input modes: Quadrature, Up/Down,
Pulse/Direction

8K Motion Modules

SERIES

8000

Parallel I/O Modules

I-8091

I-8090

I-8090-G

I-8091-G

I-8093-G

I-8090 / I-8090-G (Gray color)

3-axis Encoder Input Module

■

Channels: 3

■

Encoder type: single-ended or differential

■

Logical level: TTL and COMS compatible

■

Accept inputs from incremental or quadrature
encoders

■

Maximum quadrature input frequency: 1MHz

■

Encoder input modes: Quadrature, Up/Down,
Pulse/Direction

■

Power Consumption: 3.4W

I-8091 / I-8091-G (Gray color)

2-axis Stepper/Servo Module

■

Stepper channels: 2

■

Step rate: 1pps~250Kpps

■

Max. step count: +/-2

■

Acceleration/Deceleration: Automatic
trapezoidal acceleration/deceleration

■

Output pulse signal: Two pulse (CW/CCW)
mode or one pulse (Pulse, Direction) mode

■

Output polarity: Positive/Negative
programmable

■

Power Consumption: 3.9W
