9
Insignia NS-KP04 DVD and CD+G Karaoke Player/Recorder
www.insigniaproducts.com

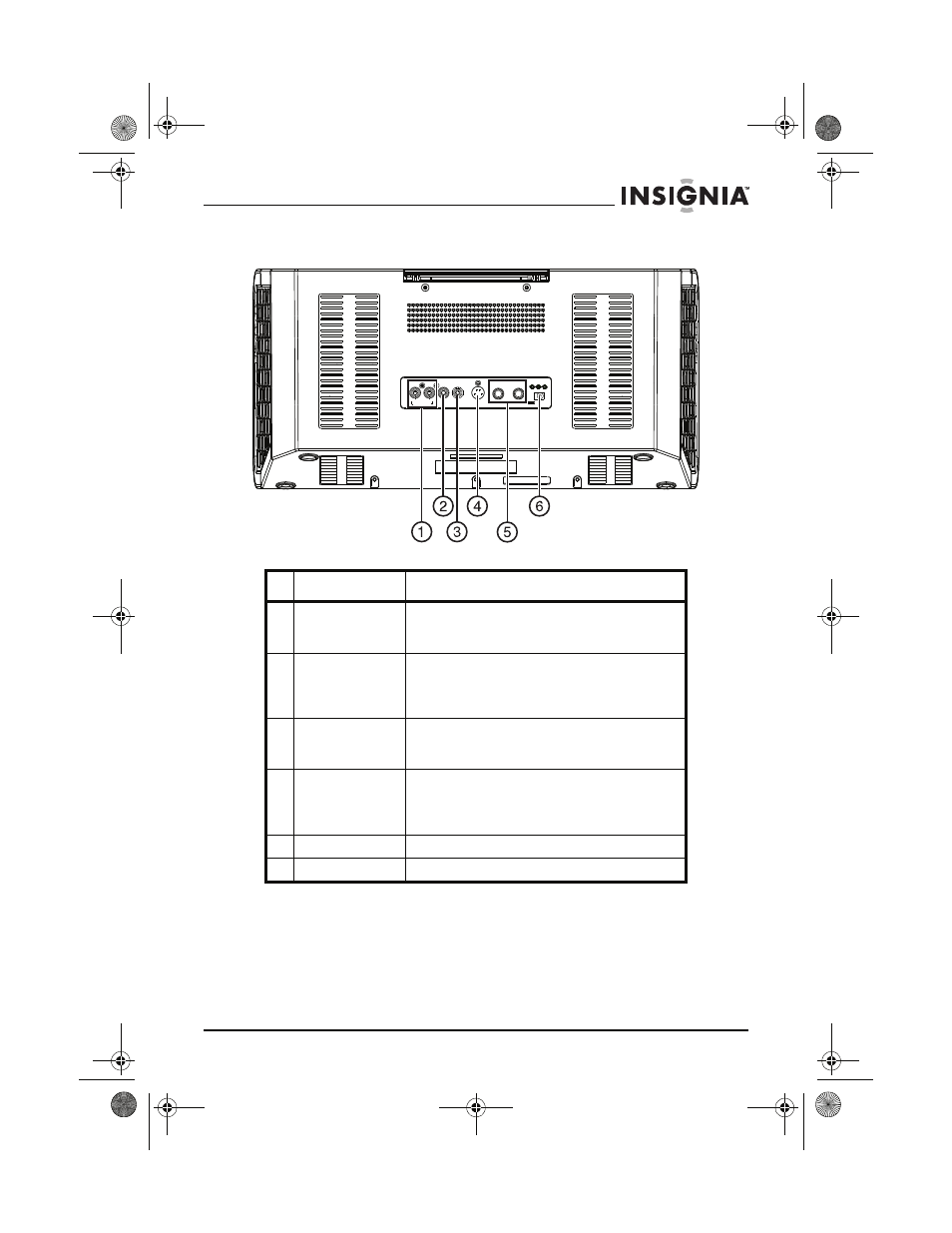

Back
# Jack Description
1 AUDIO OUT L/R Connect an analog sound system to these jacks. For more
information, see “Playing the audio through an analog sound
system” on page 14.
2 VIDEO OUT Connect a standard (composite) AV device to this jack to display
the screen image on the connected device. For more
information, see “Playing the video through an AV display
device” on page 14.
3 COAXIAL Connect a digital coaxial sound system to this jack. For more
information, see “Playing the audio through a digital coaxial
sound system” on page 13.
4 S-VIDEO Connect an S-Video device to this jack to display the screen
image on the connected device. For more information, see
“Playing the video through an S-Video display device” on
page 14.
5 MIC1/MIC2 Connect microphones to these jacks.
6 DC IN Connect the power cord to this jack.
- +
AUDI O OU T VIDEO OUT COAXI AL S-VID EO
MIC1 MIC2
DC IN 12V R L
