6.3 PROFIBUS-DP interface

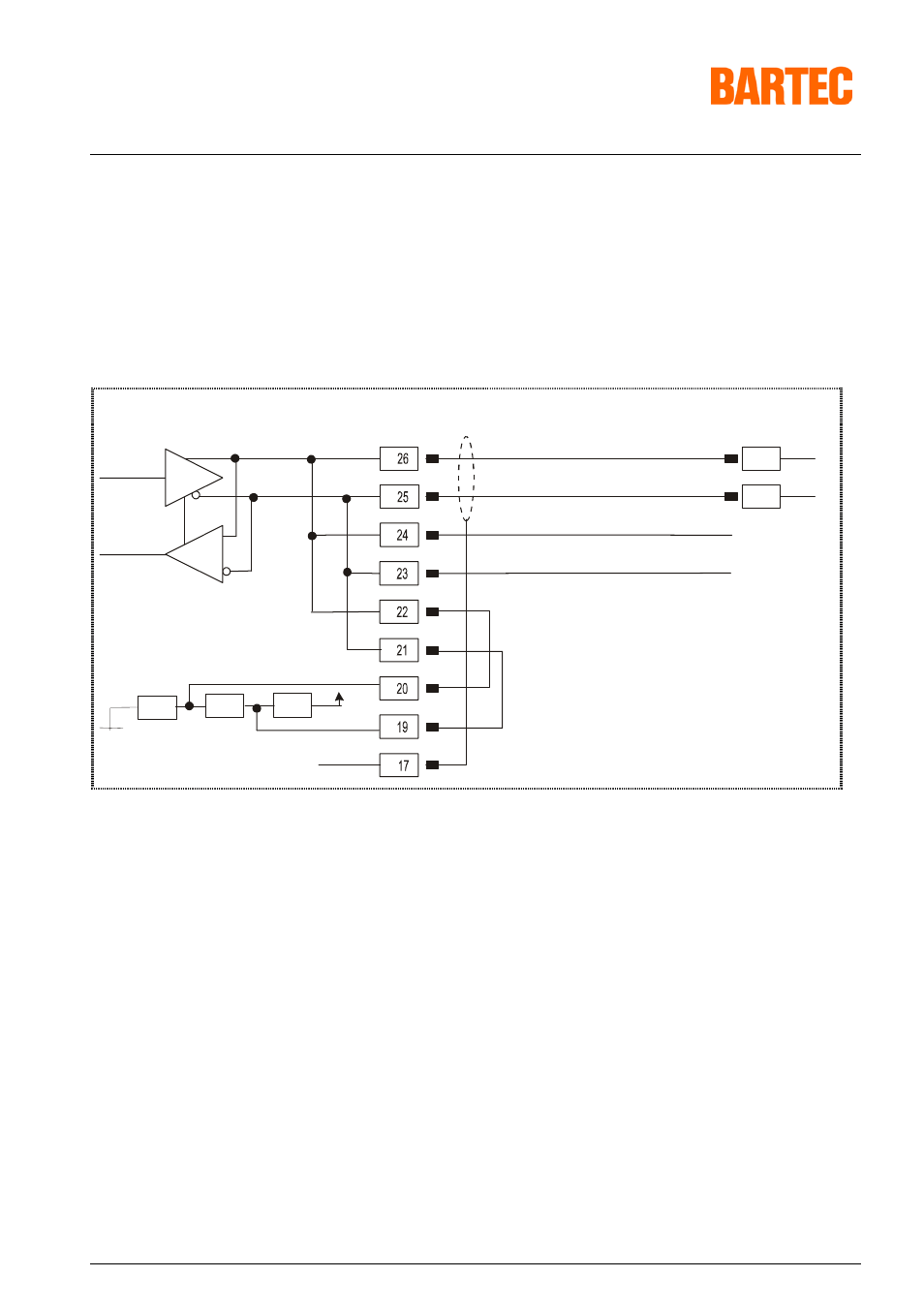

Connection of a controller via a PROFIBUS-DP interface of the POLARIS Panel PC.
The PROFIBUS-DP interface may only be applied in combination with the visualisation software BMS Graf pro.
PROFIBUS-DP module
Terminal compartment of the POLARIS Panel PC Controller
PE
Data In
Data Out
A
A
B
B
See the interface description from the controller manufacturer for the relevant pin assignment of the controller.
Pins 26-24-22, 25-23-21 are already connected inside.
to other PROFIBUS participants
if final device is in bus
(termination)
