2.5

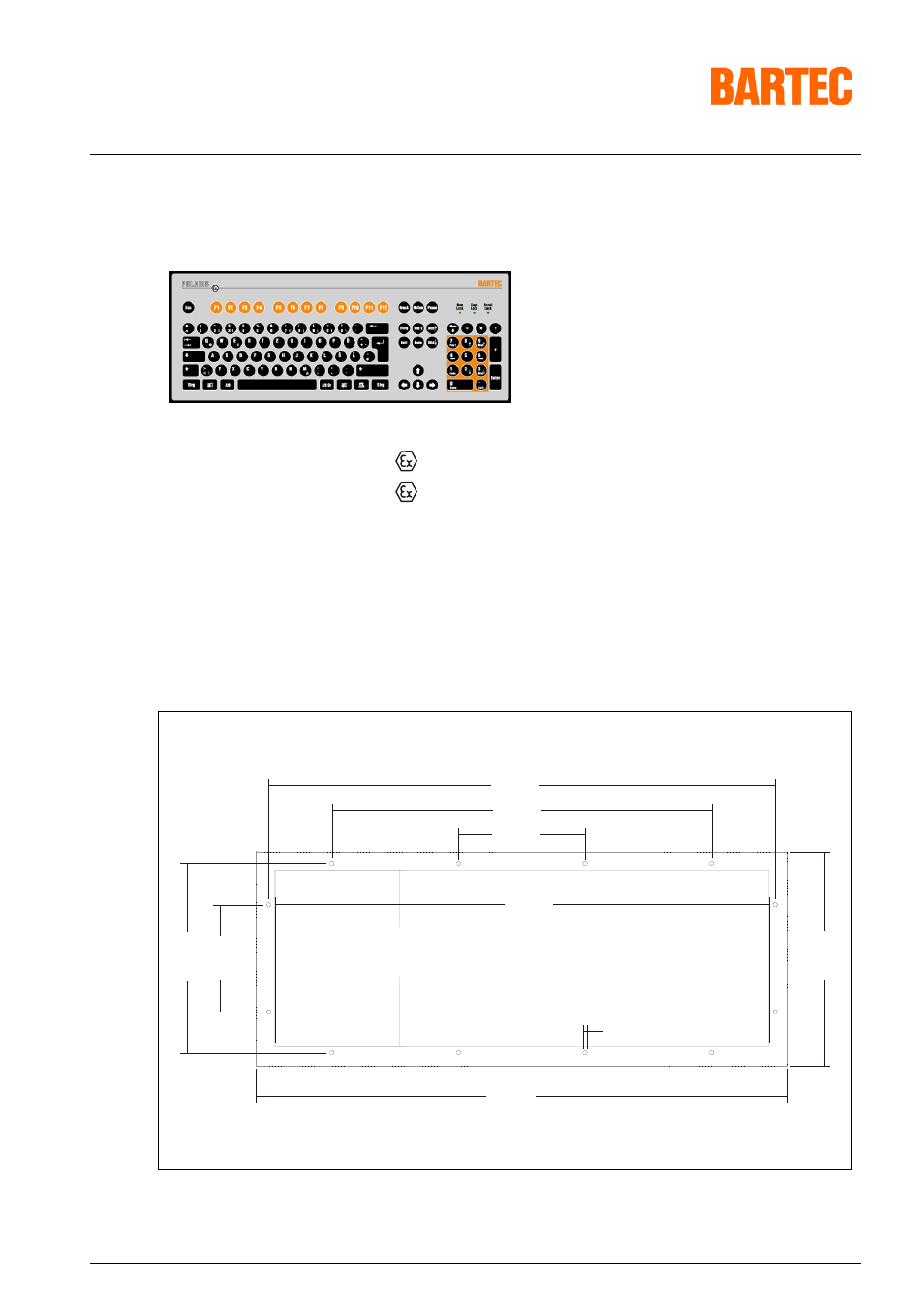

Characteristics data keyboard
Type
: 17-71VZ-40../....
Ex protection type
:
II 2G Ex ib IIC T4
II 2D tD A21 T 80°C IP 6X (front side)
Certification
: IBExU05ATEX1117
X
Keyboard
:
Front panel fitting
Dimensions
:
420 mm x 170 mm (weight x height)
Installation depth
: 18
mm
Wall cut-out
:
390 mm x 140 mm
Weight
:
approx. 700 g
Dimensions and wall cut-out for keyboard
140.0
0 mm
390.00 mm
3.30 mm
15
0.
00 mm
85.
00
mm
100.00 mm
300.00 mm
400.00 mm
170.0
0 m
m
420.00 mm
Hole diameter: 3.3 mm
