SECTION 5—OPERATING INSTRUCTIONS
22
Front Panel Indicators - Units without
SensO
2
NOTE: For this procedure, refer to FIGURE 5.8.

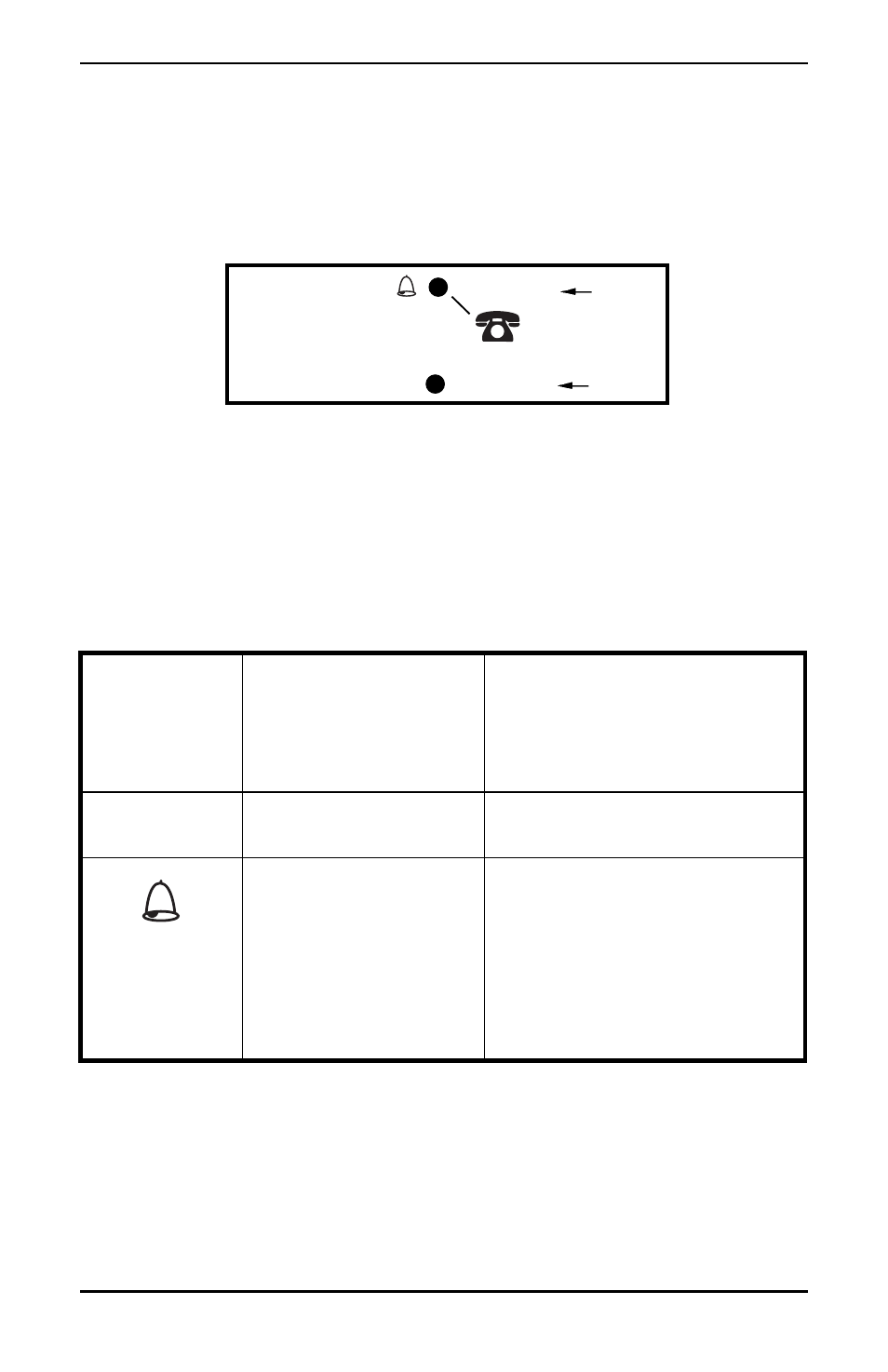

FIGURE 5.8 Front Panel Indicators - Units without SensO2
Initial Startup of the Concentrator
NOTE: Concentrator may be used during the initial start warm‐up
time (approximately 30 min). O
2
purity will build to a maximum
during this period.
LABEL
SYMBOL
STATUS
INDICATOR LIGHTS
(LED)
SYSTEM OKAY
GREEN Indicator Light
SYSTEM FAILURE
RED Indicator light
Continuous Audible Alarm
Sieve-GARD™Compressor
Shutdown
Call a qualified technician. Switch
to a back-up supply of oxygen
immediately.
Call Supplier
Normal
RED
GREEN
Auto Shut - Down
Use Backup
I/O
I/O
