Connect the Power Cable
1.
Follow
Figure 4
for the wiring connection.
Figure 4
Wiring
2.
Connect the power/video cable from the gimbal assembly to the camera
board (see
).
Note
For secure installations, surface-mounted cables should be
protected by plastic or metal cable covers.

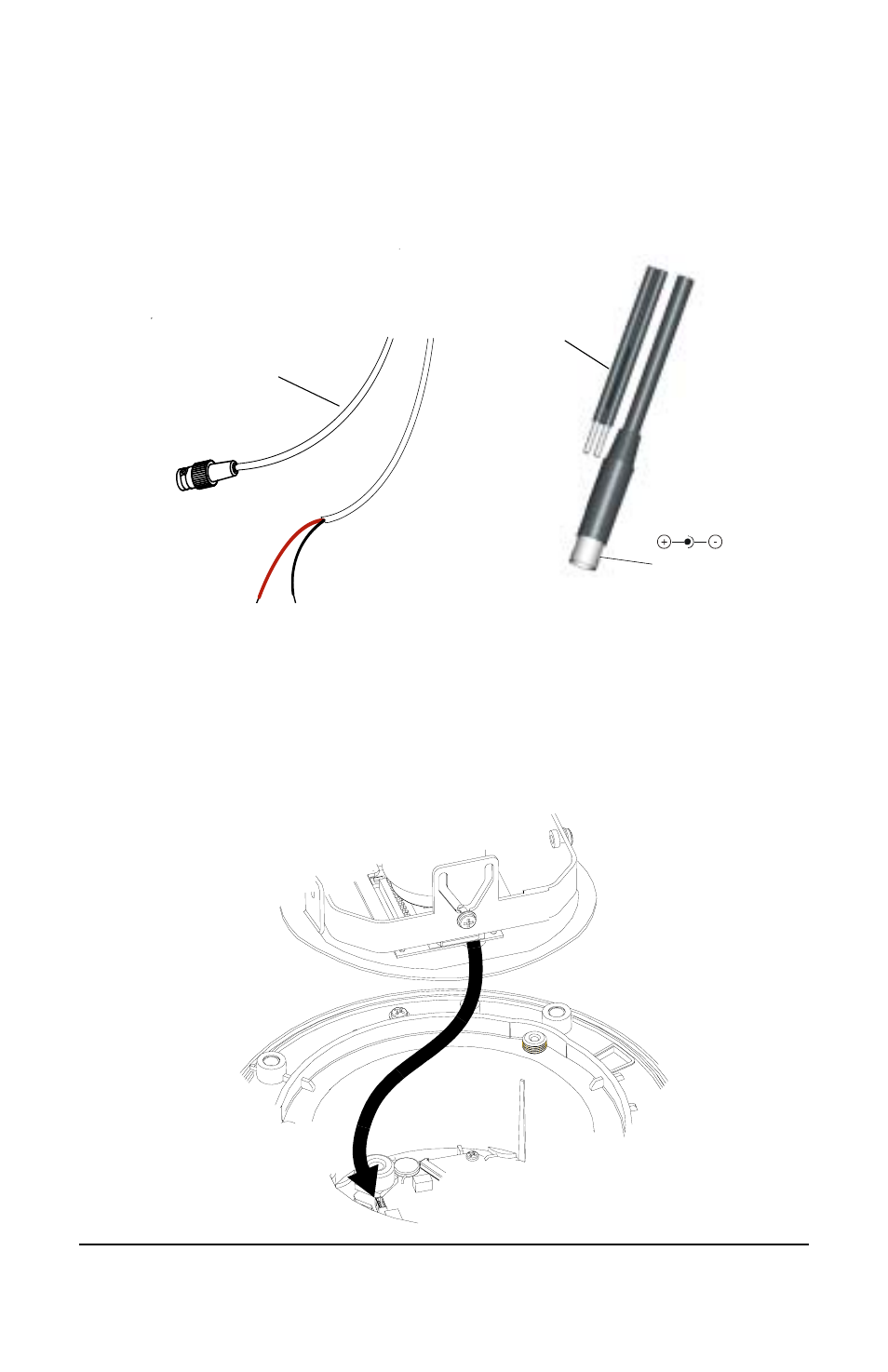

Figure 5
Power Cable Connection
Coaxial Cables
UTP Cables
Video: Unshielded
Twisted Pair wire
Video: female BNC
Power
red +
connect to red +
black -
connect to ground
Power: 2.1 mm
male jack center pin
Gimbal assembly
Camera board
Power/video cable
