Page 13
Document 900.0345 Rev 1.02
13
03/07
DIP Switch Functions (Color and TDN Cameras)

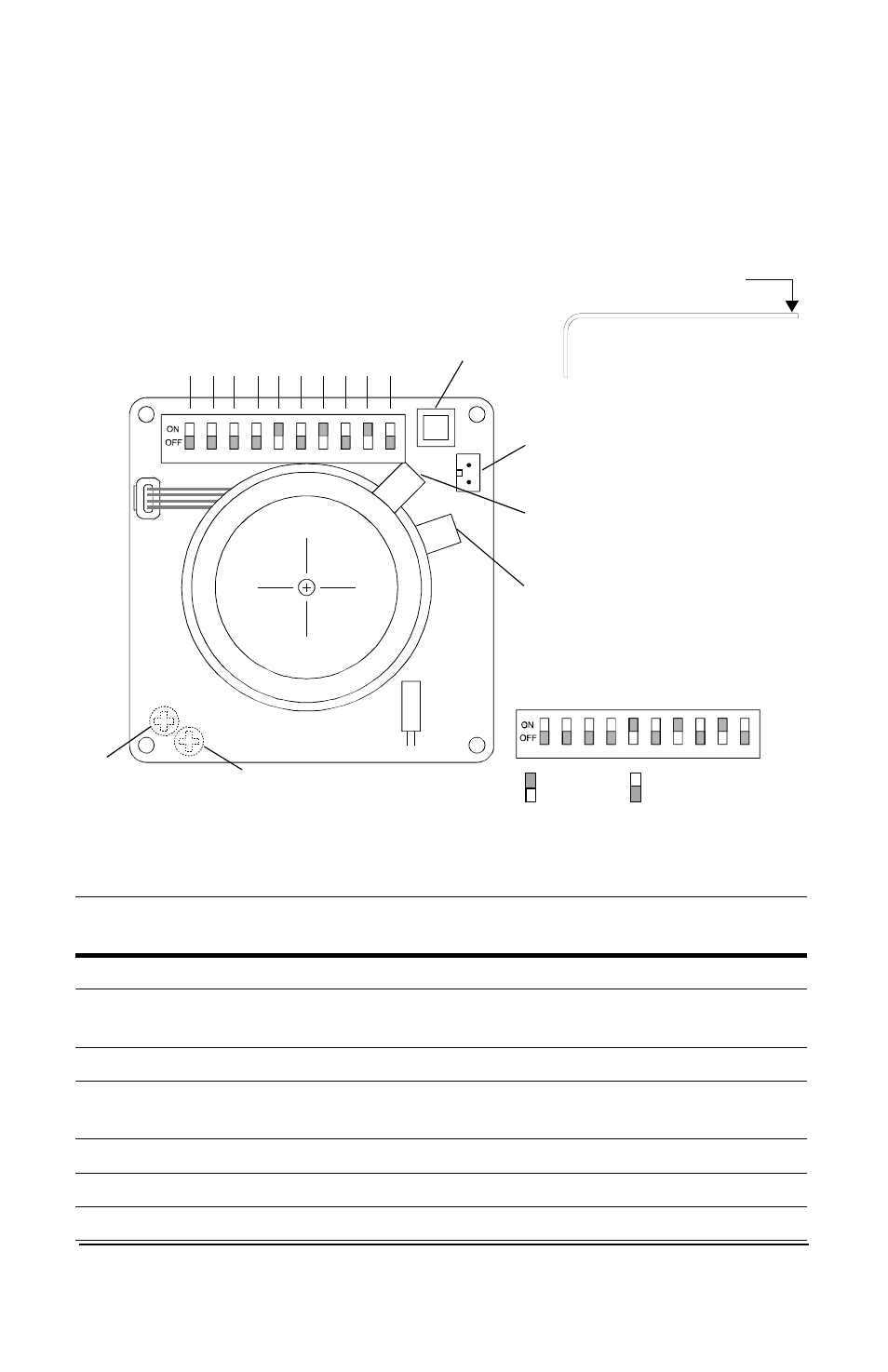

Figure 10
Color Camera Switch Settings (Vari-focal Auto Iris Lens
Shown)
Adjustment Method (Color and TDN Cameras)
Switch
no.
Function
Off
On
10
GAMMA
Off (0.45)
On (1.0)
9
AE (Automatic
Exposure)
Off
On (see
8
FLON (Flicker Less) Off
On
7
BLC (Backlight
Compensation)
Off
On (Center window)
6
IRIS Control
Electronic IRIS Auto IRIS
5
Not used
Not used
Not used
4
AGC
4 dB
26 dB
Video
monitor
output
* N/U = Not used.
Leave in Off position.
Line-lock phase
adjustment pot
Note
You may find it helpful to
use the Allen key (supplied) to
access the DIP switches.
Top locking
screw adjusts
focal length.
Bottom locking
screw adjusts
focus.
Push lock
DC Iris
adjust
10 9 8 7 6 5 4 3 2 1
10 9 8 7 6 5 4 3 2 1
GA
MMA
AE
FLON
BL
C
IRIS
NU*
AGC M
A
X
AW
B1
AW
B2
AW
B3
Factory (default) settings
Vari-focal Auto Iris
= ON (up)
= OFF (down)
