EasyCoder PX4i User’s Guide (IPL version)
Chapter 4 — Media Load

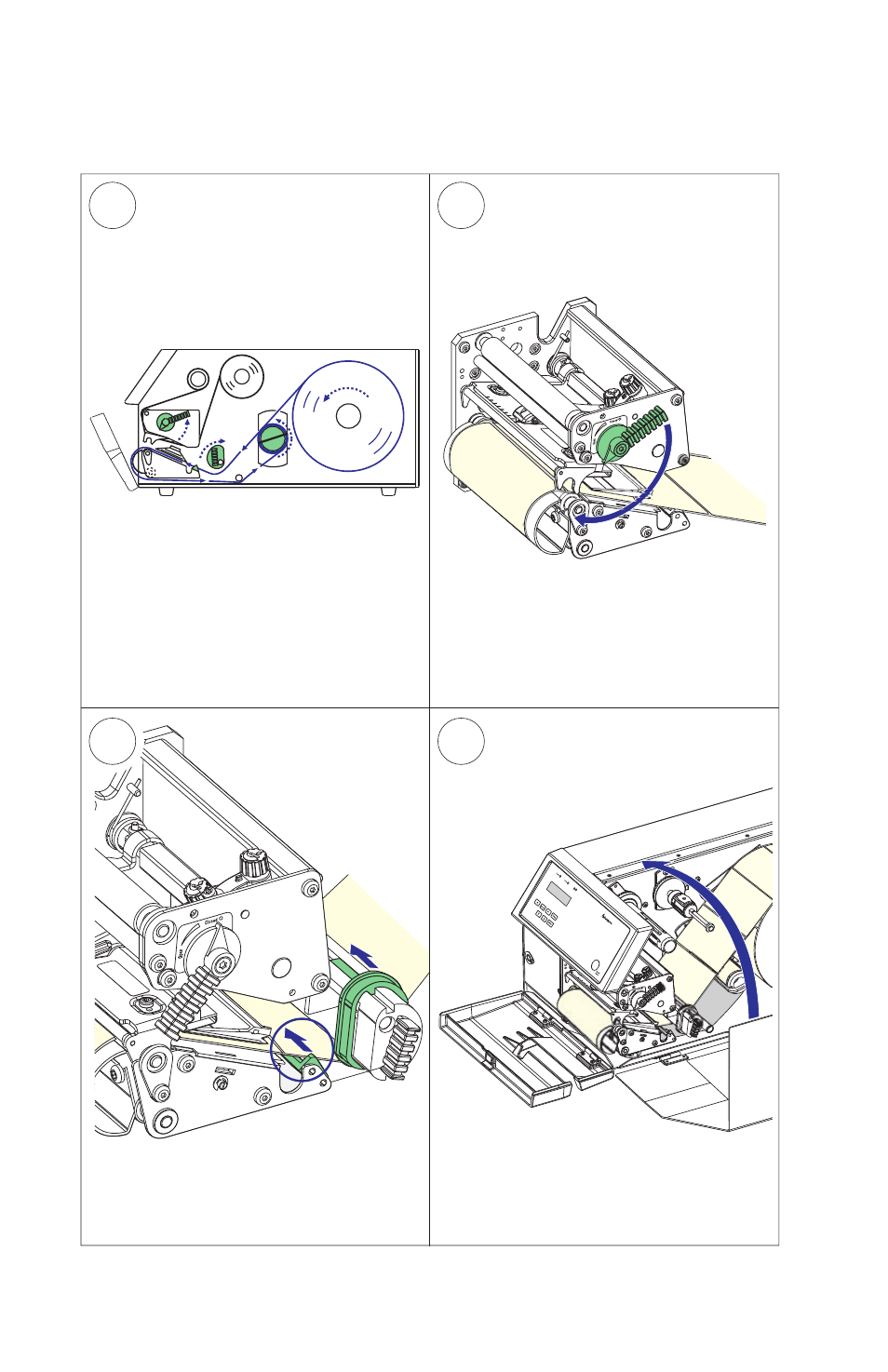

This diagram shows the media path.
Turn the printhead lift lever to “Closed”
position.
Adjust the position of the green edge
guides so the media is guided with a
minimum of play.
Close the side door but keep the front
door open.
Internal Batch Takeup, cont.
