EasyCoder PX4i User’s Guide (IPL version)
Chapter 4 — Media Load
Peel-Off , cont.

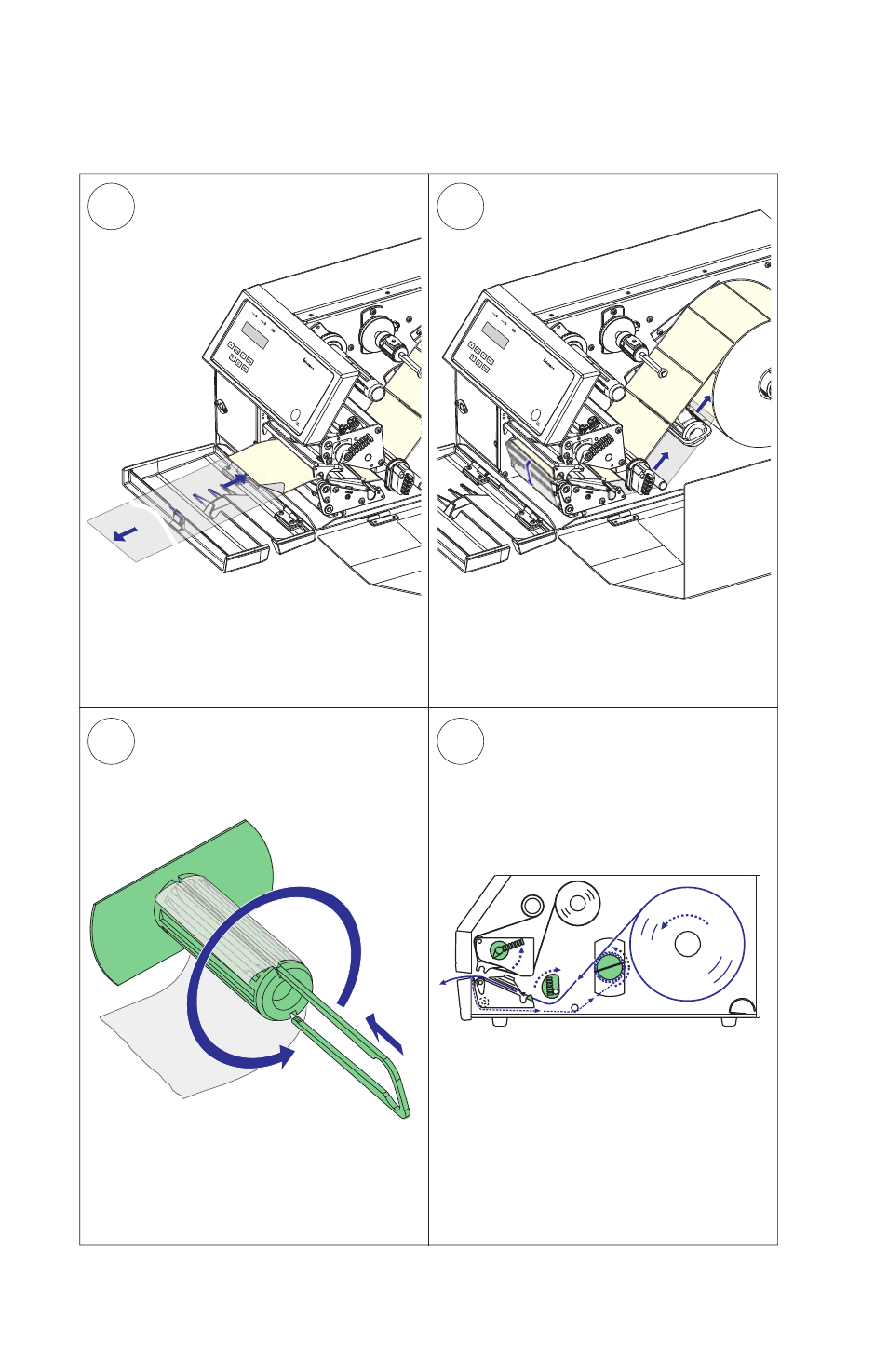

Route the liner around the tear bar and
back under the print unit.
Pull out approximately 40 cm (15 in) of
labels and remove the labels from the
liner.
Secure the liner to the takeup hub with
the clip (1) and rotate the hub (2) so the
media becomes tight.
This diagram shows the media and liner
paths.
