EasyCoder PX4i User’s Guide (IPL version) 13
Chapter 2 — Installation
Display
The display window contains an LCD (Liquid Crystal Display) with
background illumination and two lines of text, each with 16 characters.
It shows a message when certain errors occur and guides the operator
through upgrading, startup, and setup. The following errors are reported:
Error Displayed message
Empty/Paused PAUSE
Out of media
PAPER OUT
Out of ribbon RIBBON OUT
Printhead lifted PRINT HEAD UP/PRESS FEED
Cutter error OPEN&SHUT CUTTER
Ribbon fi tted RIBBON FITTED
Paper fault PAPER FAULT
Power supply error PSU ERROR
Power supply too hot PSU OVER TEMP
Printhead too hot PRINTHEAD HOT
Keyboard
The keyboard is of the membrane-switch type and has 7 keys. The key-
board is supplemented by a large “Feed/Pause” button. Some keys have
hard-coded functions in the startup and setup modes.

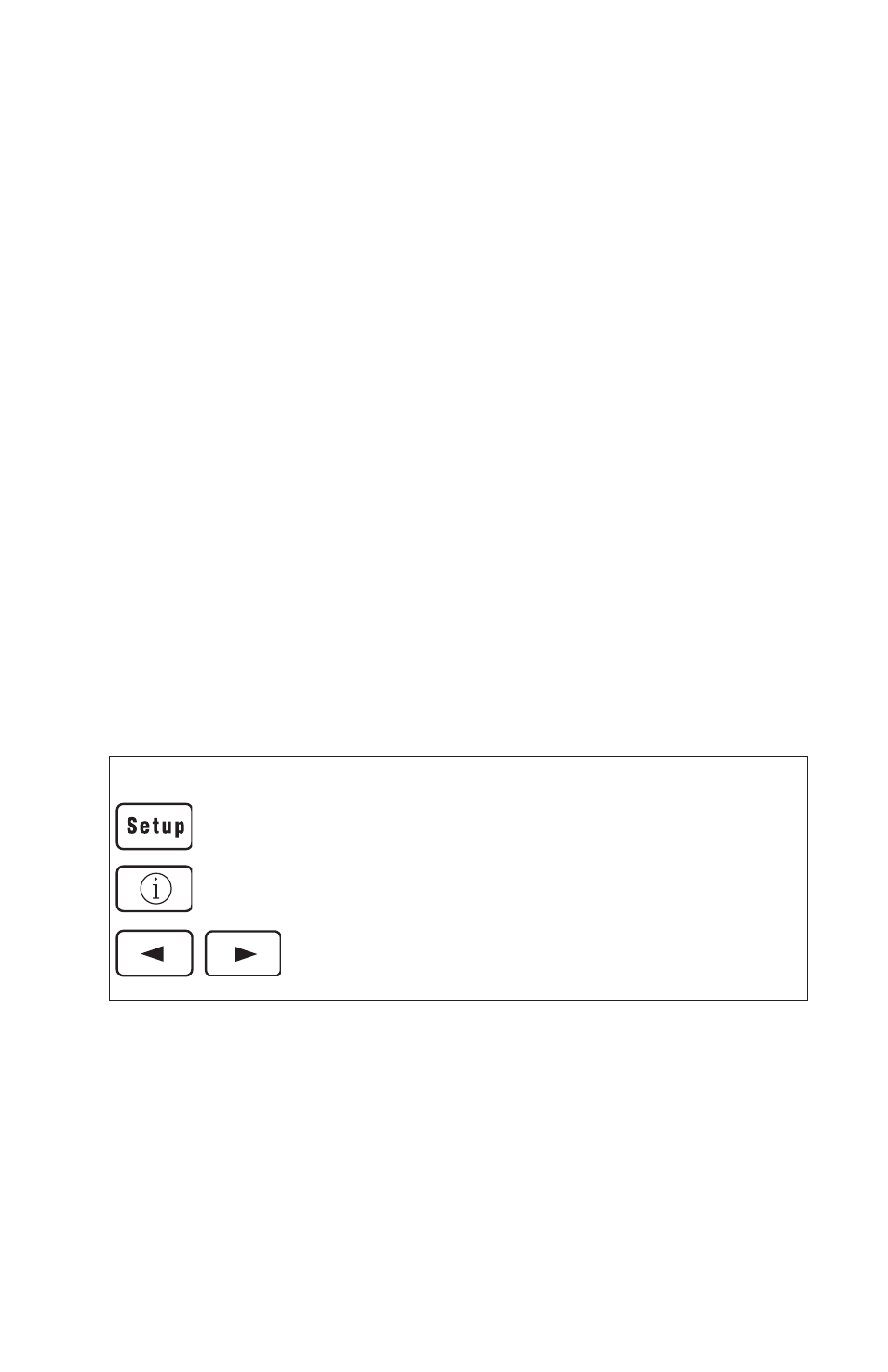

Feed/Pause a print job. Repeat last printed label.
Enter the Setup Mode (see Chapter 7).
Display error messages and communication channel information.
Scroll between various types of information after pressing the
key. Possible error messages and information on active communi-
cation channels are shown in a loop.
Keyboard Color Code
Yellow
Operation of the printer (operator level)
Green Setup or service (site or service technician level)
White Data input to printer (operator or technician level)
Feed/Pause button
