Filters must be installed in either the central return register or in the
return air duct work.

XIV. STARTUP PROCEDURE & ADJUSTMENT

Furnace must have a 115 VAC power supply properly connected
and grounded. Proper polarity must be maintained for correct op-
eration. In addition to the following start-up and adjustment items,
refer to further information in Section XVI, Operational Checks.

H

EAT

A

NTICIPATOR

S

ETTING

The heat anticipator in the room thermostat must be correctly ad-
justed to obtain the proper number of cycles per hour and to pre-
vent “overshooting” of the setting. Set the heat anticipator setting to
0.7 amps. Follow the thermostat manufacturer’s instructions on
how to adjust the heat anticipator setting.

D

RAIN

T

RAP

P

RIMING

The drain trap must be primed prior to furnace startup. To prime, fill
the drain trap with water. This ensures proper furnace drainage
upon startup and prohibits the possibility of flue gases escaping
through the drain system.

F

URNACE

OPERATION

Purge gas lines of air prior to startup. Be sure not purge lines into
an enclosed burner compartment.
Check for leaks using an approved chloride-free soap and water
solution, an electronic combustible gas detector, or other approved
method. Verify that all required kits (propane gas, high altitude,
etc.) have been appropriately installed.

F

URNACE

S

TARTUP

1. Close the manual gas shutoff valve external to the furnace.
2. Turn off the electrical power to the furnace.
3. Set the room thermostat to the lowest possible setting.
4. Remove the burner compartment door.

NOTE: This furnace is equipped with an ignition device which
automatically lights the burner. Do not try to light the burner by
hand.

5. Move the furnace gas valve manual control to the OFF

position.

6. Wait five minutes then smell for gas. Be sure to check near

the floor as some types of gas are heavier than air.

7. If you smell gas after five minutes, immediately follow the

instructions on page 4 of this manual. If you do not smell
gas after five minutes, move the furnace gas valve manual
control to the ON position.

8. Replace the burner compartment door.
9. Open the manual gas shutoff valve external to the furnace.
10. Turn on the electrical power to the furnace.
11. Adjust the thermostat to a setting above room temperature.
12. After the burners are lit, set the thermostat to desired

temperature.

F

URNACE

S

HUTDOWN

1. Set the thermostat to the lowest setting.

The integrated control will close the gas valve and extinguish
flame. Following a 15 second delay, the induced draft blower
will be de-energized. After a 150-second delay period (fixed),
the circulator blower will be de-energized.

2. Remove the burner compartment door and move the furnace

gas valve manual control to the OFF position.

3. Close the manual gas shutoff valve external to the furnace.

4.

Replace the burner compartment door.

G

AS

S

UPPLY

P

RESSURE

M

EASUREMENT

CAUTION

T

O



PREVENT



UNRELIABLE



OPERATION



OR



EQUIPMENT



DAMAGE

THE



INLET



GAS



SUPPLY



PRESSURE



MUST



BE



AS



SPECIFIED



ON



THE



UNIT



RATING



PLATE



WITH



ALL



OTHER



HOUSEHOLD



GAS



FIRED



APPLIANCES



OPERATING

.

HIGH VOLTAGE !

D

ISCONNECT



ALL



POWER



BEFORE



SERVICING



OR



INSTALLING



THIS



UNIT

. M

ULTIPLE



POWER



SOURCES



MAY



BE



PRESENT

. F

AILURE



TO



DO



SO



MAY



CAUSE



PROPERTY



DAMAGE

PERSONAL



INJURY



OR



DEATH

.

WARNING

The line pressure supplied to the gas valve must be within the
range specified below. The supply pressure can be measured at
the gas valve inlet pressure tap or at a hose fitting installed in the
gas piping drip leg. The supply pressure must be measured with
the unit OFF. To measure inlet pressure, use the following proce-
dure.

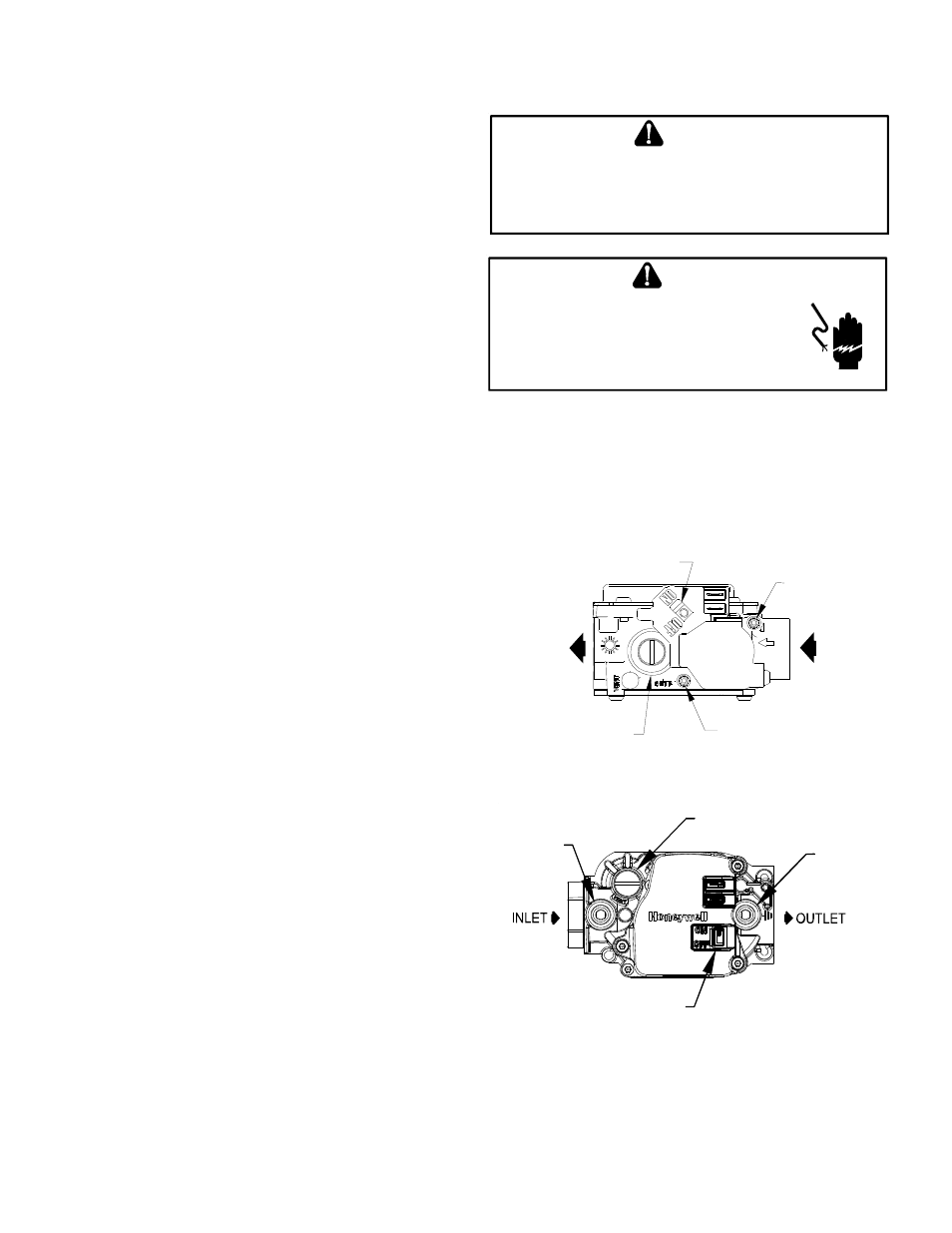

Pressure Regulator

Adjustment

(Under Cap Screw)

Gas Valve

On/Off

Selector

Switch

INLET

OUTLET

Inlet Pressure

Tap

Outlet Pressure

Tap

White-Rodgers Model 36G22

Gas Valve On/Off
Selector Switch

Inlet
Pressure
Tap

Pressure Regulator
(under cap screw)

Outlet
Pressure
Tap

Honeywell Model VR8215 (Single-Stage)

1.

Turn OFF gas to furnace at the manual gas shutoff valve
external to the furnace.

2.

Turn OFF all electrical power to the system.
