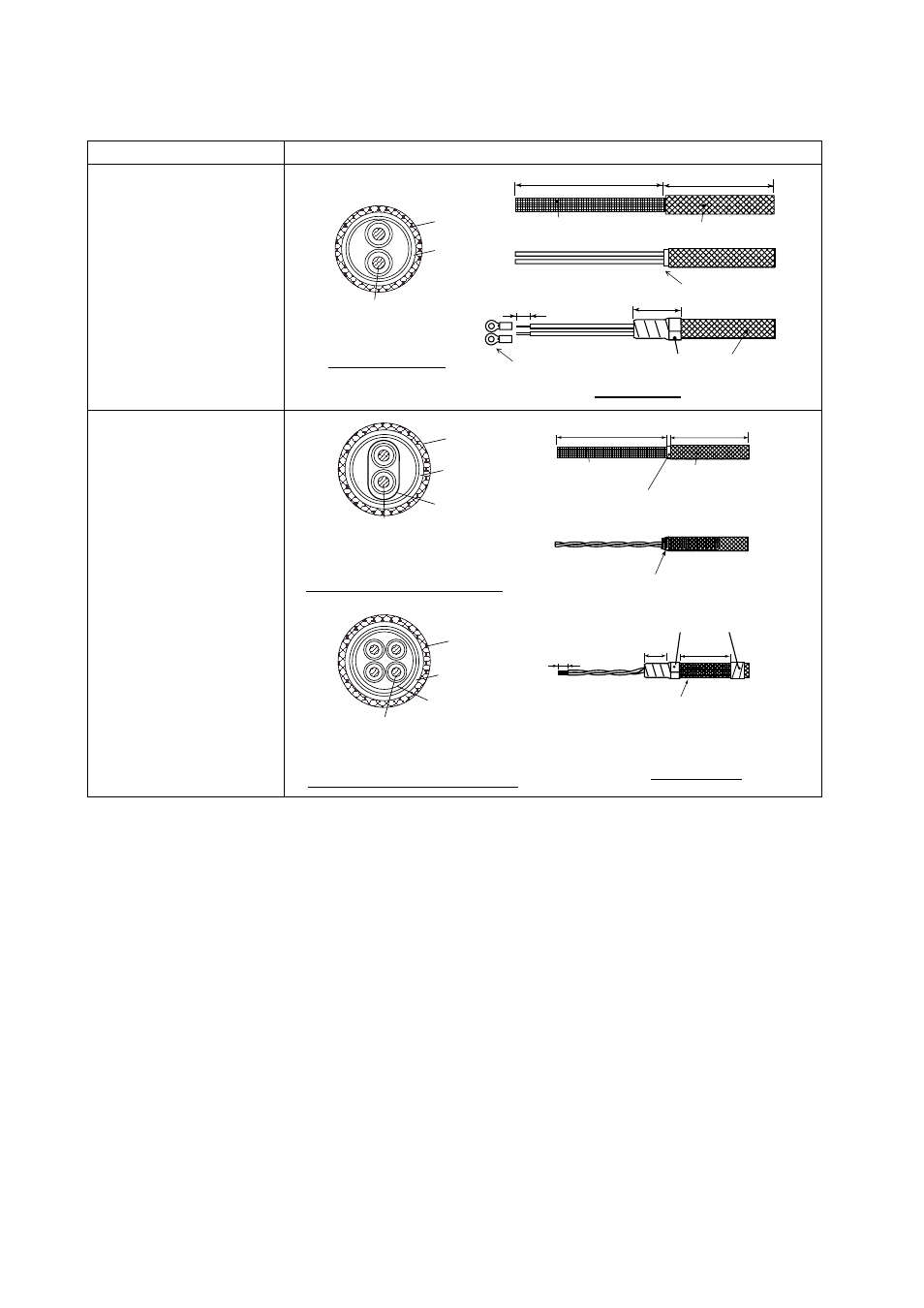

1.7.2 Fabrication of cables
Cable Sectional view, fabrication
Power cable
DPCY-1.5
(or equivalent)
Conductor
S = 1.5 mm
φ
= 1.56 mm
2
Armor
Sheath
φ
= 11.7 mm
SECTIONAL VIEW
50
6
Armor
Cut the sheath.
Vinyl tape
Sheath
15
FABRICATION
Crimp-on lug
FV1.25-5
50
Lay in clamp
where paint
was removed.
Cable for IEC 61162
format equipment (JIS
cable TTYCS-1 or
equivalent)
Cable for AD-10
format equipment
((JIS cable TTYCS-1Q
or equivalent)
FABRICATION
80
6
Remove paint
by 50 mm.
Vinyl tape
Shield
15 45
50
Cut vinyl sheath.
Expose core and fold back
shield onto cable.
Lay in clamp
where paint
was removed.
Conductor
S = 0.75 mm
φ
= 1.11 mm
2
Armor
Shield
Sheath
φ
= 10.1 mm
SECTIONAL VIEW (TTYCS-1)
Conductor
S = 0.75 mm
φ
= 1.11 mm
2
Armor
Shield
Sheath
φ
= 11.3 mm
SECTIONAL VIEW (TTYCS-1Q)
Note 1:
Attach labels (supplied) to cables to differentiate between them.
Note 2: A plastic sheet is placed across the cable glands of the processor unit to keep out
foreign material. Cut out holes in the plastic where cables are to be lead in.
