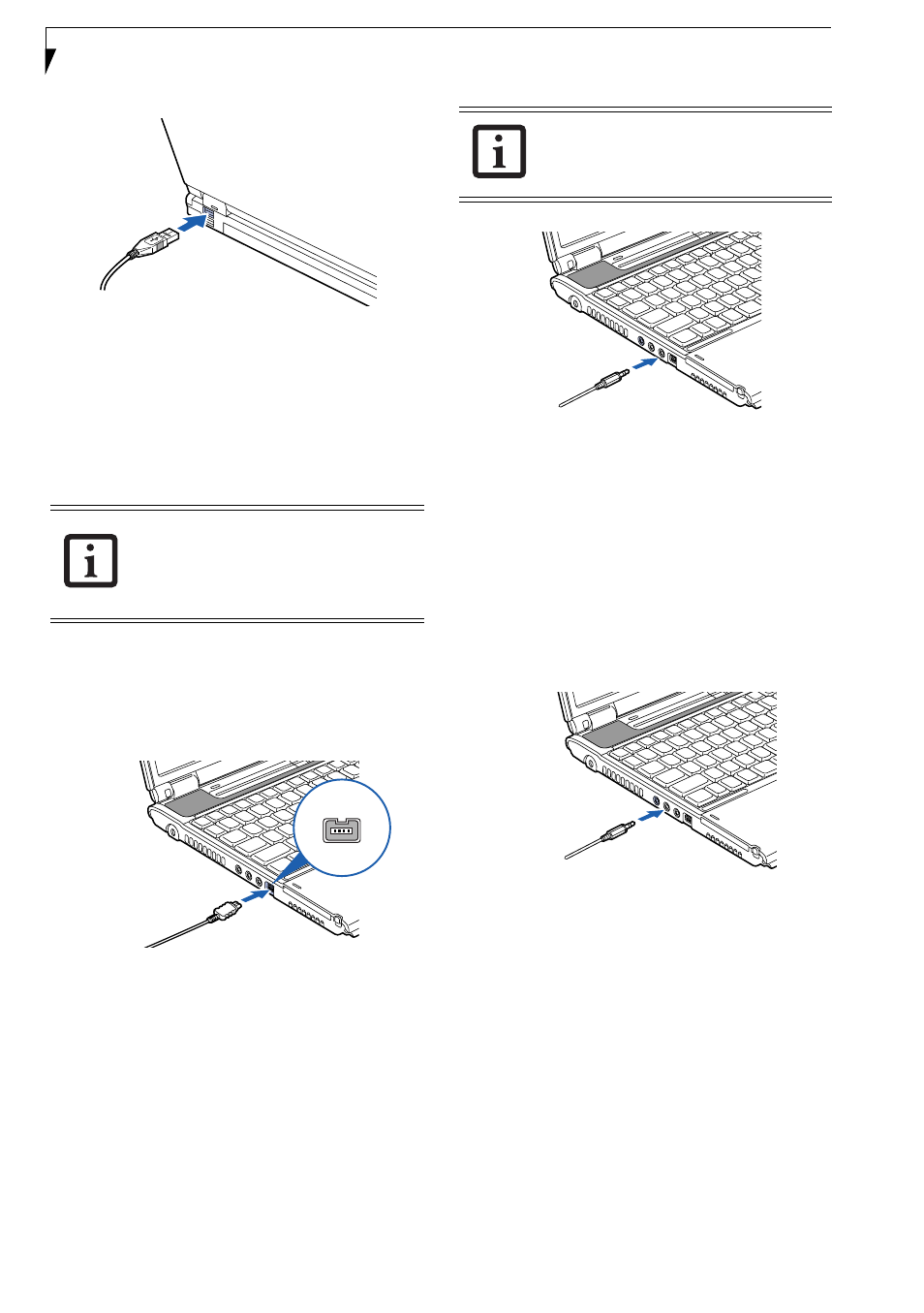

Figure 4-18. Connecting a USB Device
IEEE 1394 PORT
The 4-pin 1394 port allows you to connect digital
devices that are compliant with IEEE 1394 standard. The
IEEE 1394 standard is easy to use, connect, and discon-
nect. This port can allow up to 400 Mbps transfer rate. A
third-party application is required to operate your
digital device with the 1394 port
.
In order to connect a 1394 device, follow these steps:
1. Align the connector with the port opening.
2. Push the connector into the port until it is
seated.(Figure 4-19)
Figure 4-19. Connecting an IEEE 1394 Device
HEADPHONE JACK
The headphone jack (Figure 4-20) allows you to connect
stereo headphones or powered external speakers to your
notebook. Your headphones or speakers must be
equipped with a 1/8” (3.5 mm) stereo mini-plug.To
connect headphones or speakers follow these steps:
1. Align the connector with the port opening.
2. Push the connector into the port until it is seated .
Figure 4-20. Connecting Headphones
MICROPHONE JACK
The microphone jack allows you to connect an external
microphone. Your microphone must be equipped with a
1/8”(3.5 mm) stereo mini-plug in order to fit into the
microphone jack of your notebook. In order to connect
a microphone follow these steps: (Figure 4-21)
1. Align the connector with the port opening.
2. Push the connector into the port until it is
seated.
Figure 4-21. Connecting a Microphone
The 1394 port used in this system uses a
four-pin configuration. If you intend to
interface with devices which use a six-pin
configuration, you will need to purchase
an adapter.
If you plug headphones into the
headphone jack, you will disable the built-
in stereo speakers.
