Heat & Glo Fireplace 8000TVD - Manual (Page 10)

10

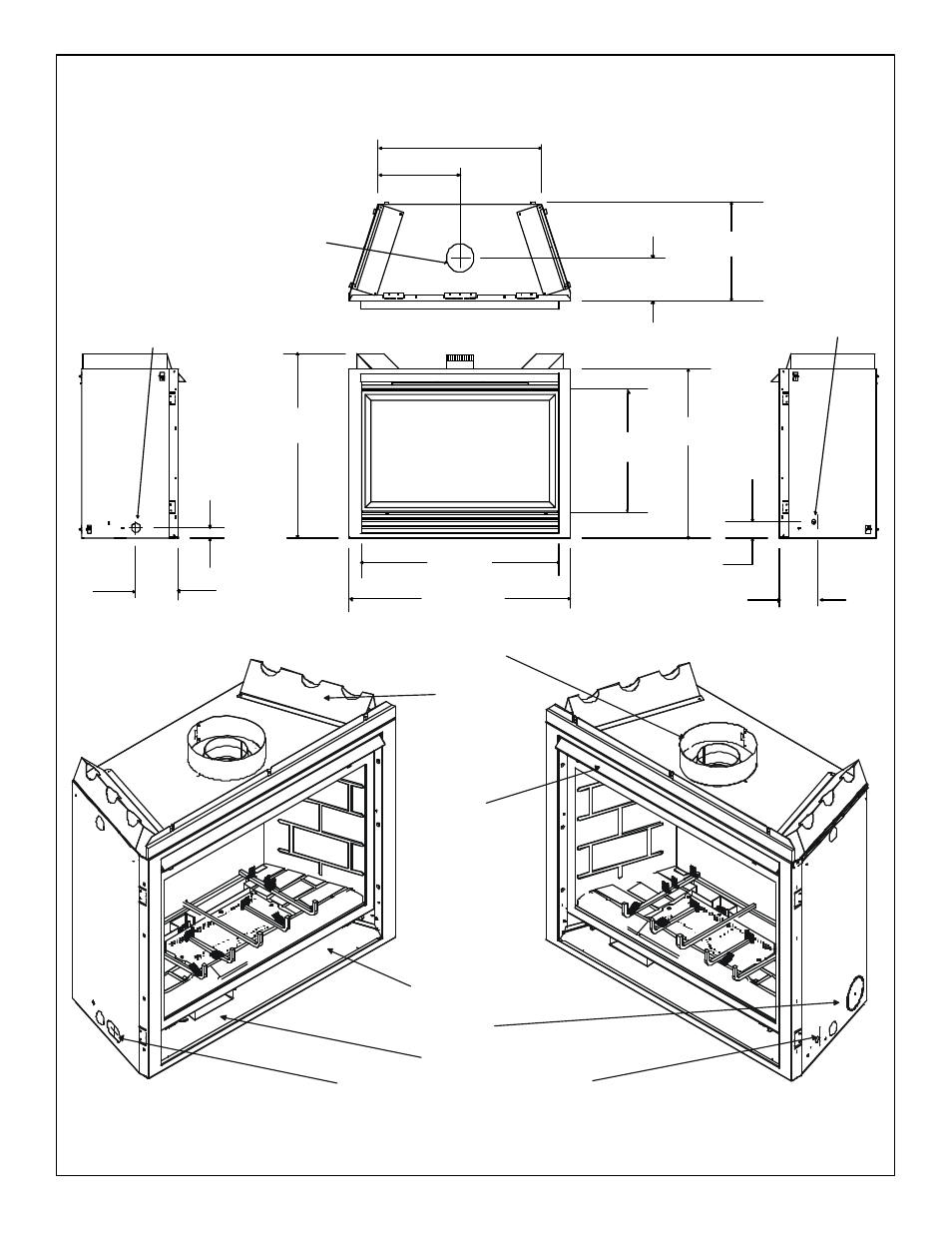

Figure 1. Diagram of 8000TVD
36 3/4”
(932mm)
26 7/8”
(681mm)
2 1/4”
(56mm)
40 3/8”
(1026mm)
9 1/8”
(233mm)
GAS LINE
ACCESS
43” (1091mm)
48 3/8” (1229mm)
3 1/2” (89mm)
8 3/8” (212mm)
ELECTRICAL
ACCESS
21 1/2”
(548mm)
9 1/2”
(241mm)
35 1/2” (902mm)
17 3/4” (450mm)
6” (152mm)
B-VENT
VENT COLLAR
STANDOFFS
HOOD
GAS ACCESS ELECTRICAL ACCESS
RATING PLATES
& LABELS
GAS CONTROLS
OUTSIDE AIR
