2.3 Check of the trip monitor contents

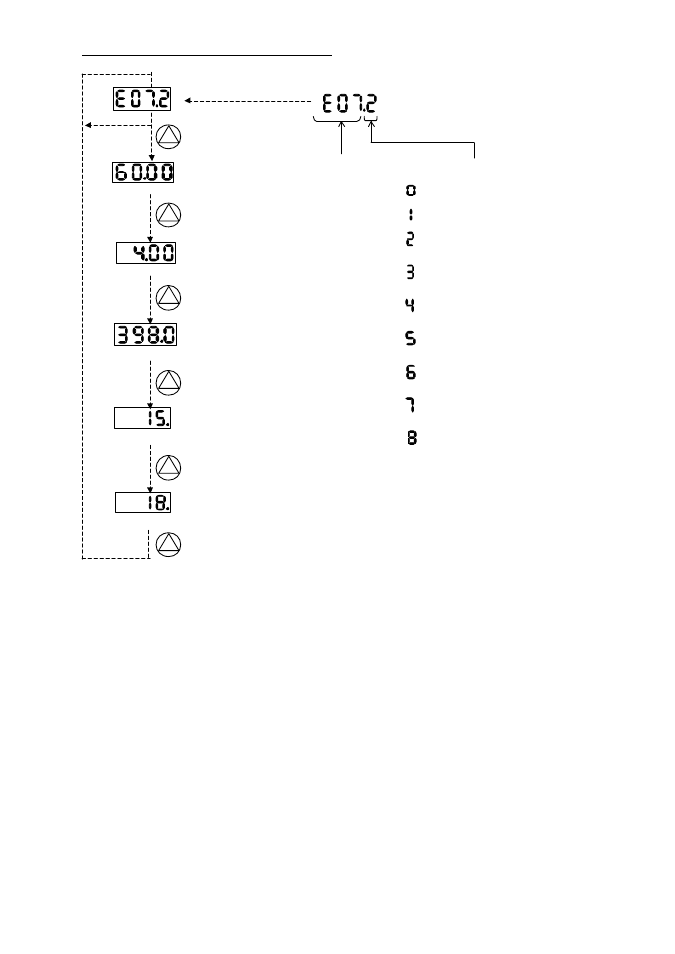

Inverter status at tripping

: While reset

: While standstill

: While deceleration

: While constant speed

: While acceleration

: Running command ON while 0Hz command.

: While start procedure

: While DC injection braking

: While overload limitation

(1) Trip cause / Display explanation

(2) Output frequency at trip (Hz)

(3) Output current at trip (A)

(4) DC bus voltage at trip (V)

(5) Accumulated running time until tripping (h)

(6) Accumulated power ON time until tripping (h)

Trip cause.

Refer to 4.4.1
