P/N 21154401 01/04 8
8
11
49
16
1. 2.
17
30
24
52
51
49
30
3.
49
8
55
54
54
57
44
57
55
4.
48
8
46
45
26
47
25

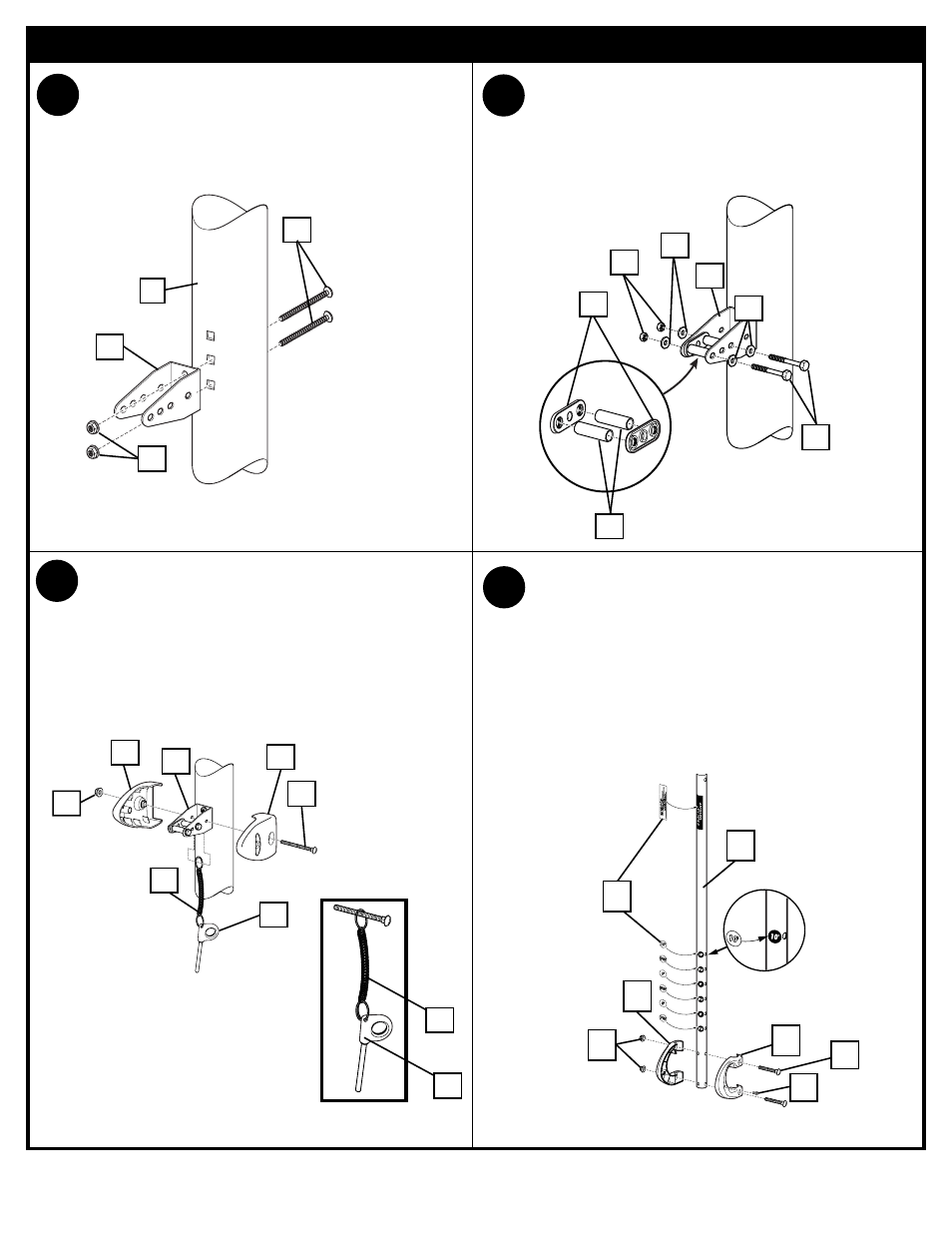

Install pole mount bracket (49) with carriage
bolts (16) as shown.
Tighten flange nuts (8) completely.
Attach spacers (51, 52) to pole mount
bracket (49) with bolts (24), washers (30),
and nuts (17) as shown. IMPORTANT!
Tighten until washers (30) no longer
move.
Attach covers (54) onto pole mount bracket
(49) with carriage bolt (44) and nut (8) as
shown. IMPORTANT! Loop end of pin
lanyard (57) over carriage bolt (44) during
this assembly. NOTE: Assemble lanyard
(57) to locking pin (55) as shown.
Apply logo and height indicator labels (48) to
adjustment rod (47) as shown.
Attach handle parts (45, 46) to adjustment
rod (47) with screw (26), carriage bolts (25),
and flange nuts (8) as shown. NOTE: Holes
in adjustment rod allow for either rear access
or side access.
ELEVATOR ASSEMBLY - Corner Location 1
