Correctly identify each pole section.
Poles have an identification sticker
that will be used as a reference point
in the next step.
ONLY THE TOP POLE SECTION
(50) IS USED IN THIS ASSEMBLY.

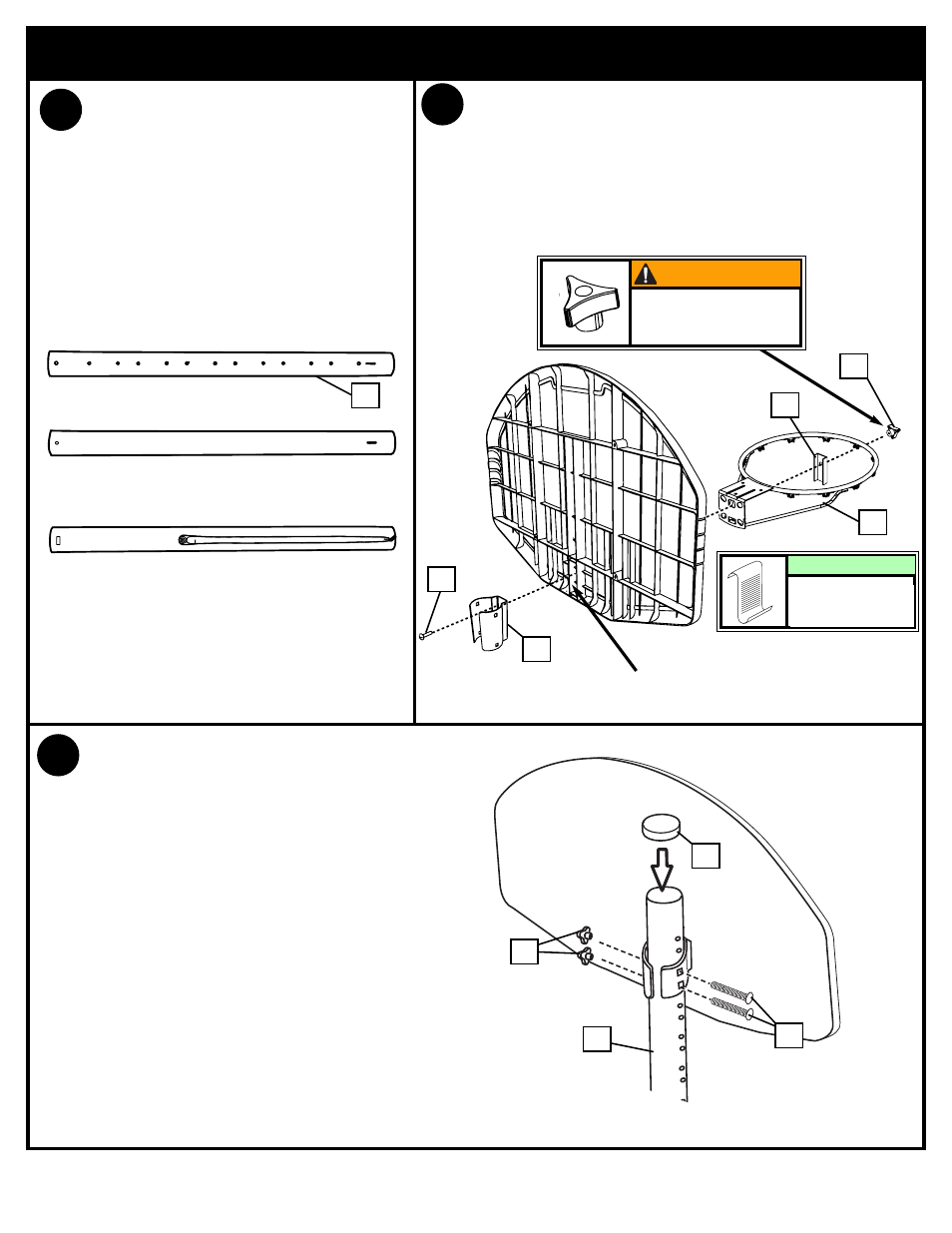

FAN MOLDED PLASTIC BOARD ASSEMBLY - Corner Location 3.
Pole bracket will need to be lightly pressed into
backboard ribbing. Be sure to press completely into
place. Attach rim(58) to backboard and pole bracket
(53) with knob (62), reinforcement bracket (61), and
carriage bolt (60) as shown. Tighten knob
completely.
PRESS BRACKET (20)
INTO PLACE HERE
60
62
61
53
KNOB MUST BE TIGHTENED
COMPLETELY AND CHECKED
FOR TIGHTNESS BEFORE
EACH USE.
WARNING!
BOARD STYLE
MAY VARY
NOTE:
58
50 TOP
MIDDLE
BOTTOM
Attach board assembly to pole with carriage
bolts (63) and knobs (62) as shown. Install pole
cap (41) as shown.
62
63
41
1.
2.
3.
50
