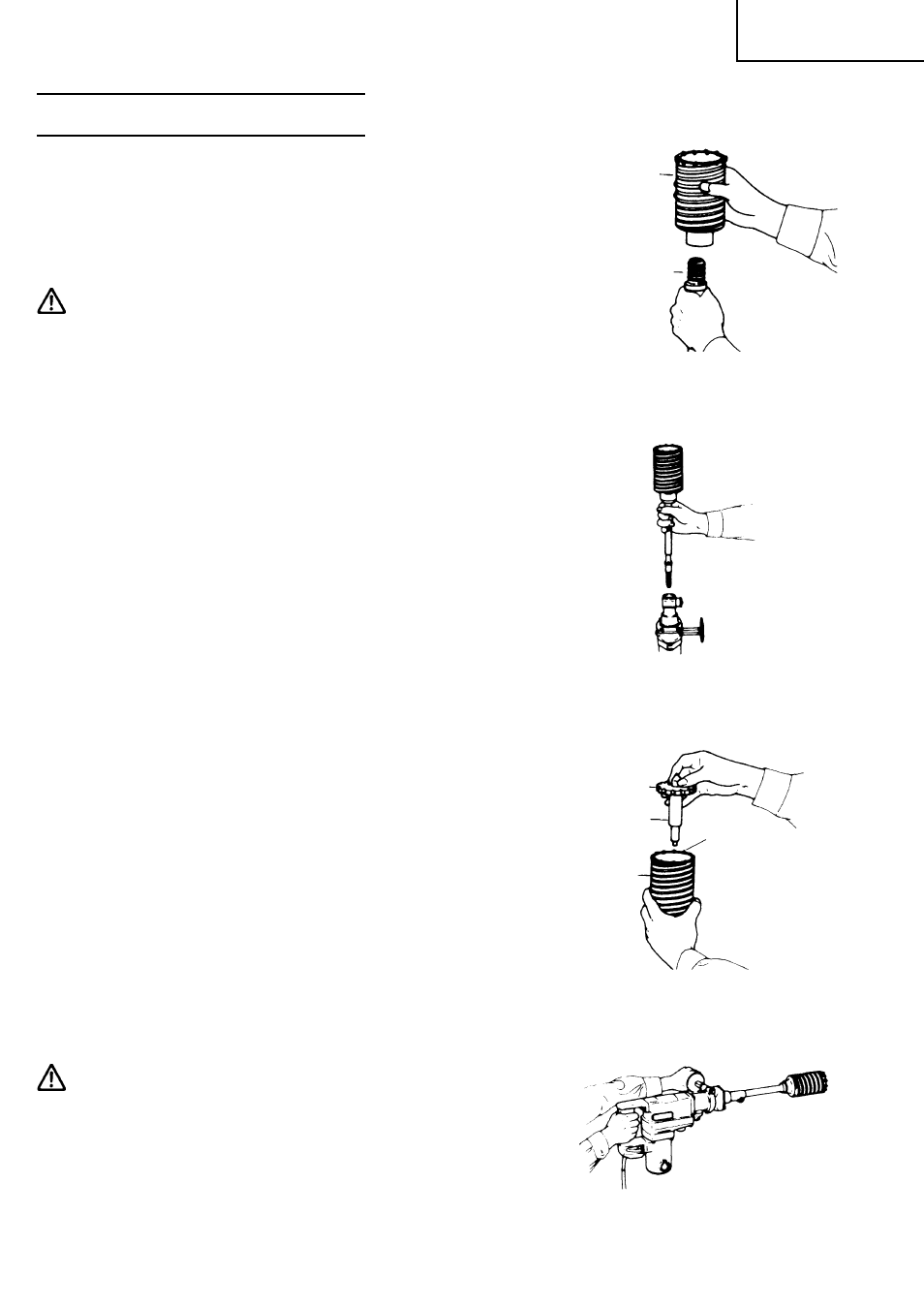

HOW TO USE THE CORE BIT
When boring penetrating large hole use the core
bit. At that time use with the center pin and the
core bit shank provided as optional accessories.
1. Mounting
CAUTION:
⅜ Be sure to turn power OFF and disconnect the
plug from the receptacle.
(1) Mount the core bit to the core bit shank.
(Fig. 10)
Lubricate the thread of the core bit shank to
facilitate disassembly.
(2) Mount the core bit shank to the rotary hammer.
(Fig. 11)
(3) Insert the center pin into the guide plate until it
stops.
(4) Engage the guide plate with the core bit, and
turn the guide plate to left or right so that it
does not fall even if it faces downward.
(Fig. 12)
2. How to bore (Fig. 13)
(1) Connect the plug to the receptacle.
(2) A spring is installed in the center pin. Push it
lightly to the wall or the floor straight. Connect
all over the surface of the core bit tip and start
operating.
(3) When boring about 3/16" (5 mm) in depth the
position of the hole will establish. Bore after
that removing the center pin and the guide plate
from core bit.
(4) Application of excessive force will not only
expedite the work, but will deteriorate the tip
edge of the drill bit, resulting in reduced service
life of the rotary hammer.
CAUTION:
⅜ When removing the center pin and the guide
plate, turn OFF the switch and disconnect the
plug from the receptacle.
Fig. 10
Core Bit
Core Bit Shank
Fig. 11
Fig. 13
Fig. 12
Center Pin
Core Bit
Core Bit Tip
Guide Plate
