HOW TO USE

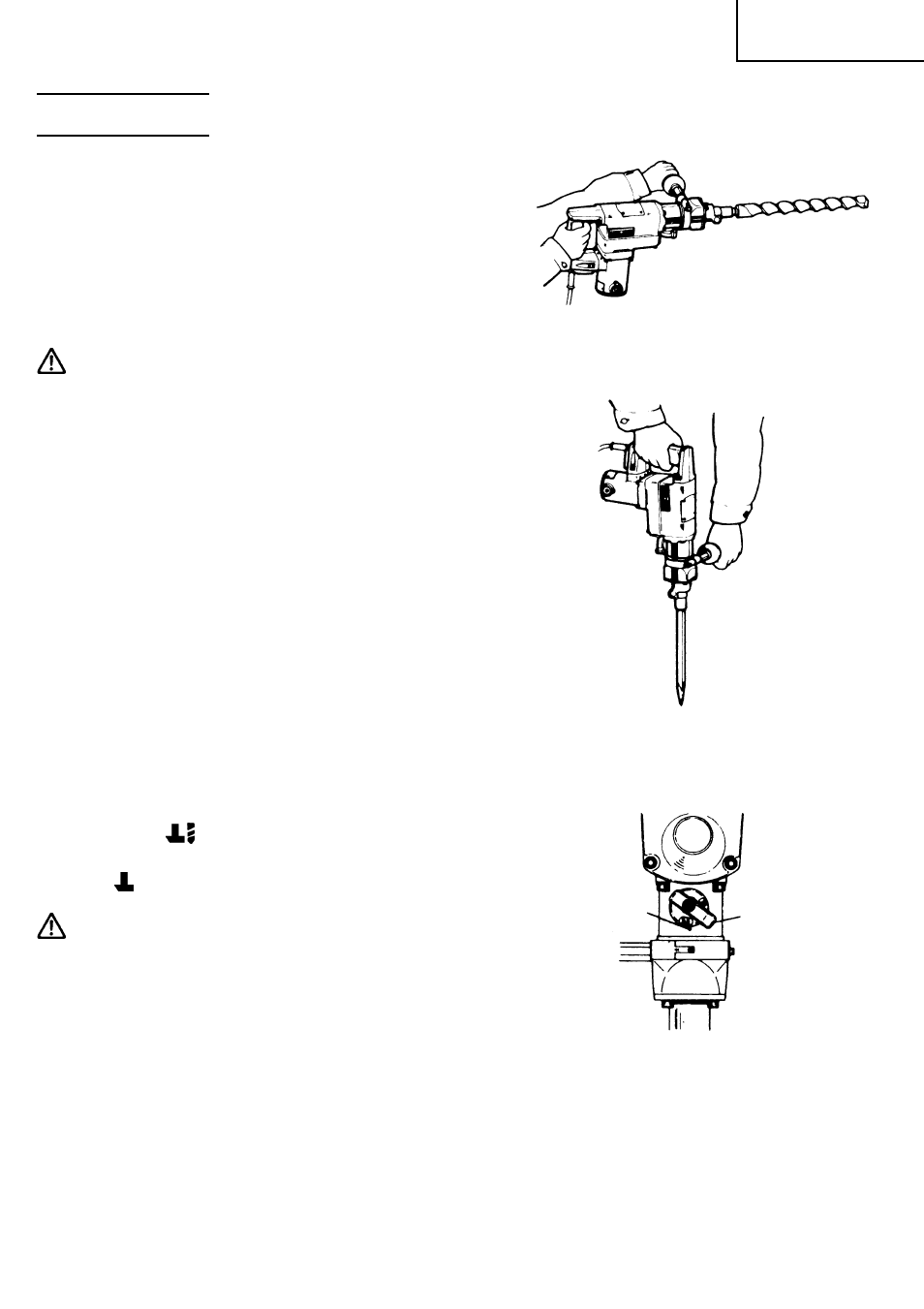

1. How to drill holes (Fig. 4)
(1) Pull the switch trigger after applying the drill
bit tip to the drilling position.
(2) It is unnecessary to forcibly press the rotary
hammer main body. It is sufficient to slightly
press the rotary hammer to an extent that clips
are freely discharged.
CAUTION:
Although this machine is equipped with a
safety clutch, if the drill bit becomes bound in
concrete or other material, the resultant
stoppage of the drill bit could cause the
machine body to turn in reaction. Ensure that
the main handle and side handle are gripped
firmly during operation.
2. How to chisel or crush (Fig. 5)
By applying the tool tip to the chiseling or
crushing position, operate the rotary hammer
by utilizing its empty weight. Forcible pressing
or thrusting is unnecessary.
3. How to select rotation-hammering and
hammering. (Fig. 6)
(1) Rotation-hammering
Rotate the selector lever counter-clockwise and
align with
mark.
(2) Rotate the selector lever clockwise and align
with .
CAUTION:
⅜ Turning the selector lever during motor rotation
will rotate the tool accidentally. The selector
lever should only be turned when the motor is
stopped.
Fig. 4
Fig. 5
Selector
Lever
ID Mark
Fig. 6
