SPECIFICATIONS
Motor Single-Phase, Series Commutator Motor
Power Source Single-Phase, 115V AC 60Hz
Current 8A
Capacity Drill Bit: 1-1/2" (38 mm)
Core Bit: 4-1/8" (105 mm)
No-Load Speed 380/min
Full-load Impact Rate 2800/min.
Weight 17 lbs (7.7 kg)
OPERATION AND MAINTENANCE
NOTE:
The information contained in this Instruction Manual is designed to assist you in the safe
operation and maintenance of the power tool.
Some illustrations in this Instruction Manual may show details or attachments that differ
from those on your own power tool

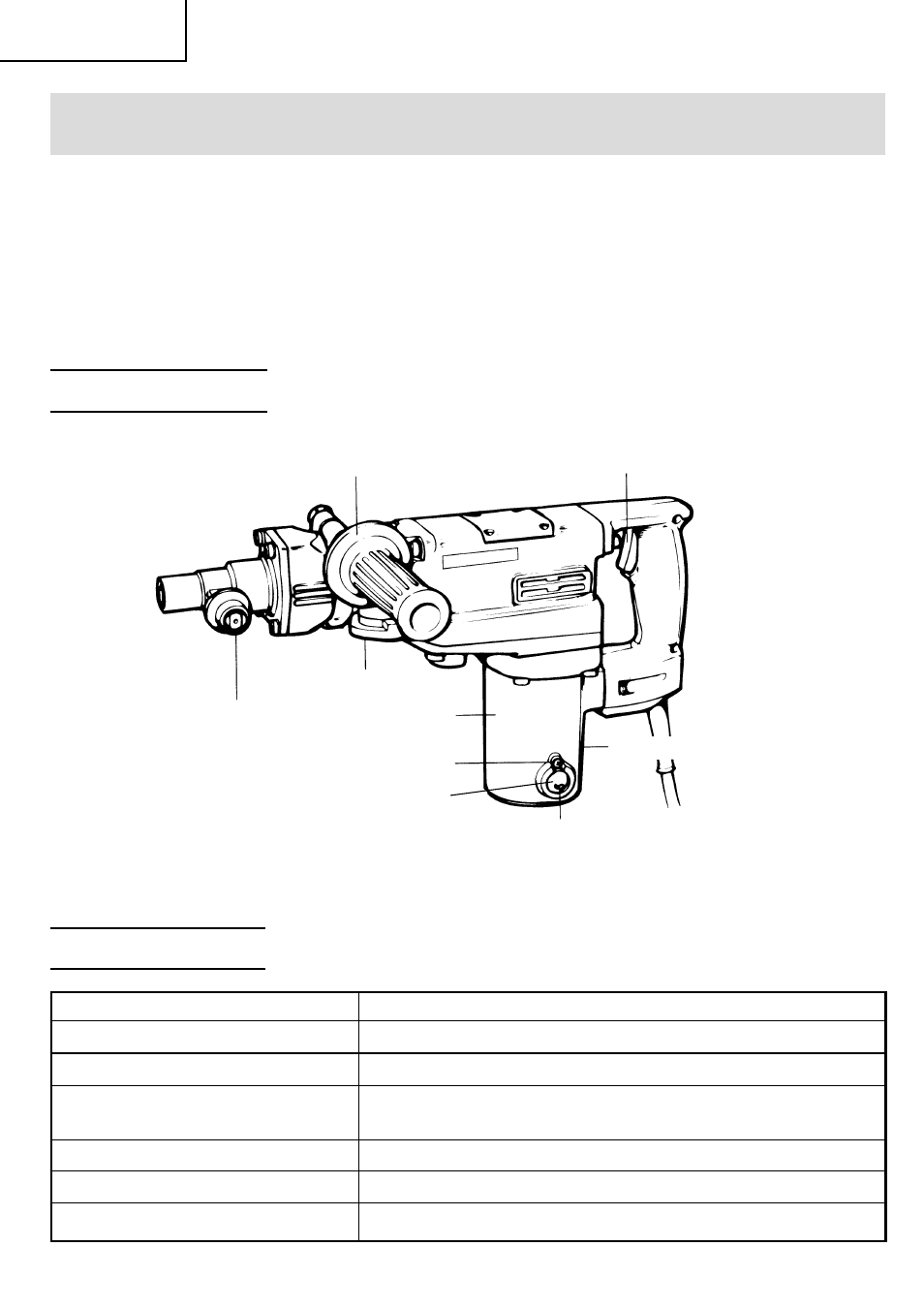

NAME OF PARTS
Fig. 1
Housing
Switch trigger
Side handle
Nameplate
Selector lever
Brush cap
(Under the cap cover)
Tool holder
Cap cover
Set screw
