CONTROlS
Husqvarna- 17
This operator’s manual describes the Husqvarna Zero
Turn Rider. The rider is fitted with either a Kohler or
Briggs & Stratton four-stroke overhead valve engine
developing 19-24 horse power*.

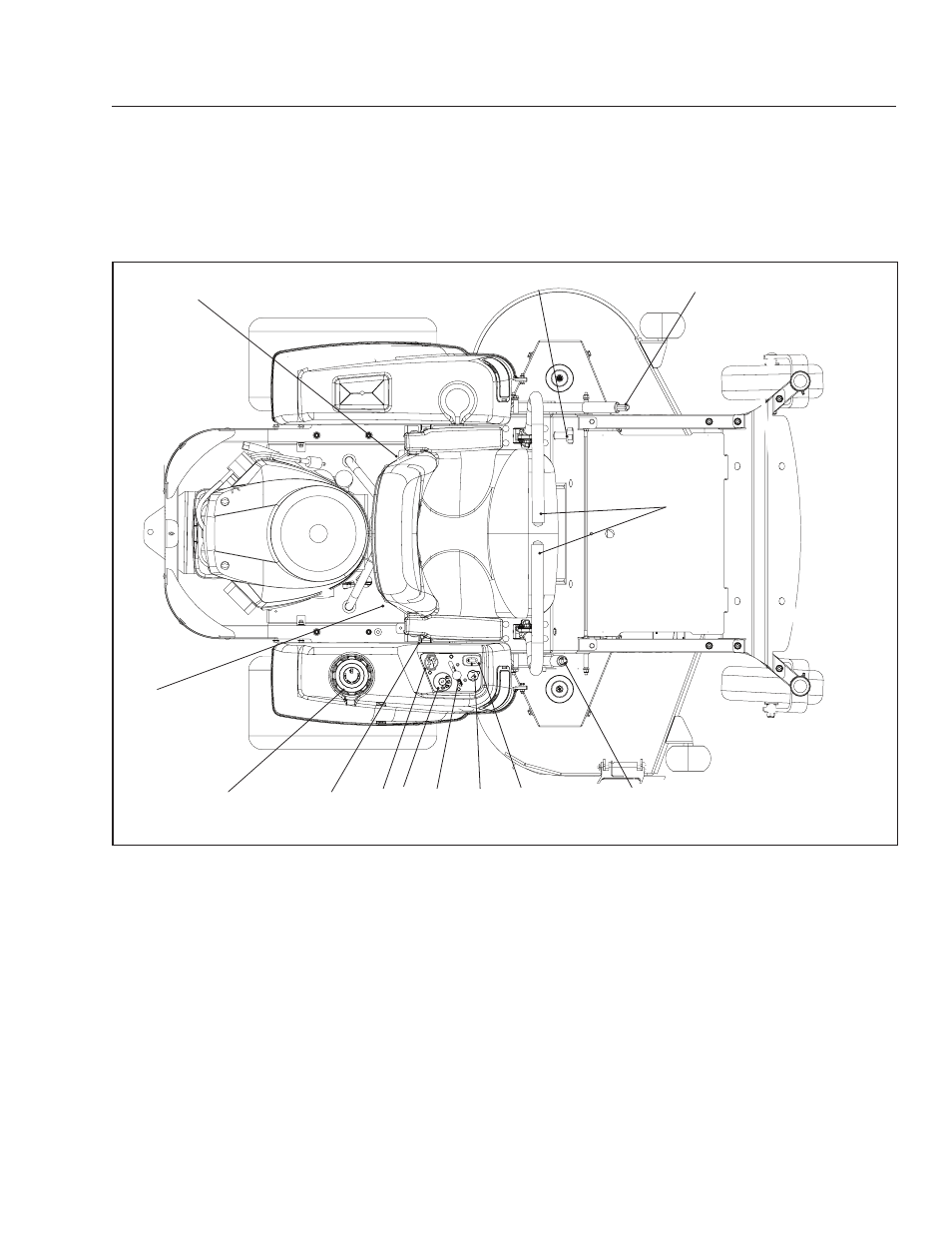

Control Locations
Motion control levers 1.
Parking brake 2.
Throttle control 3.
Blade switch 4.
Ignition switch 5.
Choke control 6.
fuses 7.
1
2
6 10
9
4 5 12
7
3 11
fuel tank cap 8.
fuel shut off valve 9.
Deck lift 10.
Seat adjustment lever 11.
Hour meter 12.
Tracking adjustment 13.
Transmission from the engine is made via a belt-driven
hydraulic pumps. Using the left and right steering
controls, the flow is regulated and thereby the direction
and speed.
*As rated by the engine manufacturer.
