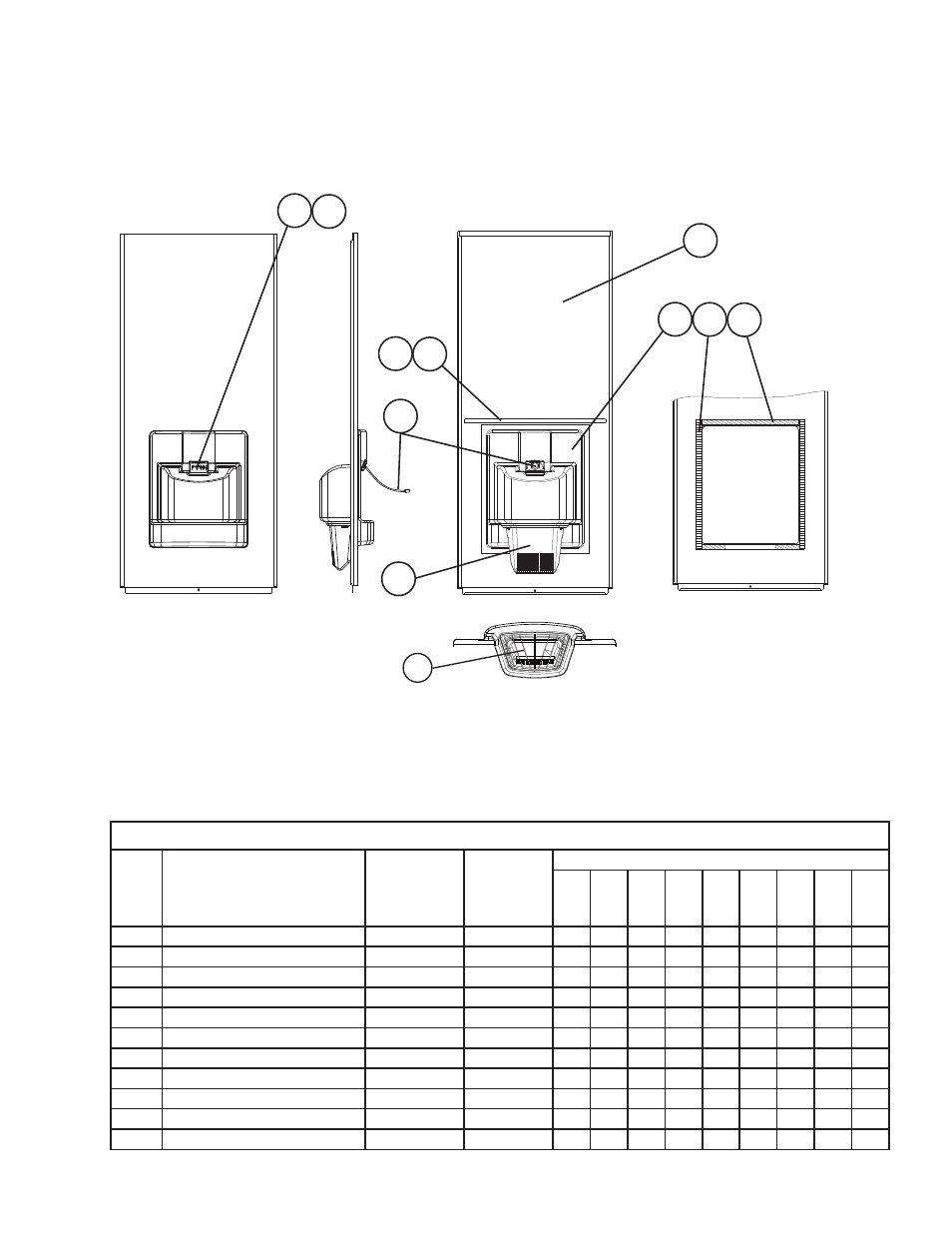

G. Front Panel Assembly
DKM-500BAH, DKM-500BWH
R-0 to A-6
Title: G. Front Panel Assembly Model: DKM-500BAH, DKM-500BWH
Index
No. Description
Material or
Model Number Part Number
Required Number
R-0
to
A-6
1 Front Panel (A) - 1A1077-01 1
1a Foam Tape L=640 4A2460L01 2
1b Foam Tape L=484 4A2460L01 2
2 Front Panel (B) SS 1A1076-01 1
3 Chute - 2A3448-01 1
4 Grill - 3A3485G01 1
5 Push Switch - 460111-01 1
6 Push Switch Button - 3A3871-01 1
6a T2 Screw 4×20, SS 7P32-0420 1
7 Front Panel Brace SS 4A4086-01 1
7a Foam Tape L=700 4A2460L01 1
1a
2
1
5
7 7a
6a
3
6
1b
