1.2
Code 308A 312A
Engine Briggs & Stratton Sprint 40 Briggs & Stratton Sprint 40
Engine type 10D902-0155-B1 10D982-0164-B1
Engine/Cutterbar speed 2900 rpm 2900 rpm
Fuel type Unleaded petrol Unleaded petrol
Fuel capacity 1.0 litres 1.0 litres
Oil type SAE 30 engine oil SAE 30 engine oil
Oil sump capacity 0.6 litres 0.6 litres
Cutting width 410mm 410mm
Cutting height 12 - 65mm 12 - 65mm
Overall dimensions 1,340 x 451 x 1,041mm 1,340 x 451 x 1,041mm
Dry Weight 24.5 Kg 28.3 Kg

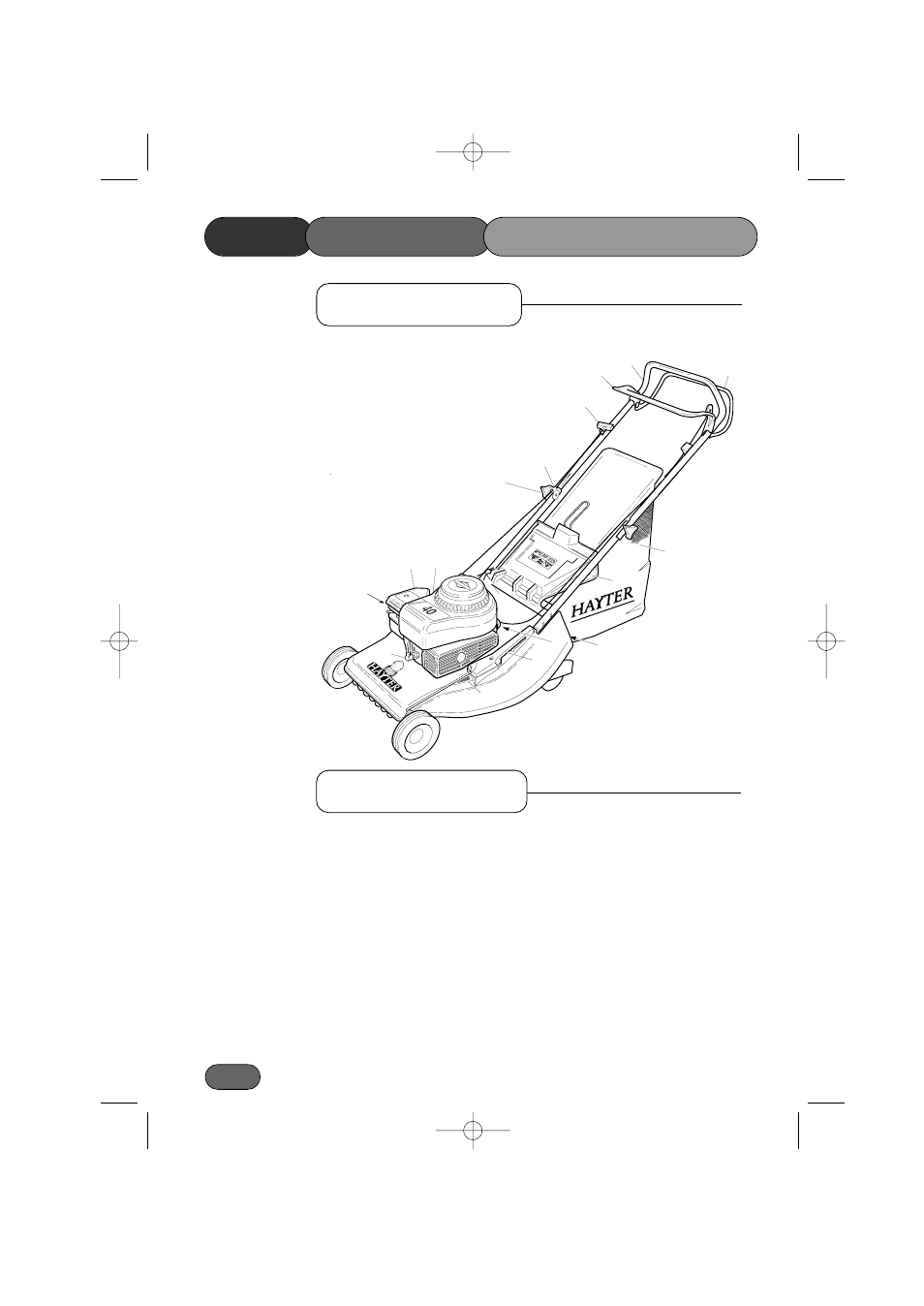

1 Handlebar.
2 Ground Drive Clutch Lever (312 Only).
3 Grassbag Assembly.
4 Rear Deflector.
5 Serial Number Decal.
6 Oil Filler Cap and Dipstick.
7 Height of Cut Adjuster.
8 Spark Plug Lead.
9 Primer Bulb.
10 Fuel Filler Cap.
11 Handlebar Securing Knob.
12 Rope Guide.
13 Engine Start-Grip.
14 Engine Stop lever.
15 Air Cleaner.
16 Height of Cut Indicator.
1D30800B
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
15
Specifications
