HYUNDAI Digital LCD TV
GENERAL INFORMA
TION

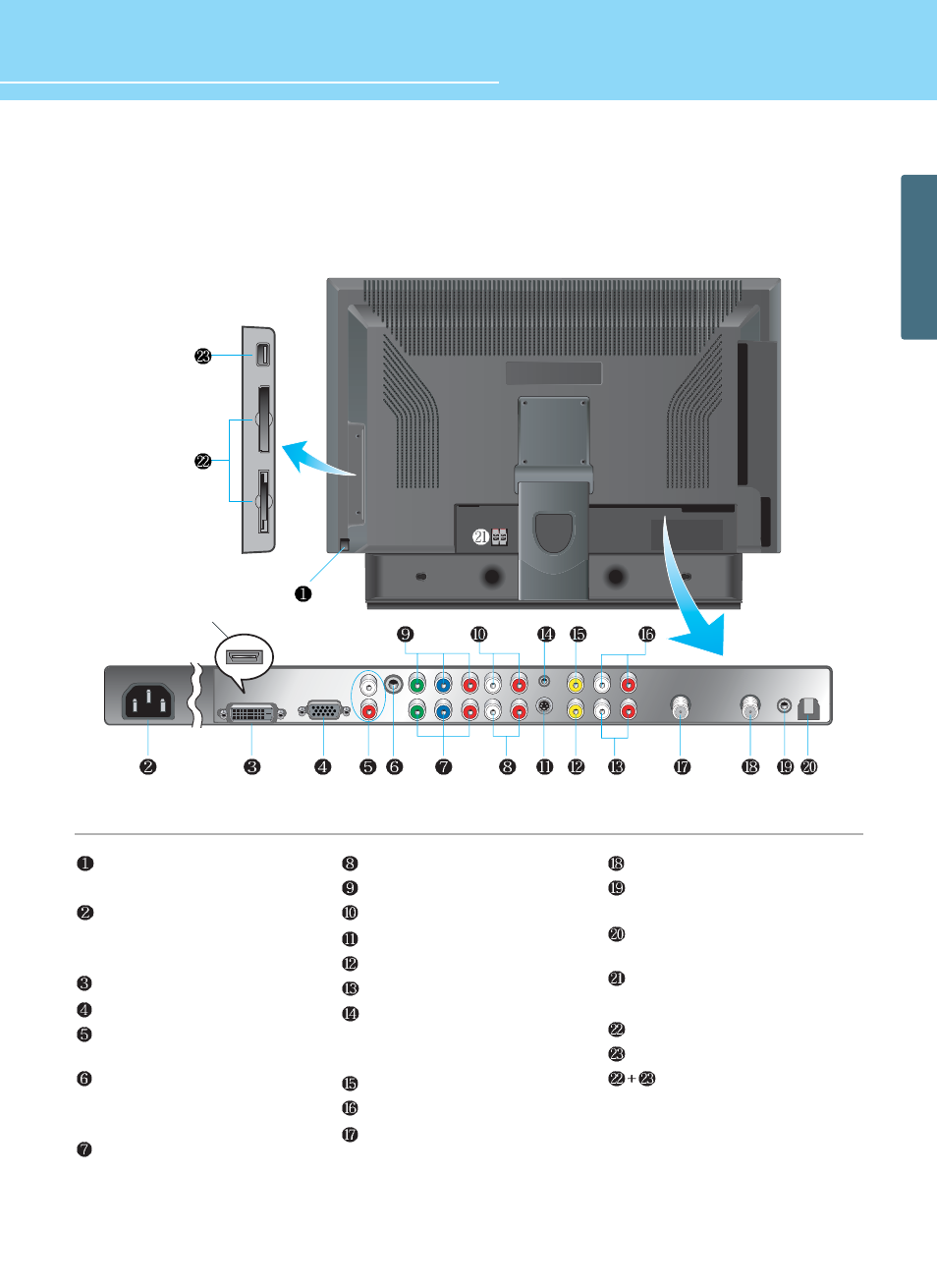

Rear View
HDMI Option
Power switch
Use this switch to turn on/off power.
Power (AC) input terminal
Connect the power cord to this
terminal.
HDMI (or DVI) Video input terminal
D-SUB input terminal
HDMI (or DVI)/D-SUB Audio input
terminal
Subwoofer output terminal
When producing bass, connect the
cable to the woofer with *AMP.
Component 2 Video input terminal
Component 2 Audio input terminal
Component 1 Video input terminal
Component 1 Audio input terminal
S-Video input terminal
Video input terminal
S-Video/Video Audio input terminal
RS-232 input terminal
Connect to the RS-232 terminal of a
PC to check its service.
Monitor Video output terminal
Monitor Audio output terminal
Antenna 1 (Analog/DTV) input
terminal
Antenna 2 (DTV) input terminal
Digital Audio output terminal for
coaxial cable
SPDF optical digital audio output
terminal
Speaker terminal
Connect your speaker jacks
Memory Card Slot
USB Input Terminal
For Q320 Model only
