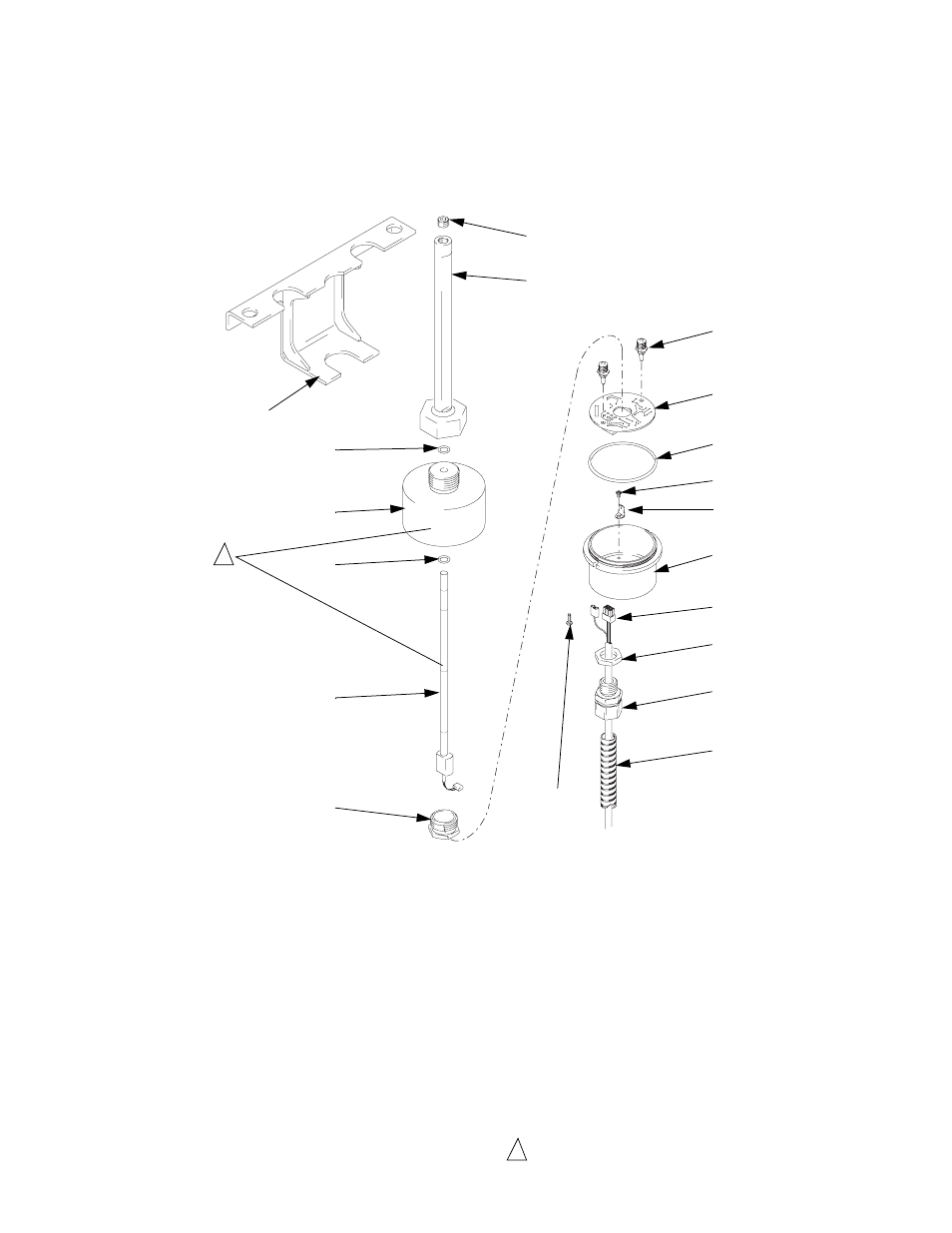

Parts

309521J

29

Sensor 245825

Item 7, page 21

*

Parts included in kit 246345.

†

Parts included in kit 246344.

★

Order length needed from distributor.

704†

703†

720†

710*

709*

702*

719*

713*

711*

716†

712†

†714

715

†701

†707

†706

†708

705*

721*

1

Ref.
No.

Part No. Description

Qty.

701† 196280 CAP

1

702*

15A818 COVER

1

703† 243500 BOARD

1

704† 115925 SPACER

2

705*

117331 CABLE

1

706† 115917 SENSOR

1

707† 110004 O-RING, PTFE

1

708† 196289 CAP

1

709*

116024 TAB TERMINAL

1

710*

101855 SCREW; 4-24 UNC

1

711*

112546 SCREW; 4-40 taptite

2

712† 15A817 NUT; 1/8 npt

1

713*

117569 FITTING; 3/8 npt x 5/16” conduit

2

714† 154741 O-RING, buna-n

1

715

245831 BRACKET

1

716† 104765 PLUG; 18-27 ptf

1

719*

117586 LOCKNUT; 3/8-18 npt

2

720† C20272 O-RING; fluoroelastomer

1

721*

117582 CONDUIT, 5 ft. (1.5 m)

★

Ref.
No.

Part No. Description

Qty.

Calibration label.

1
