Parts
309521J 25

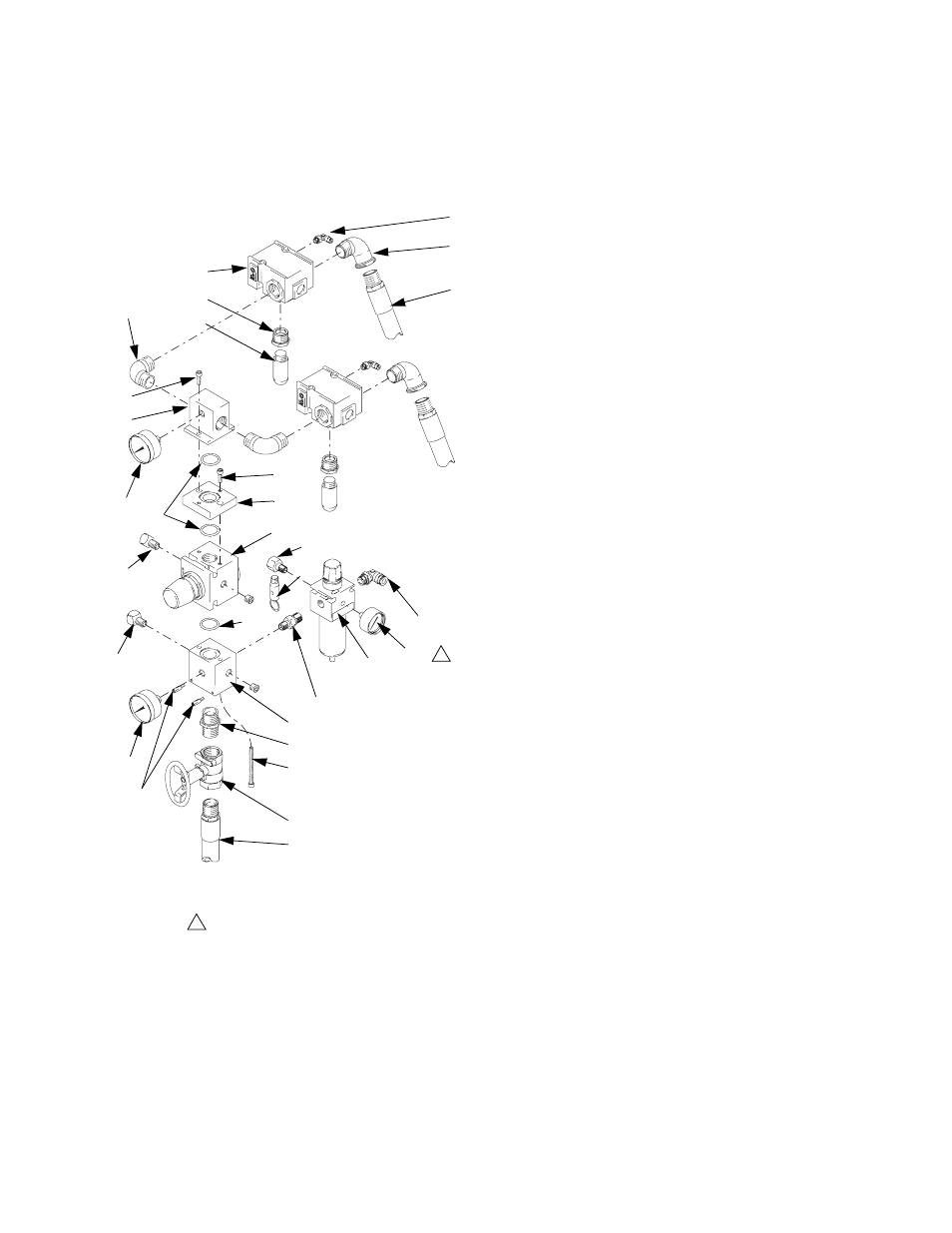

Pump Air Manifold 245802
Item 5, page 21
516
515
501
523
522
502
504
503 513
505
504
506
507
508
521
513
524
503
519
518
517
510
511
514
512
526
525
520
TI2295B
527
528
100 psi (0.7 MPa, 7 bar) setting. 1
1
Ref.
No. Part
No. Description Qty.
501 C59752 VALVE, 3-way 2
502 108307 ELBOW; 3/4 npt 2
503 101689 PRESSURE GAUGE 2
504 112166 SCREW; 1/4-20 UNC 4
505 15A820 MANIFOLD 1
506 15A821 PLATE, direction 1
507 117332 REGULATOR 1
508 100840 ELBOW; 1/4 npt 1
510 15A819 MANIFOLD BLOCK 1
511 160032 NIPPLE; 3/4 npt 1
512 117346 SHUTOFF VALVE, vented 1
513 117364 O-RING, nitrile 3
514 108849 SCREW; 1/4-20 UNC 2
515 15B554 HOSE; 3/4 npt; 4 ft. (1.2 m) 2
516 100549 ELBOW, 90°; 3/4 npt 2
517 165198 NIPPLE; 1/4 x 3/8 npt 1
518 119644 FILTER; 3/8 npt; 5 micron 1
519 114316 ELBOW, swivel; 3/8 npt 1
520 114151 ELBOW, swivel; 1/8 npt x 5/32” (4
mm) tube
2
521 100721 PLUG; 1/4-18 nptf 3
522 512912 MUFFLER; 1/2 npt 2
523 100896 BUSHING; 3/4 x 1/2 npt 2
524 113498 SAFETY RELIEF VALVE; 110 psi
(0.8 MPa, 8 bar)
1
525 117443 STANDOFF, aluminum, 8-32 UNC 2
526 240900 HOSE; 3/4 npt; 2.5 ft. (0.76 m) 1
527 158962 ELBOW, 1/8 (m) x 1/4 (f) 1
528 113911 GUAGE, 1/8, air 1
