Parts
24 309521J

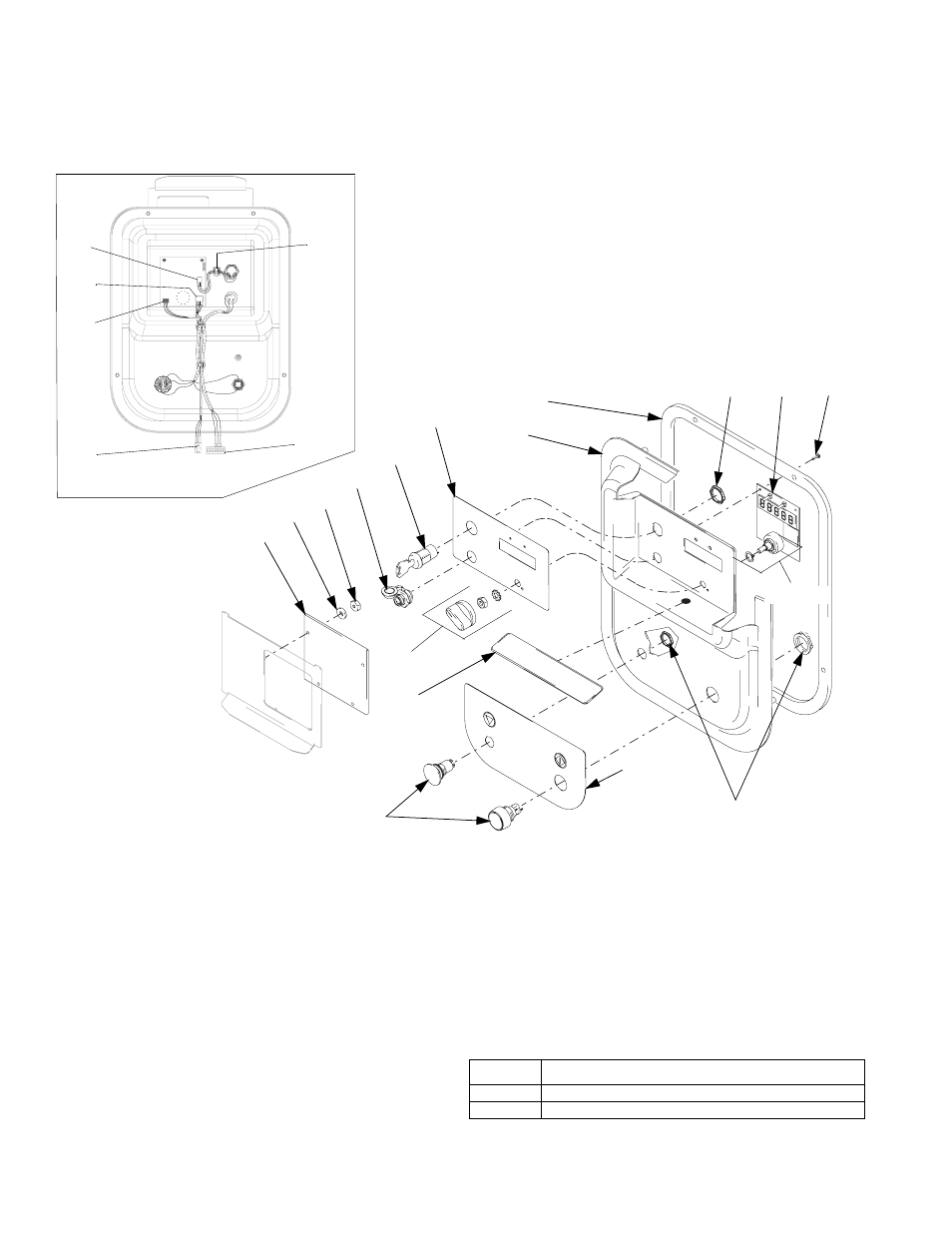

User Interface 245804
Item 4, page 21
‡ Not available for order from Graco.
* Alarm Code Labels
Item 409, English provided. To order other languages:
404
401
411
407
406
413
412
405,419
409
403
410
Ref. 405
Ref. 407
Ref. 403
Back View
414, Ref.
407
Ref.
403
Ref.
416
415
416
Ref.
406
418
15A804
15A806
Ref.
No.
Part No. Description Qty.
401‡ COVER 1
403 15A851 WIRE HARNESS, start/stop 1
404 15A801 GASKET 1
405 15C335 KNOB 1
406 15A850 WIRE HARNESS, data port 1
407 15A852 WIRE HARNESS, key switch 1
409* LABEL, alarm code 1
410 245706 CIRCUIT BOARD 1
411‡ SCREW; 4-40 2
412 15A856 DISPLAY PANEL 1
413‡ NUT; 4-40 4
414‡ MOUNT 3
415‡ STRAP 3
416 15A854 WIRE HARNESS, display 1
418‡ WASHER 4
419 107232 SET SCREW 1
Part No. Languages
15B843 Chinese, Finnish, Portuguese, Greek, Swedish, Italian
15B844 English, Spanish, French, German, Korean, Japanese
Ref.
No.
Part No. Description Qty.
