C-VS-1800-ESC-1_INST_1-08

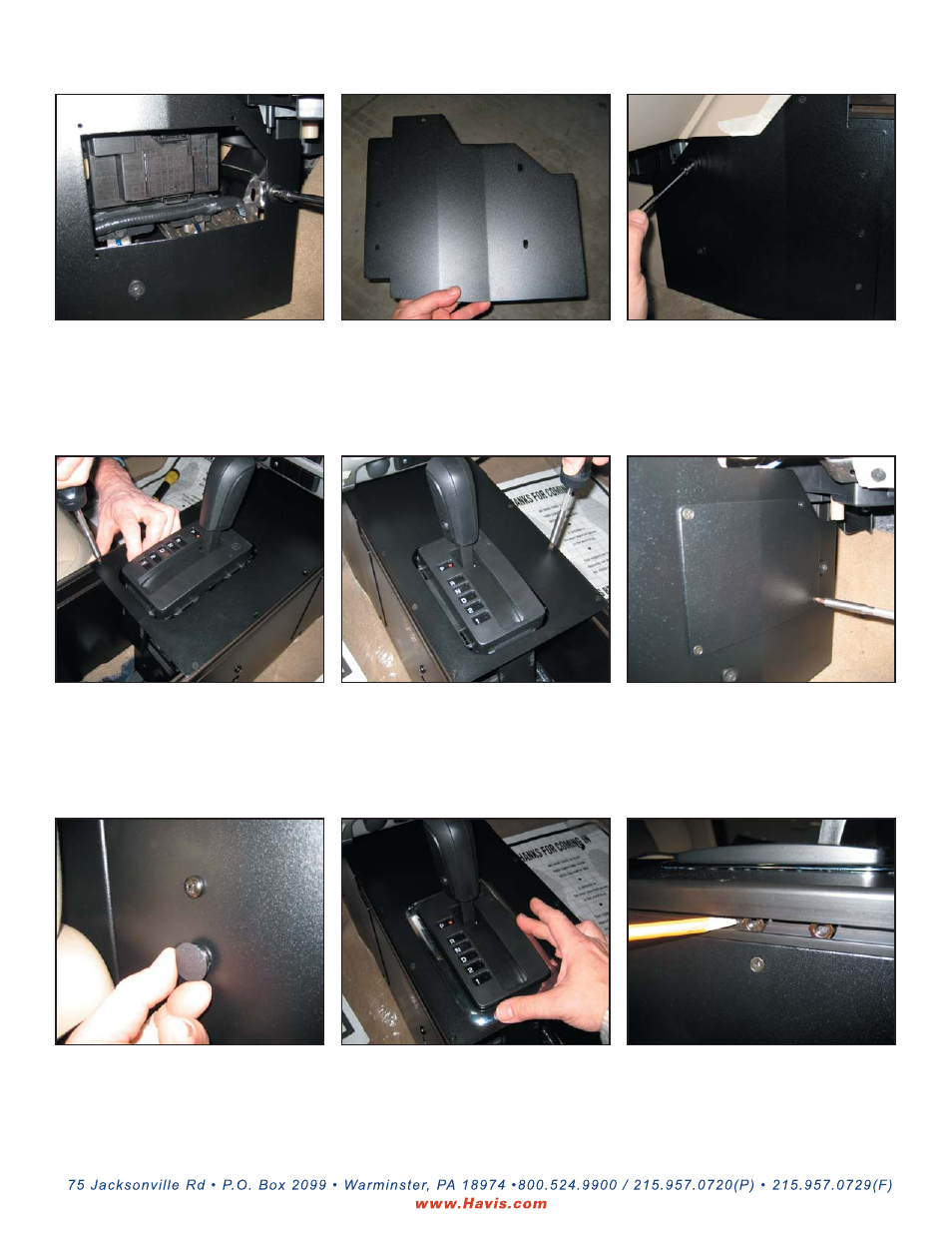

Attach fi ller panel to OEM mounts
with OEM hardware
(7mm socket)
Attach same as passenger side
panel
Driver side fi ller panel
Insert 3/4” plugs in “Z” bracket
holes
1/4” nuts for side mount
accessories
(i.e. TCB-7, Mic-clip brackets, etc)
Reattach trim bezel
Make sure top plate is evenly
spaced to allow trim bezel to snap
back in.
Attach fuse panel cover
(#8 x 1/4” SMS)
Attach plate with #8 x 1/4” fl at
head sheet metal screws
4
